BATTERY

HEADLIGHT FOR SUZUKI QUADRACER 450 2006

TAIL LIGHT (E33) REFER TO FIG.30(E- 8) FOR E28

Item numbers

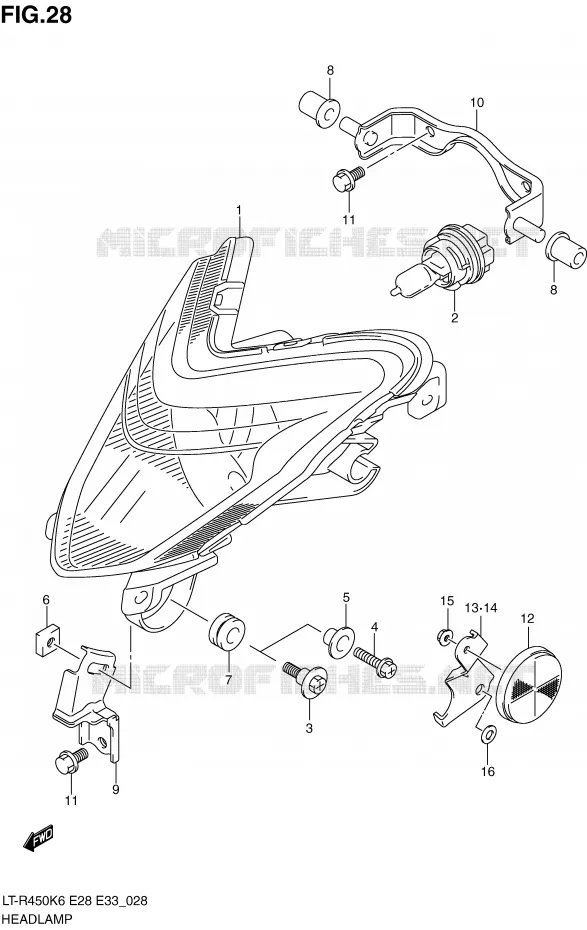

HEADLIGHT Suzuki QUAD 450 QUADRACER 2006 LT-R450K6(E28/E33)
1
2
3
4
5
6
7
8
8
9
10
11
11
12
12
13
14
15
16
1
HEADLAMP ASSY

35100-45G01-999   3510045G01999

3510045G01999

Unit Price

2
BULB(12V65W, H9)
BULB (12V40/40W)

09471-12217-000   0947112217000

0947112217000

Unit Price

3
SCREW
SCREW (6X22.5)

09139-06118-000   0913906118000

0913906118000

Unit Price

4
SCREW
SCREW

02162-0620C-000   021620620C000

021620620C000

Unit Price

5
SPACER(6.5X10X11.6)
SPACER

09180-06319-000   0918006319000

0918006319000

Unit Price

6
NUT<br />NUT, HEADLAMP
NUT
NUT, HEADLAMP

09152-06023-000   0915206023000

0915206023000

Unit Price

7
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

8
CUSHION

09320-07016-000  

09320-07020-000
 0932007016000

Unit Price

9
BRACKET, HEAD LAMP ADJUST

35150-45G01-000   3515045G01000

3515045G01000

Unit Price

10
BRACKET, HEAD LAMP MOUNT

35160-45G00-000   3516045G00000

3516045G00000

Unit Price

11
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

12
REFLECTOR,REFLEX FR<br />REFLEX REFLECTOR ASSY, FR
REFLECTOR, REFLEX FR
REFLEX REFLECTOR ASSY, FR

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

12
REFLEX REFLECTOR ASSY, FR SIDE

35950-14A10-000  

35950-14A11-000
 3595014A10000

Unit Price

13
BRACKET, FR SIDE RR, R
BRACKET, FR SIDE, RH

35956-45G01-000   3595645G01000

3595645G01000

Unit Price

14
BRACKET, FR SIDE RR, L
BRACKET, FR SIDE, LH

35957-45G01-000   3595745G01000

3595745G01000

Unit Price

15
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

16
WASHER MUFFLER SUPPO
WASHER (8.5X28X1.5)

09160-08142-000   0916008142000

0916008142000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki of QUADRACER. Let us know if you have any questions.
