THROTTLE BODY (MODEL K6 / K7 / K8) REFER TO FIG.12A(C- 3) FOR MODEL K9/L0

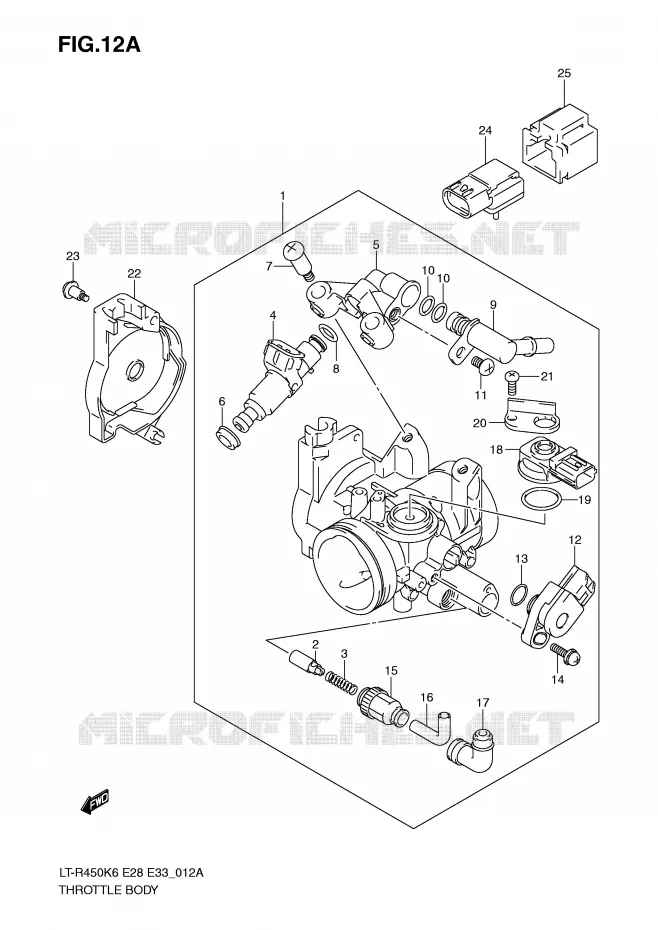

THROTTLE BODY (MODEL K9 / L0) FOR SUZUKI QUADRACER 450 2007

AIR FILTER

Item numbers

DISCONTINUE
BODY ASSY, THROTTLE

13400-45G10-000

Not available

VALVE, STARTER

13410-45G01-000 1341045G01000

$146,97

Unit Price

SPRING

13271-45G00-000 1327145G00000

$9,97

Unit Price

INJECTOR ASSY

15710-45G00-000

15710-45G01-000

$312,97

Unit Price

PIPE, FUEL

13471-45G00-000 1347145G00000

$45,97

Unit Price

RING, SEAL

15722-45G00-000 1572245G00000

$16,97

Unit Price

SCREW

13601-45G00-000 1360145G00000

$5,97

Unit Price

O RING

15721-45G00-000 1572145G00000

$18,97

Unit Price

JOINT

13685-45G00-000 1368545G00000

$53,97

Unit Price

O RING

15721-24F00-000 1572124F00000

$11,97

Unit Price

SCREW

13452-45G00-000 1345245G00000

$4,97

Unit Price

SENSOR ASSY, THROTTLE MAIN
SENSOR ASSY

13580-18G00-000 1358018G00000

$196,97

Unit Price

O RING

13575-40F00-000 1357540F00000

$6,97

Unit Price

SCREW

13605-40F00-000 1360540F00000

$5,97

Unit Price

HOLDER, CABLE

13581-45G00-000 1358145G00000

$5,97

Unit Price

GUIDE, CABLE

13579-45G00-000 1357945G00000

$15,97

Unit Price

CAP

13681-45G00-000 1368145G00000

$7,97

Unit Price

SENSOR, MAP

15620-05H00-000 1562005H00000

$250,97

Unit Price

15621-05H01
O RING

15621-05H00-000 1562105H00000

Not available

PLATE

15622-05H00-000 1562205H00000

$38,97

Unit Price

SCREW

02112-14087-000 0211214087000

$2,97

Unit Price

COVER

13484-45G00-000 1348445G00000

$34,97

Unit Price

SCREW

13601-11F00-000 1360111F00000

$4,97

Unit Price

SENSOR, AIR PRESSURE

15620-10G00-000 1562010G00000

$315,97

Unit Price

HOLDER, AIR PRESSURE
HOLDER

15625-10G00-000 1562510G00000

$15,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (MODEL K9/L0) of your Suzuki of QUADRACER. Let us know if you have any questions.
