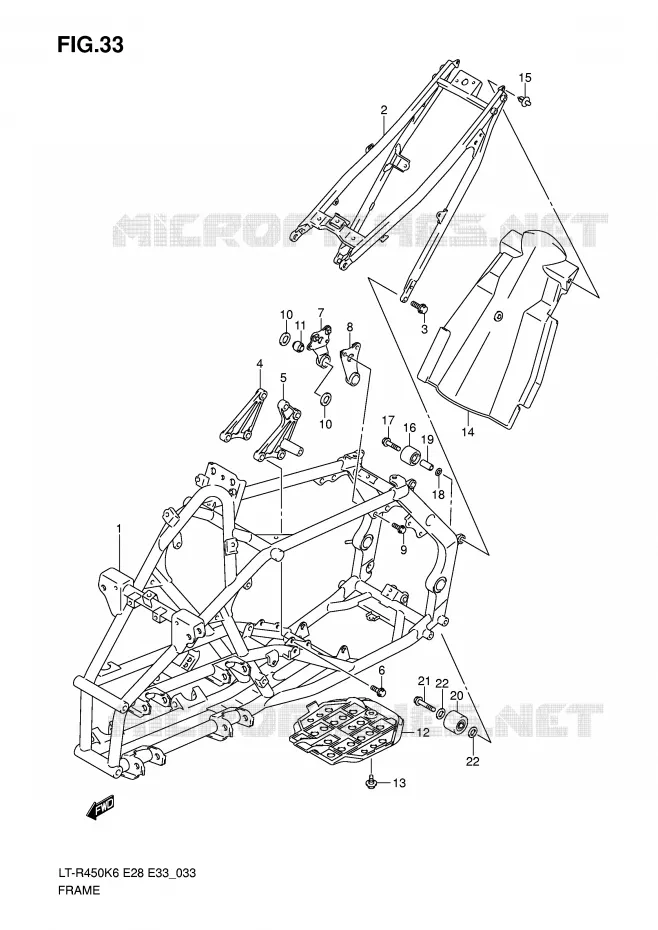

FRAME (MODEL K6 / K7 / K8) FOR SUZUKI QUADRACER 450 2010

FRAME (MODEL K9) REFER TO FIG.33B(F- 4) FOR MODEL L0

Item numbers

41100-45G12-YBA
FRAME (BLUE)

41100-45G00-YBA

Not available

DISCONTINUE

41100-45G10-YBA

Not available

DISCONTINUE

41100-45G11-019

Not available

DISCONTINUE

41100-45G11-YBA

Not available

RAIL, SEAT(SILVER)

41200-45G00-YD8

41200-45G10-YD8

$814,97

Unit Price

BOLT

09103-10310-A05

09103-10310-000

$6,97

Unit Price

PLATE, ENG MTG FR, R

41911-45G00-000

41911-45G01-000

$155,97

Unit Price

PLATE, ENG MTG FR, L

41921-45G00-000

41921-45G01-000

$165,97

Unit Price

BOLT

01550-0816A-000 015500816A000

$3,97

Unit Price

PLATE, MOUNT UPR, R
PLATE, MOUNT UPPER RH

41930-45G10-000 4193045G10000

$32,97

Unit Price

PLATE, MOUNT UPR, L
PLATE, MOUNT UPPER LH

41940-45G10-000 4194045G10000

$34,97

Unit Price

BOLT

01550-0816A-000 015500816A000

$3,97

Unit Price

WASHER, 10X20X2.3
WASHER

09160-10142-000 0916010142000

$3,97

Unit Price

BUSH

09319-10070-000 0931910070000

$30,97

Unit Price

PROTECTOR, ENGINE
DROTECTOR, ENGINE

42511-45G00-000 4251145G00000

$72,97

Unit Price

BOLT

09111-06063-A05

09111-06085-000

$7,97

Unit Price

PROTECTOR, MUFFLER

42541-45G00-000 4254145G00000

$88,97

Unit Price

CLIP

09409-08327-000 0940908327000

$3,97

Unit Price

ROLLER, CHAIN
ROLLER, CHAIN UPPER

43911-45G00-000 4391145G00000

$44,97

Unit Price

BOLT(8X32)
BOLT

09103-08377-000 0910308377000

$5,97

Unit Price

WASHER, THRUST
WASHER

09181-08167-000 0918108167000

$3,97

Unit Price

SPACER, 8.1X12.22
SPACER

09180-08149-000 0918008149000

$13,97

Unit Price

ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-27C11-000 4391027C11000

$73,97

Unit Price

BOLT, CHAIN ROLL *S1
BOLT

09103-08083-000 0910308083000

$6,97

Unit Price

WASHER, THRUST
WASHER

09181-08167-000 0918108167000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME (MODEL K6/K7/K8) of your Suzuki of QUADRACER. Let us know if you have any questions.
