CYLINDER HEAD COVER

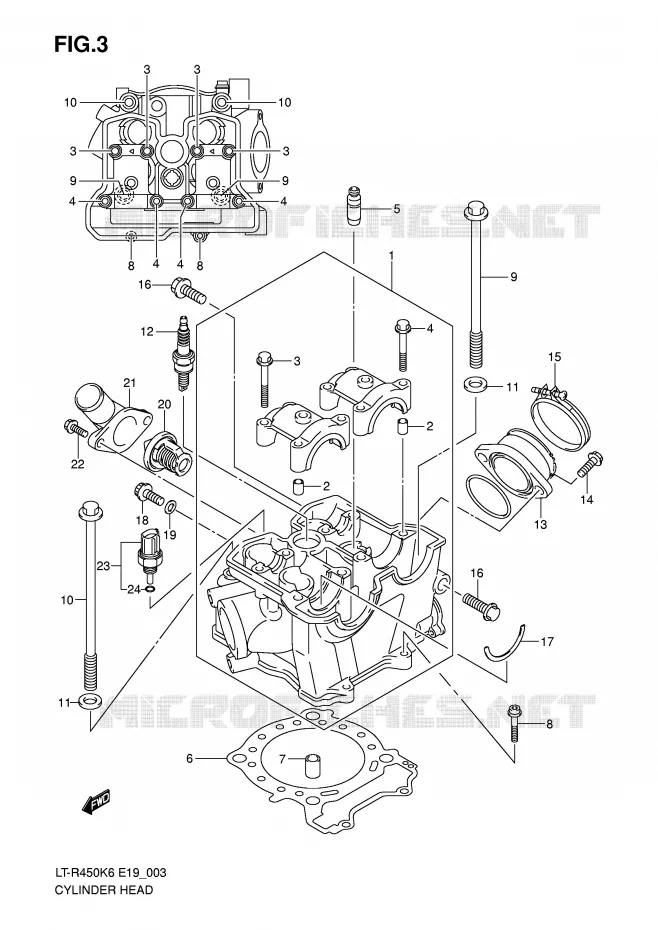

CYLINDER HEAD FOR SUZUKI QUADRACER 450 2010

CYLINDER

Item numbers

HEAD ASSY, CYLINDER

11100-45G00-000 1110045G00000

$1 008,97

Unit Price

HEAD ASSY, CYLINDER

11100-45G10-000

11100-45G20-000

$1 399,97

Unit Price

PIN(8X11)
PIN, CAMSHAFT HOUSING

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT, CAM SHAFT HSG
BOLT, CAMSHAFT HOUSING (6X39)

09103-06071-000 0910306071000

$3,97

Unit Price

BOLT, CAMSHAFT HOUSIN
BOLT, CAMSHAFT HOUSING (6X45)

09103-06219-000 0910306219000

$5,97

Unit Price

GUIDE, VALVE(OS:0.3)
GUIDE, VALVE (OS, 0.3)

11115-45G70-000 1111545G70000

$34,97

Unit Price

GASKET, CYLINDER HEAD

11141-45G00-000 1114145G00000

$55,97

Unit Price

PIN
PIN, CYL HEAD KNOCK

04211-13189-000 0421113189000

$3,97

Unit Price

BOLT
BOLT, CYLINDER HEAD

07120-06257-000 0712006257000

$5,97

Unit Price

BOLT, CYLINDER HEAD(L:120)
BOLT, CYLINDER HEAD

11161-45G00-000 1116145G00000

$14,97

Unit Price

BOLT, CYL HEAD 10X154
BOLT, CYLINDER HEAD (10X145)

09103-10368-000 0910310368000

$34,97

Unit Price

GASKET 10.2X20X2.3
WASHER (10.2X20X2.3)

09168-10031-000 0916810031000

$3,97

Unit Price

PLUG, SPARK(CR8EB)
PLUG, SPARK (NGK, CR8EB)

09482-00570-000

Not available

PIPE ASSY, INTAKE

13101-45G00-000

13101-45G01-000

$85,97

Unit Price

BOLT, INTAKE PIPE
BOLT (6X18)

09106-06105-000 0910606105000

$6,97

Unit Price

CLAMP
CLAMP, INTAKE PIPE

09402-60208-000 0940260208000

$8,97

Unit Price

BOLT(L:45)
BOLT, ENG MTG (10X45)

09103-10218-000 0910310218000

$7,97

Unit Price

C RING, CAMSHAFT
C RING

12749-35G01-000 1274935G01000

$6,97

Unit Price

BOLT

07120-06107-000 0712006107000

$5,97

Unit Price

GASKET

09168-06023-000 0916806023000

Not available

THERMOSTAT COMP, WATER

17670-45G00-000

17670-45G01-000

$53,97

Unit Price

COVER, THERMOSTAT

17661-45G00-000 1766145G00000

$37,97

Unit Price

BOLT

01547-0616A-000 015470616A000

$3,97

Unit Price

BOLT

01547-0616B-000 015470616B000

$4,97

Unit Price

SENSOR, WATER TEMP

13650-14G00-000 1365014G00000

$57,97

Unit Price

O RING

13655-14G00-000 1365514G00000

$11,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of QUADRACER. Let us know if you have any questions.
