PILOT LAMPS

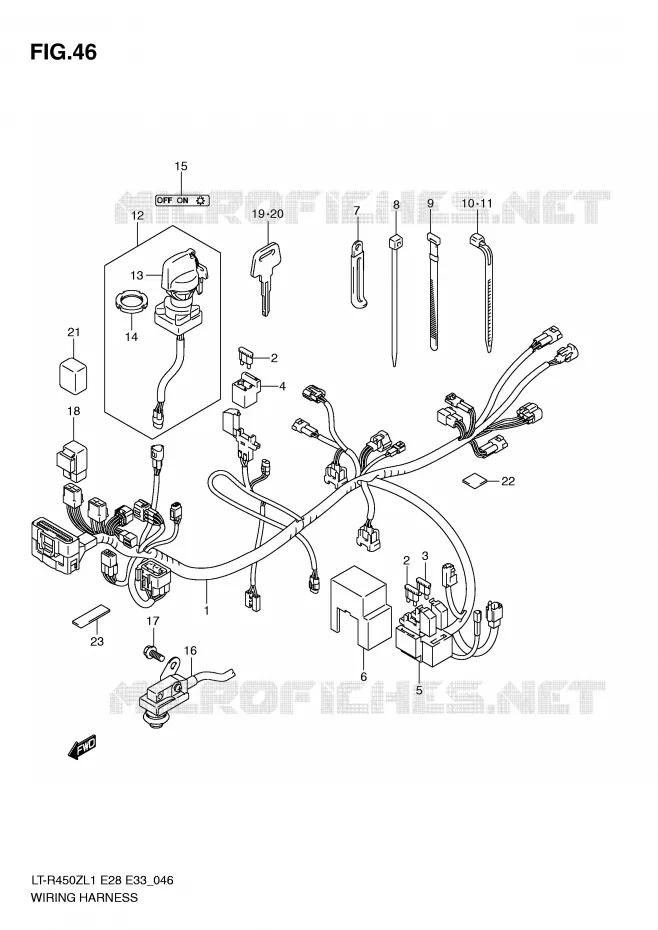

WIRING HARNESS FOR SUZUKI QUADRACER 450 2011

* CATALOG PREFACE *

Item numbers

HARNESS, WIRING

36610-45G10-000 3661045G10000

$720,97

Unit Price

FUSE (10A)

09481-10101-000 0948110101000

$2,97

Unit Price

FUSE (20A)

09481-20101-000 0948120101000

$2,97

Unit Price

HOLDER, FUSE
HOLDER

36742-39D00-000 3674239D00000

$24,97

Unit Price

HOLDER

36742-45G00-000 3674245G00000

$26,97

Unit Price

COVER FUSE

36717-45G00-000 3671745G00000

$18,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP
CLAMP (L:154)

09407-17403-000 0940717403000

$8,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$5,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

SWITCH ASSY, IGNITION

37110-45G00-000

37110-45G01-000

$133,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

NUT, IGNITION SWITCH
NUT, IGNITION

37112-24500-000 3711224500000

$13,97

Unit Price

DISCONTINUE
PLATE, CONTROL INDENTIFICATION

37139-45G00-000

Not available

SWITCH ASSY, STOP LAMP

37740-45G10-000 3774045G10000

$110,97

Unit Price

SCREW

02162-0608A-000 021620608A000

$2,97

Unit Price

RELAY ASSY
RELAY ASSY, FAN MOTOR

38740-24X50-000 3874024X50000

$43,97

Unit Price

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

COVER, CONNECTOR

36618-45G10-000 3661845G10000

$12,97

Unit Price

PROTECTOR(30X80X1)
PROTECTOR, HARNESS (30X80X1.0)

33652-29F00-000 3365229F00000

$6,97

Unit Price

PROTECTOR, WIRING HARNESS
PROTECTOR, HARNESS (20X50X2.0)

36920-45G00-000 3692045G00000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of QUADRACER. Let us know if you have any questions.
