Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CARBURETOR (MODEL X) FIG.6 (B-8) : MODEL Z

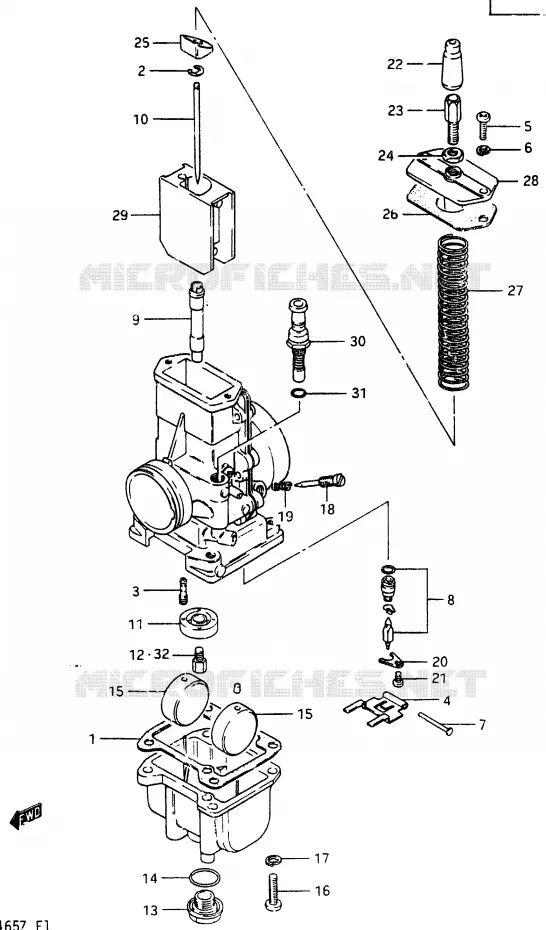

CARBURETOR (MODEL Z) FOR SUZUKI RM 465 1982

AIR FILTER

DISCONTINUE
GASKET

13251-14300-000 1325114300000

Not available

CLIP
E RING

13394-10010-000 1339410010000

$6,97

Unit Price

DISCONTINUE
JET, PILOT (50)

09492-50010-000

Not available

DISCONTINUE
ARM

13253-40010-000 1325340010000

Not available

SCREW

02112-04128-000

02112-0412A-000

$2,97

Unit Price

WASHER 4MM

08321-21048-000 0832121048000

Not available

PIN, FLOAT
PIN

13254-92311-000 1325492311000

$3,97

Unit Price

DISCONTINUE

13370-14300-000

Not available

DISCONTINUE
JET, NEEDLE (R-0)

09494-00357-000 0949400357000

Not available

DISCONTINUED

13383-14220-000 1338314220000

Not available

RING

13331-14300-000 1333114300000

Not available

DISCONTINUED

09491-62001-000 0949162001000

Not available

CAP, DRAIN

13247-32210-000 1324732210000

$20,97

Unit Price

O RING, DRAIN PLUG
O RING

13249-41310-000 1324941310000

$10,97

Unit Price

FLOAT

13252-18620-000 1325218620000

$37,97

Unit Price

SCREW

02112-05208-000

02112-75207-000

$4,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

SCREW, PILOT AIR

13269-46010-000

13269-95110-000

$17,97

Unit Price

SPRING
SPRING, AIR SCREW

13268-01010-000 1326801010000

$7,97

Unit Price

PLATE
PLATE, NEEDLE VALVE

13373-39110-000 1337339110000

$10,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

CAP, CABLE ADJUSTER
CAP, ADJUSTER

13681-33010-000 1368133010000

$15,97

Unit Price

ADJUSTER, CABLE

13577-41612-000 1357741612000

$15,97

Unit Price

NUT

13661-16600-000 1366116600000

$9,97

Unit Price

DISCONTINUED

13259-14300-000 1325914300000

Not available

RING

13387-14300-000 1338714300000

Not available

GASKET, TOP

13266-14300-000 1326614300000

Not available

SPRING, THROTTLE VALVE

13573-14300-000 1357314300000

Not available

TOP

13261-14300-000 1326114300000

Not available

THROTTLE VALVE (CA:3.0)

13551-14220-000 1355114220000

Not available

DISCONTINUED

13200-14220-000 1320014220000

Not available

DISCONTINUED

13411-43200-000 1341143200000

Not available

.THROTTLE STOP O RING

13295-15010-000 1329515010000

Not available

JET, MAIN (290)

09491-58001-000 0949158001000

Not available

JET, MAIN (300)

09491-60003-000 0949160003000

Not available

DISCONTINUED

09491-64001-000 0949164001000

Not available

DISCONTINUED

09491-66001-000 0949166001000

Not available

DISCONTINUED

09491-68001-000 0949168001000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
