CYLINDER

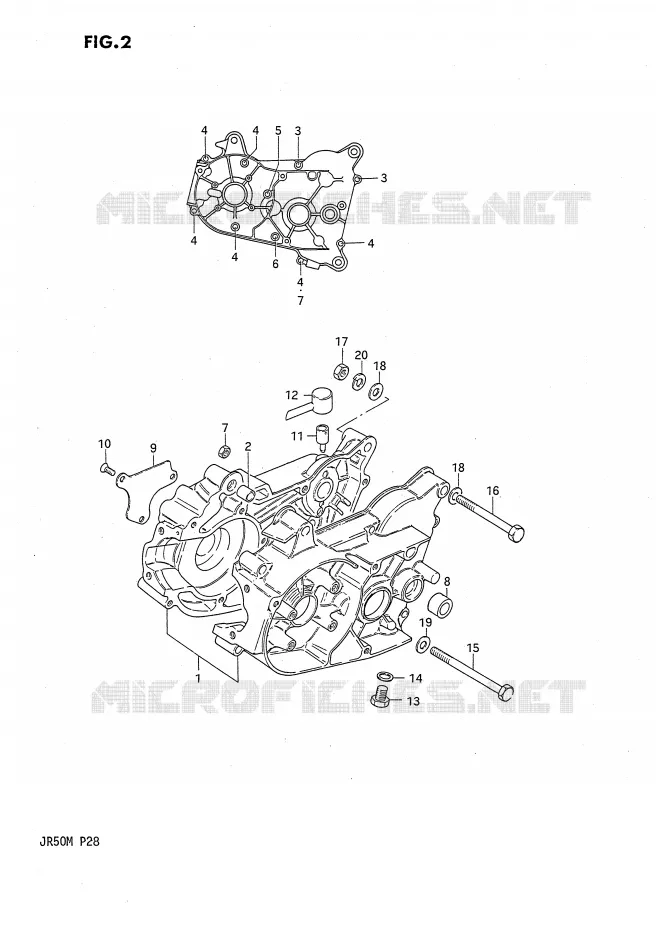

CRANKCASE FOR SUZUKI JR 50 1990

CLUTCH COVER - OIL PUMP

DISCONTINUED

11300-04840-000 1130004840000

Not available

04211-11129-000 0421111129000

$3,97

Unit Price

SCREW

02112-06308-000

02112-06307-000

$3,97

Unit Price

SCREW
SCREW (6X35)

02112-06357-000 0211206357000

$3,97

Unit Price

SCREW (6X40)

02112-06407-000 0211206407000

$3,97

Unit Price

SCREW

02112-06558-000

02112-06557-000

$3,97

Unit Price

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

BUSH, COUNTER SHAFT

09304-10005-000 0930410005000

Not available

PLATE, OIL RESERVOIR

12521-04000-000 1252104000000

$12,97

Unit Price

SCREW

02122-04108-000

02122-04103-000

$3,97

Unit Price

PLUG, T/M BREATHER
PLUG, BREATHER

24821-09001-000 2482109001000

$11,97

Unit Price

DISCONTINUE
CAP, BREATHER PLUG

24822-20000-000

Not available

CRANK DRAIN PLUG
PLUG, OIL DRAIN

09247-10001-000 0924710001000

$4,97

Unit Price

CRNK DRAIN PLUG GASK
GASKET

09168-10002-000 0916810002000

$2,97

Unit Price

BOLT

01107-08858-000

01500-08853-000

$3,97

Unit Price

BOLT

01107-08708-000

01500-08703-000

$5,97

Unit Price

NUT

08310-11088-000 0831011088000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

09160-08080
FLAT WASHER

09160-08030-000

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of JR. Let us know if you have any questions.
