Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME - FOOTREST FOR SUZUKI JR 50 1990

FUEL TANK (MODEL F / G / H) REFER TO FIG.17A(D-5) FOR MODEL J/K/L

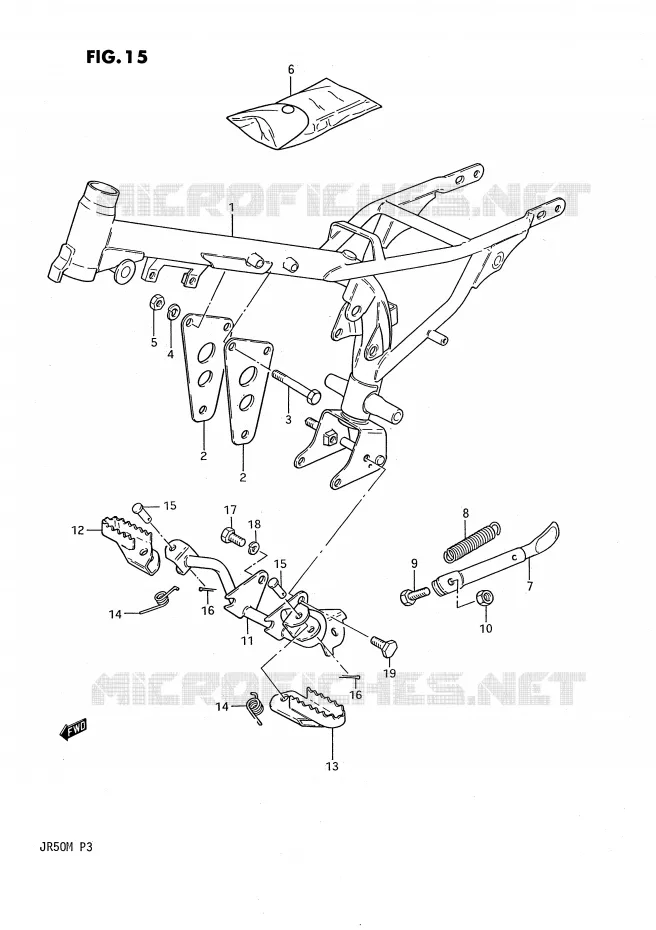

FRAME - FOOTREST Suzuki MOTO 50 JR 1990 JR50L(P3)
1
DISCONTINUED

41100-04431-19F   411000443119F

411000443119F
Not available
2
DISCONTINUE
PLATE, MOUNTING

41991-04410-000   4199104410000

4199104410000
Not available
3
BOLT

01107-08708-000  

01500-08703-000
 0110708708000

Unit Price

4
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

5
NUT

08310-11088-000   0831011088000

0831011088000
Not available
6
TOOL ASSY

09800-03800-000  

09800-03801-000
 0980003800000

Unit Price

7
STAND, PROP
STAND, PROP (BLACK)

42300-04420-019   4230004420019

4230004420019

Unit Price

7
STAND, PROP (BLUE)

42300-04420-19F   423000442019F

423000442019F
Not available
8
SPRING
SPRING

09443-14017-000   0944314017000

0944314017000

Unit Price

9
BOLT 8X12

09100-08145-000  

09100-08274-000
 0910008145000

Unit Price

10
NUT

08310-11088-000   0831011088000

0831011088000
Not available
11
DISCONTINUE
BAR, FRONT FOOTREST

43510-04411-000   4351004411000

4351004411000
Not available
12
FOOTREST, RH (BLUE)

43550-46000-19F   435504600019F

435504600019F
Not available
13
FOOTREST, FR, L

43560-46000-19F  

43560-46000-019
 435604600019F

Unit Price

14
FR FOOTREST SPRING<br />SPRING
FR FOOTREST SPRING
SPRING

09448-14012-000   0944814012000

0944814012000

Unit Price

15
FITTING PIN<br />PIN
FITTING PIN
PIN

09200-08002-000   0920008002000

0920008002000

Unit Price

16
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

17
BOLT

01107-08167-000  

01500-0816B-000
 0110708167000

Unit Price

18
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

19
FR FENDER FTREST*S1<br />BOLT, LH
FR FENDER FTREST*S1
BOLT, LH

09100-08143-000   0910008143000

0910008143000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME - FOOTREST of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 1990

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 1990

Select your Suzuki 1990 model

50 JR 1990 JR50L(P3)

Suzuki JR

Displacement: 50 cc
Year: 1990
Model code JR50L(P3)
