FUEL TANK (MODEL F / G / H) REFER TO FIG.17A(D-5) FOR MODEL J/K/L

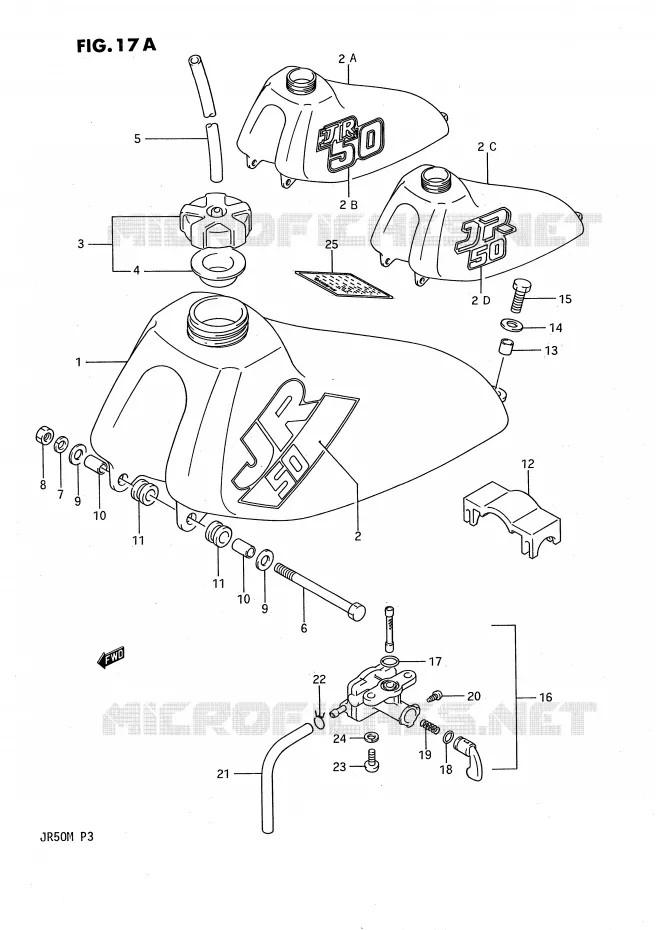

FUEL TANK (MODEL J / K / L) FOR SUZUKI JR 50 1991

FUEL TANK (MODEL M)

DISCONTINUED

44100-04400-25Y 441000440025Y

Not available

DISCONTINUE
DISCONTINUED

68110-04490-9UR 68110044909UR

Not available

DISCONTINUED

44100-09A00-25Y 4410009A0025Y

Not available

TAPE, FUEL TANK

68115-09A00-0FB 6811509A000FB

Not available

TANK, FUEL (YELLOW)

44110-04420-25Y 441100442025Y

Not available

EMBLEM

68120-04400-3SG 68120044003SG

Not available

DISCONTINUE

44200-40810-000

Not available

GASKET

44248-40400-000

44248-05211-000

$10,97

Unit Price

HOSE

09352-50823-300

09352-50005-600

$11,97

Unit Price

HOSE (L:240-200)

09352-50823-240 0935250823240

Not available

DISCONTINUED

01107-06908-000 0110706908000

Not available

WASHER, LOCK

08321-21067-000

08321-01067-000

$2,97

Unit Price

NUT

08310-11067-000

08310-00067-000

$3,97

Unit Price

MUD GUARD WASHER
WASHER

09160-06028-000 0916006028000

$2,97

Unit Price

09180-06289
SPACER

09180-06006-000

Not available

CUSHION

09320-10008-000

09320-10075-000

$4,97

Unit Price

CUSHION, FUEL TANK UPR
CUSHION, UPPER

44542-04420-000 4454204420000

$13,97

Unit Price

SPACER, 6.5X9X7.2

09180-06111-000

09180-06260-000

$5,97

Unit Price

MUD GUARD WASHER
WASHER

09160-06028-000 0916006028000

$2,97

Unit Price

BOLT

01107-06167-000

01500-06167-000

$3,97

Unit Price

COCK ASSY, FUEL

44300-04420-000 4430004420000

$64,97

Unit Price

O RING
O RING, JOINT

44348-41370-000 4434841370000

$2,97

Unit Price

O RING, LEVER

44353-41370-000 4435341370000

$6,97

Unit Price

SPRING

44357-41370-000

44357-32470-000

$3,97

Unit Price

SCREW

44343-41370-000 4434341370000

$3,97

Unit Price

HOSE

09352-50823-300

09352-50005-600

$11,97

Unit Price

HOSE, FUEL

09352-50823-150 0935250823150

Not available

OIL HOSE CLAMP
CLIP

09401-08401-000 0940108401000

$2,97

Unit Price

SCREW, 6X16
SCREW

02112-06167-000 0211206167000

$2,97

Unit Price

WASHER, LOCK

08321-21067-000

08321-01067-000

$2,97

Unit Price

DISCONTINUE

68369-04420-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL J/K/L) of your Suzuki of JR. Let us know if you have any questions.
