Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL TANK - SEAT

FAIRING FOR SUZUKI JR 50 1992

FRONT FENDER

Item numbers

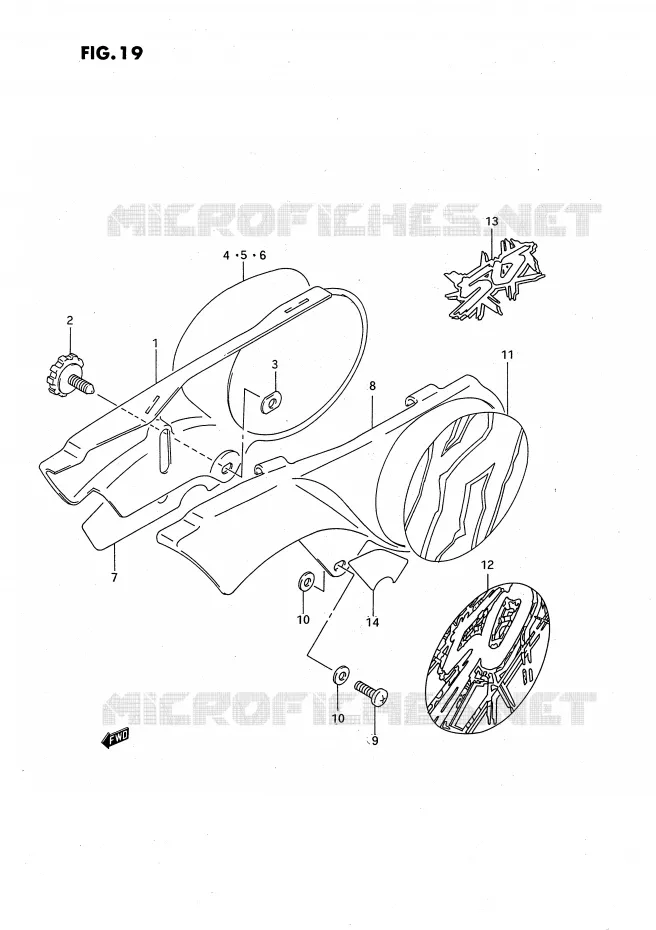

FAIRING Suzuki MOTO 50 JR 1992 JR50N(P3)
2
1
DISCONTINUE
COVER, FRAME RH (YELLOW)

47111-04420-25Y   471110442025Y

471110442025Y
Not available
1
DISCONTINUE
COVER, FRAME RH (WHITE)

47111-04420-30H   471110442030H

471110442030H
Not available
2
KNOB,FRAME COVER,R<br />KNOB
KNOB, FRAME COVER, R
KNOB

47130-33101-000   4713033101000

4713033101000

Unit Price

3
COVER KNOB STOP *S1<br />STOPPER, KNOB
COVER KNOB STOP *S1
STOPPER, KNOB

09152-06002-000   0915206002000

0915206002000

Unit Price

4
TAPE, FRAME COVER RH

68135-04420-L59   6813504420L59

6813504420L59
Not available
5
TAPE, FRAME COVER RH

68135-04430-A4J   6813504430A4J

6813504430A4J
Not available
6
EMBLEM, RH

68140-04400-C3A   6814004400C3A

6814004400C3A
Not available
6
EMBLEM, RH

68140-04400-D2D   6814004400D2D

6814004400D2D
Not available
7
DISCONTINUE
EMBLEM, LOWER RH

68131-04410-000   6813104410000

6813104410000
Not available
8
DISCONTINUE
COVER, FRAME LH (YELLOW)

47211-04420-25Y   472110442025Y

472110442025Y
Not available
8
DISCONTINUE
COVER, FRAME LH (WHITE)

47211-04420-30H   472110442030H

472110442030H
Not available
9
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

10
WASHER(6.5X18X1.6)

09160-06006-000  

09160-06084-000
 0916006006000

Unit Price

11
TAPE, FRAME COVER LH

68145-04420-L59   6814504420L59

6814504420L59
Not available
12
TAPE, FRAME COVER LH

68145-04430-A4J   6814504430A4J

6814504430A4J
Not available
13
EMBLEM, LH

68140-04400-C3A   6814004400C3A

6814004400C3A
Not available
13
EMBLEM, LH

68140-04400-D2D   6814004400D2D

6814004400D2D
Not available
14
EMBLEM, FRAME COVER L
EMBLEM, LOWER LH

68141-04410-000   6814104410000

6814104410000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 1992

Select your Suzuki 1992 model

50 JR 1992 JR50N(P3)

Suzuki JR

Displacement: 50 cc
Year: 1992
Model code JR50N(P3)
