CYLINDER

CRANKCASE FOR SUZUKI JR 50 1998

CLUTCH COVER - OIL PUMP

Item numbers

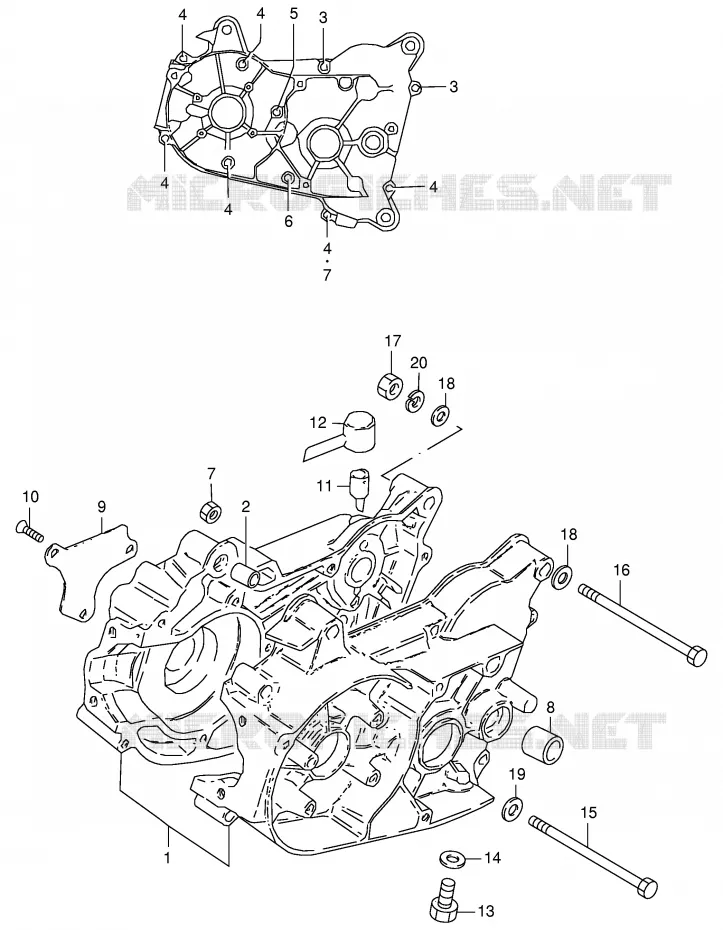

CRANKCASE Suzuki MOTO 50 JR 1998 JR50W(P3/P28)
1
1
2
3
3
4
4
4
4
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
1
CRANKCASE SET

11300-04841-000   1130004841000

1130004841000
Not available
1
CRANKCASE SET

11300-04842-000   1130004842000

1130004842000
Not available
2
PIN
PIN

04211-11129-000   0421111129000

0421111129000

Unit Price

3
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

4
02112-0635B
SCREW

02112-06353-000  

0211206353000
Not available
5
SCREW

02112-06403-000  

02112-0640B-000
 0211206403000

Unit Price

6
SCREW

02112-06553-000  

02112-0655B-000
 0211206553000

Unit Price

7
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
8
BUSH, COUNTER SHAFT

09304-10005-000   0930410005000

0930410005000
Not available
9
PLATE, OIL RESERVOIR

12521-04000-000   1252104000000

1252104000000

Unit Price

10
SCREW

02122-04103-000  

02122-0410A-000
 0212204103000

Unit Price

11
PLUG,T/M BREATHER<br />PLUG, BREATHER
PLUG, T/M BREATHER
PLUG, BREATHER

24821-09001-000   2482109001000

2482109001000

Unit Price

12
DISCONTINUE
CAP, BREATHER PLUG

24822-20000-000  

2482220000000
Not available
13
CRANK DRAIN PLUG<br />PLUG, OIL DRAIN
CRANK DRAIN PLUG
PLUG, OIL DRAIN

09247-10001-000   0924710001000

0924710001000

Unit Price

14
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

15
BOLT
BOLT

01500-08903-000   0150008903000

0150008903000
Not available
16
BOLT

01500-08703-000  

01500-0870B-000
 0150008703000

Unit Price

17
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

18
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
19
DISCONTINUE
WASHER

09160-08080-000  

0916008080000
Not available
20
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 1998

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 1998

Select your Suzuki 1998 model

50 JR 1998 JR50W(P3/P28)

Suzuki JR

Displacement: 50 cc
Year: 1998
Model code JR50W(P3 / P28)
