FRAME / FOOTREST

FUEL TANK FOR SUZUKI JR 50 2006

FAIRING

Item numbers

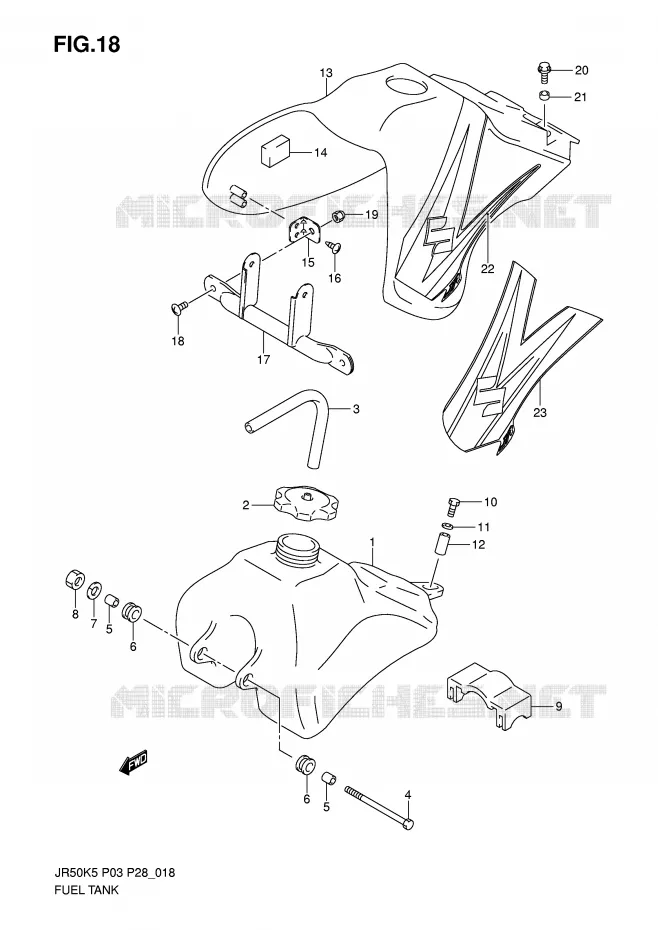

FUEL TANK Suzuki MOTO 50 JR 2006 JR50K6(P3/P28)
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
DISCONTINUE

44100-09AB0-000  

4410009AB0000
Not available
2
CAP ASSY, FUEL TANK FILLER
CAP, FUEL TANK

44200-09AA0-000   4420009AA0000

4420009AA0000

Unit Price

3
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

4
BOLT, FRONT

01500-06903-000   0150006903000

0150006903000
Not available
5
SPACER(6.5X10X11.5)<br />SPACER
SPACER(6.5X10X11.5)
SPACER

09180-06289-000   0918006289000

0918006289000

Unit Price

6
CUSHION
CUSHION

09320-10008-000  

09320-10075-000
 0932010008000

Unit Price

7
08321-0106A
LOCK WASHER

08321-01063-000  

0832101063000
Not available
8
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
9
DISCONTINUE
CUSHION, UPPER

44542-04420-000   4454204420000

4454204420000
Not available
10
BOLT

01500-06163-000  

01500-0616A-000
 0150006163000

Unit Price

11
MUD GUARD WASHER<br />WASHER
MUD GUARD WASHER
WASHER

09160-06028-000   0916006028000

0916006028000

Unit Price

12
SPACER, 6.5X9X7.2
SPACER

09180-06260-000   0918006260000

0918006260000

Unit Price

13
COVER, FUEL TANK
COVER, FUEL TANK (YELLOW)

44271-09AA0-YU1   4427109AA0YU1

4427109AA0YU1

Unit Price

14
CUSHION(20X30X15)
CUSHION

17798-29E30-000   1779829E30000

1779829E30000

Unit Price

15
BRACKET, FUEL TANK COVER NO.1
BRACKET, COVER NO.1

44171-09AA0-000   4417109AA0000

4417109AA0000

Unit Price

16
SCREW

03242-05123-000  

03241-0512A-000
 0324205123000

Unit Price

17
BRACKET, FUEL TANK COVER
BRACKET, TANK COVER

44170-09AA0-000   4417009AA0000

4417009AA0000

Unit Price

18
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

19
NUT

08313-20063-000  

08313-2006A-000
 0831320063000

Unit Price

20
SCREW, REAR

09136-06015-000   0913606015000

0913606015000
Not available
21
SPACER, 6.5X10X5

09180-06309-000  

09180-06353-000
 0918006309000

Unit Price

22
DISCONTINUE
TAPE SET

68120-09A50-YHS   6812009A50YHS

6812009A50YHS
Not available
23
DISCONTINUE
TAPE SET

68120-09A60-CET   6812009A60CET

6812009A60CET
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki JR 50 of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 2006

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 2006

Select your Suzuki 2006 model

50 JR 2006 JR50K6(P3/P28)
50 JR 2006 JR50K6(P3/P28)

JR 50

Suzuki JR

Displacement: 50 cc
Year: 2006
Model code JR50K6(P3 / P28)
