IGNITION (MODEL X E15, MODEL D / H / L / M E43) REFER TO FIG.16 (D-3) FOR MODEL D/H/L/M E15

IGNITION (MODEL D / H / L / M E15) FOR SUZUKI PV 50 1990

IGNITION (MODEL R E15 / P15) REFER TO FIG.16B(D-5) FOR E16

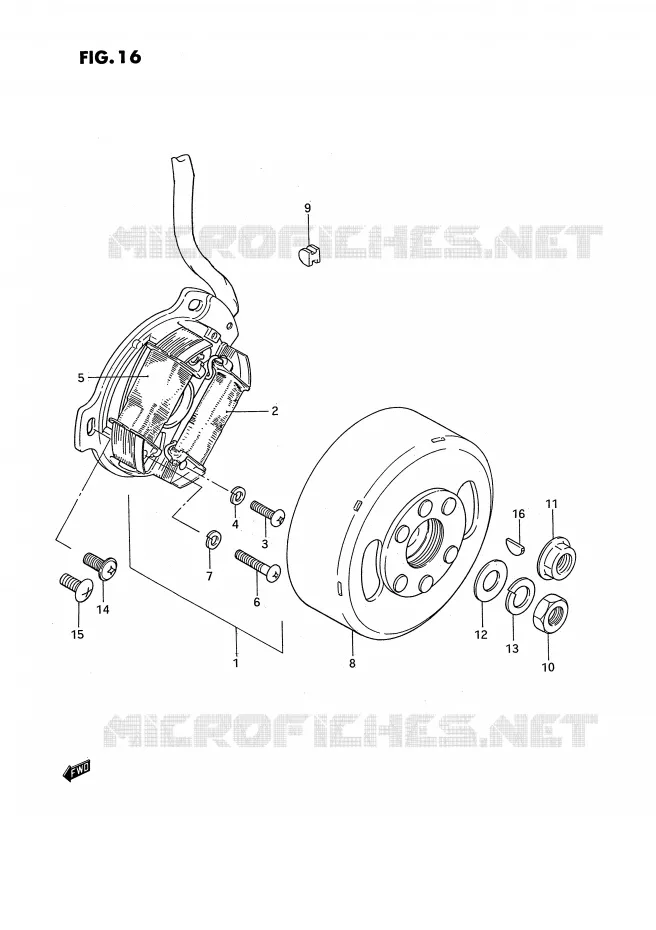

IGNITION (MODEL D/H/L/M E15) Suzuki MOTO 50 PV 1990 PV50L(E15)
1
STATOR ASSY

32101-17230-000   3210117230000

3210117230000
Not available
2
COIL, PRIMARY

32140-28B01-000   3214028B01000

3214028B01000
Not available
3
SCREW

02112-04167-000  

02112-0416A-000
 0211204167000

Unit Price

4
WASHER, LOCK

08321-21047-000  

08321-0104A-000
 0832121047000

Unit Price

5
COIL, LIGHTING

32120-17220-000   3212017220000

3212017220000
Not available
6
SCREW

02112-04258-000  

02112-0425B-000
 0211204258000

Unit Price

7
WASHER, LOCK

08321-21047-000  

08321-0104A-000
 0832121047000

Unit Price

8
ROTOR, FLYWHEEL

32102-17230-000   3210217230000

3210217230000
Not available
9
CAP, LEAD WIRE

09259-04001-000   0925904001000

0925904001000
Not available
10
NUT

09140-10003-000  

09140-10041-000
 0914010003000

Unit Price

11
NUT

08316-16108-000  

08316-1010B-000
 0831616108000

Unit Price

12
WASHER

08322-21108-000  

08322-01107-000
 0832221108000

Unit Price

13
WASHER

08321-21107-000  

08321-01107-000
 0832121107000

Unit Price

14
SCREW(5X14)
SCREW

09139-05011-000   0913905011000

0913905011000

Unit Price

15
SCREW

02142-05128-000  

02142-05127-000
 0214205128000

Unit Price

16
KEY
KEY

08341-31039-000   0834131039000

0834131039000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the IGNITION (MODEL D/H/L/M E15) of your Suzuki of PV. Let us know if you have any questions.

Genuine parts for Suzuki 50 PV 1990

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 PV 1990

Select your Suzuki 1990 model

50 PV 1990 PV50L(E15)

Suzuki PV

Displacement: 50 cc
Year: 1990
Model code PV50L(E15)
