Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER (E43)

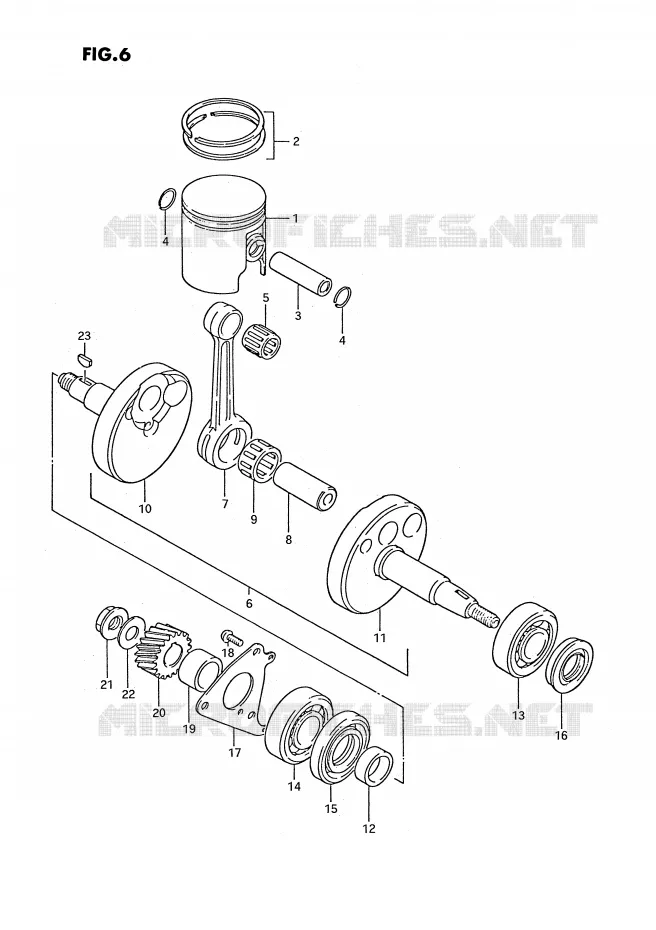

CRANKSHAFT FOR SUZUKI PV 50 1994

CARBURETOR REFER TO FIG.7A(B-11) FOR E16

DISCONTINUE

12110-46130-050

Not available

DISCONTINUE
PISTON (STD)

12110-46130-0F0 12110461300F0

Not available

DISCONTINUE

12110-46130-100

Not available

RING SET, PISTON(OS:0.50)
RING SET, PISTON (OS:0.5)

12140-46110-050 1214046110050

$69,97

Unit Price

DISCONTINUE

12140-46110-000

Not available

RING SET, PISTON (OS:1.0)

12140-46110-100

Not available

PIN, PISTON

12151-04700-000 1215104700000

$16,97

Unit Price

RING, SNAP
CIRCLIP

09381-12001-000 0938112001000

$2,97

Unit Price

BEARING

09263-12020-000

09263-12023-000

$16,97

Unit Price

CRANKSHAFT ASSY

12200-46600-000 1220046600000

Not available

ROD, CONNECTING

12161-04710-000

Not available

DISCONTINUE
PIN

12211-46010-000 1221146010000

Not available

BEARING(16X22X11.8)

09263-16016-000

09263-16034-000

$34,97

Unit Price

CRANKSHAFT, RH

12221-46100-000 1222146100000

Not available

CRANKSHAFT, LH

12261-46100-000 1226146100000

Not available

SPACER(20X26X9)
SPACER

09180-20021-000 0918020021000

$13,97

Unit Price

BEARING

09262-20069-000

09262-20121-000

$43,97

Unit Price

BEARING CRANKSHAFT, R

09262-20064-000

09262-20141-000

$59,97

Unit Price

OIL SEAL CR SHAFT RH
OIL SEAL, RH

09283-26015-000 0928326015000

$10,97

Unit Price

OIL SEAL
OIL SEAL, LH

09283-20034-000 0928320034000

$7,97

Unit Price

RETAINER, CRANKSHAFT BEARING, R
RETAINER, BEARING RH

12541-46001-000 1254146001000

$11,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$2,97

Unit Price

SPACER(20X26X14)
SPACER

09180-20059-000 0918020059000

$10,97

Unit Price

GEAR, PRIMARY DRIVE NO.19
GEAR, PRIMARY DRIVE (NT:19)

21111-46000-000 2111146000000

$75,97

Unit Price

PRI DRIVE GEAR NUT
NUT

09159-12005-000 0915912005000

$5,97

Unit Price

DISCONTINUE
WASHER

09164-12016-000 0916412016000

Not available

KEY

08341-31039-000 0834131039000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of PV. Let us know if you have any questions.
