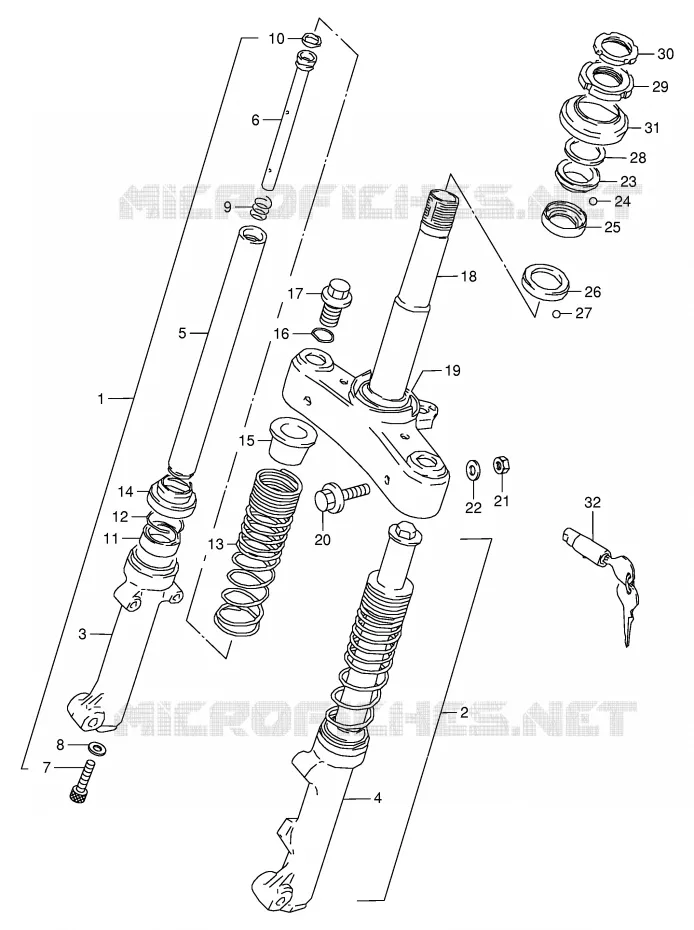

FRONT FORK FOR SUZUKI PV 50 1998

FRONT WHEEL

Item numbers

DAMPER ASSY, FRONT FORK RH

51103-17201-000 5110317201000

Not available

DAMPER ASSY, FRONT FORK LH

51104-17201-000 5110417201000

Not available

TUBE, OUTER RH

51131-17201-000 5113117201000

Not available

TUBE, OUTER LH

51141-17201-000 5114117201000

Not available

TUBE, INNER

51110-17200-000 5111017200000

Not available

PIPE, SEAT

51146-17200-000 5114617200000

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

SPRING, REBOUND
SPRING

51177-46100-000 5117746100000

$8,97

Unit Price

RING, PISTON

51196-46100-000 5119646100000

$14,97

Unit Price

SEAL, OIL

51153-03400-000 5115303400000

$23,97

Unit Price

RING, OIL SEAL STOPPER
CLIP

51156-48130-000 5115648130000

$9,97

Unit Price

SPRING

51171-17200-000 5117117200000

Not available

SEAL, DUST

51571-17200-000 5157117200000

Not available

GUIDE, SPRING

51173-17200-000 5117317200000

Not available

SEAL NUT O RING
O RING

09280-18004-000 0928018004000

$8,97

Unit Price

CAP
BOLT

51351-46190-000 5135146190000

$30,97

Unit Price

STEM, STEERING

51400-17821-000 5140017821000

Not available

RACE, OUTER LOWER

51622-04000-000 5162204000000

Not available

BOLT

09103-10026-000 0910310026000

Not available

NUT

08319-31103-000

08319-3110A-000

$3,97

Unit Price

WASHER

08322-01103-000

08322-0110B-000

$3,97

Unit Price

RACE, STEERING OUTER UPR
RACE, OUTER UPPER

51621-28000-000 5162128000000

$11,97

Unit Price

BALL
BALL, UPPER

06111-06003-000 0611106003000

$2,97

Unit Price

RACE, STEERING INNER UPR
RACE, INNER UPPER

51611-20002-000 5161120002000

$11,97

Unit Price

RACE, INNER LOWER

51612-04000-000 5161204000000

Not available

BALL
BALL, LOWER

06111-06003-000 0611106003000

$2,97

Unit Price

WASHER

09166-26001-000 0916626001000

$2,97

Unit Price

NUT, STEERING STEM(25X44X10)
NUT, STEM

51631-28000-000 5163128000000

$20,97

Unit Price

NUT, STEERING STEM LOCK
NUT, STEM LOCK

51632-02400-000 5163202400000

$19,97

Unit Price

DUST SEAL, STEERING UPR
SEAL, DUST

51643-25001-000 5164325001000

$10,97

Unit Price

LOCK SET, STEERING

51900-22662-000

51900-309V0-000

$237,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of PV. Let us know if you have any questions.
