FUEL TANK (MODEL J / K)

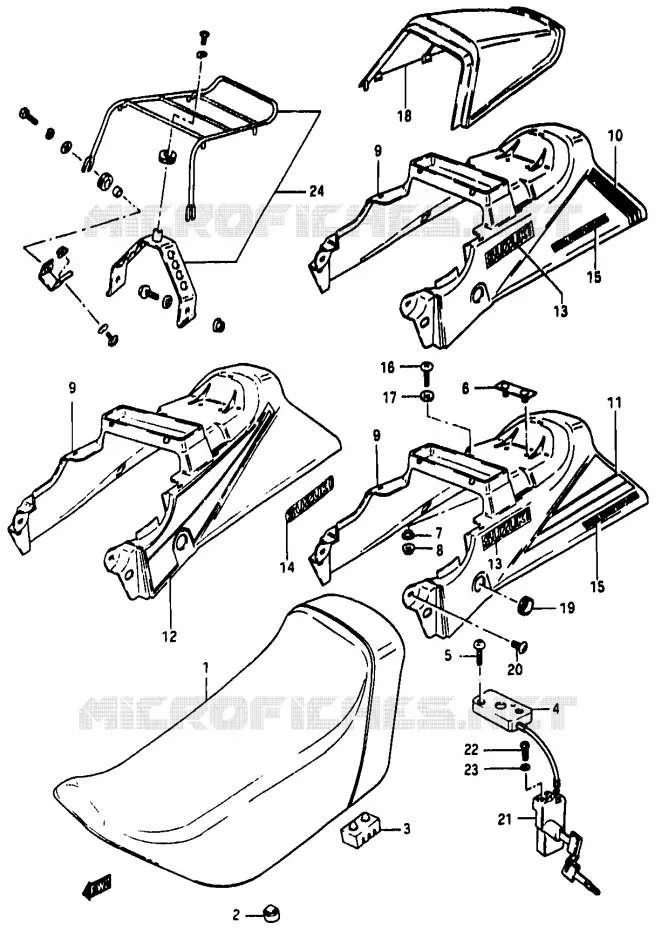

SEAT (MODEL D / E / F) FOR SUZUKI RG 50 1985

SEAT (MODEL G / G1) REFER TO FIG.30A (E-13) FOR MODEL J

SEAT ASSY (BLACK)

45100-04700-40P 451000470040P

Not available

SEAT ASSY (RED)

45100-04700-50J 451000470050J

Not available

CUSHION

09321-10011-000 0932110011000

$4,97

Unit Price

CUSHION, SUPPORT(50X25X32)
CUSHION

45149-45330-000 4514945330000

$5,97

Unit Price

BRACKET, SEAT SUPPORT REAR

45220-04700-000 4522004700000

Not available

SCREW

02122-06255-000

02122-0625B-000

$2,97

Unit Price

BRACKET, SEAT

45126-04700-000 4512604700000

Not available

CHAIN CASE WASHER
WASHER

09169-06010-000 0916906010000

$4,97

Unit Price

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

COVER, SEAT TAIL (RED)

45511-04701-00J 455110470100J

Not available

COVER, SEAT TAIL (BLUE)

45511-04701-04Y 455110470104Y

Not available

COVER, SEAT TAIL (WHITE)

45511-04701-08X 455110470108X

Not available

COVER, SEAT TAIL (BLACK)

45511-04701-13Z 455110470113Z

Not available

COVER, SEAT TAIL (WHITE)

45511-04701-14L 455110470114L

Not available

COVER, SEAT TAIL (SILVER)

45511-04701-737 4551104701737

Not available

TAPE SET, SEAT TAIL COVER

68160-04700-67H 681600470067H

Not available

TAPE SET, SEAT TAIL COVER

68160-04700-72P 681600470072P

Not available

TAPE SET, SEAT TAIL COVER

68160-04700-79H 681600470079H

Not available

TAPE SET, SEAT TAIL COVER

68160-04710-67H 681600471067H

Not available

TAPE SET, SEAT TAIL COVER

68160-04710-7AR 68160047107AR

Not available

TAPE SET, SEAT TAIL COVER

68160-04710-7CS 68160047107CS

Not available

TAPE SET, SEAT TAIL COVER

68160-04720-7RL 68160047207RL

Not available

TAPE SET, SEAT TAIL COVER

68160-04720-7RP 68160047207RP

Not available

TAPE SET, SEAT TAIL COVER

68160-04720-81F 681600472081F

Not available

TAPE SET, SEAT TAIL COVER

68160-04720-85L 681600472085L

Not available

EMBLEM (WHITE)

68166-04700-064 6816604700064

Not available

EMBLEM (RED)

68166-04700-07G 681660470007G

Not available

EMBLEM (BLACK)

68166-04720-019 6816604720019

Not available

EMBLEM (WHITE)

68166-04720-064 6816604720064

Not available

.EMBLEM, FULL FLOATER

68235-04700-87W 682350470087W

Not available

.EMBLEM, FULL FLOATER

68235-04700-91R 682350470091R

Not available

SCREW

02142-06206-000

02142-06203-000

$2,97

Unit Price

WASHER

09160-06057-000

09160-06109-000

$3,97

Unit Price

BOX, SEAT TAIL

45551-04710-000 4555104710000

Not available

BOX, SEAT TAIL (WHITE)

45551-04710-14L 455510471014L

Not available

BOX, SEAT TAIL (BLACK)

45551-04710-291 4555104710291

Not available

DISCONTINUE
GROMMET

45522-04700-000 4552204700000

Not available

SCREW

02142-06108-000

02142-06107-000

$3,97

Unit Price

LOCK ASSY, SEAT

95700-04700-KEY 9570004700KEY

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

CARRIER SET, REAR

46300-04820-000 4630004820000

Not available

CARRIER SET, REAR

46300-04830-000 4630004830000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Suzuki 50 1985 RG model
