SEAT (MODEL J) REFER TO FIG.30B (E-14) FOR MODEL K

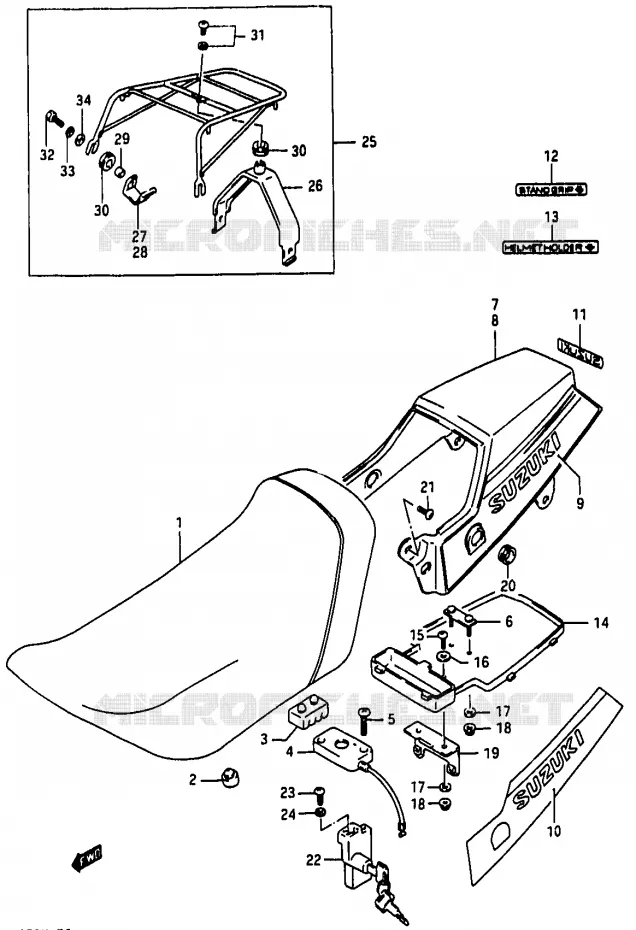

SEAT (MODEL K) FOR SUZUKI RG 50 1986

FAIRING (MODEL D / E / F / G) REFER TO FIG.31A(F-4) FOR MODEL J

SEAT ASSY (BLACK)

45100-04700-4NJ 45100047004NJ

Not available

SEAT ASSY (BLUE)

45100-04700-5DK 45100047005DK

Not available

CUSHION

09321-10011-000 0932110011000

$4,97

Unit Price

CUSHION, SUPPORT(50X25X32)
CUSHION

45149-45330-000 4514945330000

$6,97

Unit Price

BRACKET, SEAT SUPPORT REAR

45220-04700-000 4522004700000

Not available

SCREW

02122-06255-000

02122-0625B-000

$3,97

Unit Price

BRACKET, SEAT

45126-04700-000 4512604700000

Not available

COVER, SEAT TAIL (RED)

45510-04740-07P 455100474007P

Not available

COVER, SEAT TAIL (BLUE)

45510-04720-33N 455100472033N

Not available

TAPE SET, SEAT TAIL COVER

68160-04780-2RT 68160047802RT

Not available

TAPE SET, SEAT TAIL COVER

68160-04770-2JW 68160047702JW

Not available

EMBLEM (WHITE)

68271-34A00-064 6827134A00064

Not available

LABEL, STAND GRIP (BLACK)

68367-04700-000 6836704700000

Not available

LABEL, STAND GRIP (WHITE)

68367-04720-000 6836704720000

Not available

LABEL, HELMET HOLDER (BLACK)

68367-04710-000 6836704710000

Not available

LABEL, HELMET HOLDER (WHITE)

68367-04730-000 6836704730000

Not available

BOTTOM, SEAT TAIL COVER

45561-04700-000 4556104700000

Not available

SCREW

02142-06166-000

02142-0616A-000

$2,97

Unit Price

WASHER

09160-06057-000

09160-06109-000

$3,97

Unit Price

WASHER(6.5X22X1.6)

09160-06012-000

09160-06054-000

$2,97

Unit Price

NUT, FENDER & BRACE

08319-31066-000 0831931066000

Not available

BRACKET, CDI UNIT

47410-04700-000 4741004700000

Not available

DISCONTINUE
GROMMET

45522-04700-000 4552204700000

Not available

SCREW

02142-06108-000

02142-06107-000

$3,97

Unit Price

LOCK ASSY, SEAT

95700-04700-KEY 9570004700KEY

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

CARRIER SET, REAR

46300-04850-000 4630004850000

Not available

PLATE, CARRIER SUPPORT

46340-04720-000 4634004720000

Not available

BRACKET, RH

46351-04701-000 4635104701000

Not available

BRACKET, LH

46352-04701-000 4635204701000

Not available

SPACER, SIDE

46361-04720-000 4636104720000

Not available

CUSHION(11.8X25X7.5)

09320-12011-000

09320-12090-000

$2,97

Unit Price

BOLT, CENTER

01174-06305-000 0117406305000

Not available

BOLT, FRONT

01107-06355-000 0110706355000

Not available

08321-0106A
.LOCK WASHER

08321-21064-000

Not available

WASHER

08322-21064-000

08322-0106A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
