Parts diagram

STEERING COLUMN

FRONT FORK (MODEL T, MODEL V:P29) FOR SUZUKI RMX 50 1996

FRONT FORK (MODEL V:P4, P53)

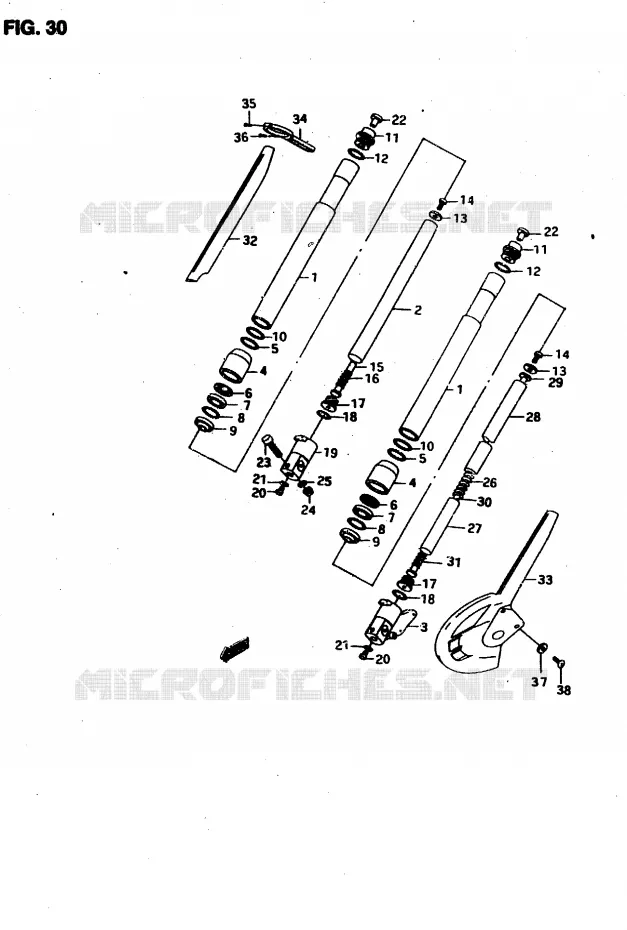

FRONT FORK (MODEL T, MODEL V:P29) Suzuki MOTO 50 RMX 1996 RMX50T(T/V)
1
TUBE, OUTER

51210-03E00-000   5121003E00000

5121003E00000
Not available
2
TUBE, INNER RH

51211-00E20-000   5121100E20000

5121100E20000
Not available
3
BRACKET, AXLE LH

51104-00E20-000   5110400E20000

5110400E20000
Not available
4
CASE, SEAL

51212-00E20-000   5121200E20000

5121200E20000
Not available
5
O RING

51213-00E20-000   5121300E20000

5121300E20000
Not available
6
BUSH, GUIDE

51214-00E20-000   5121400E20000

5121400E20000
Not available
7
OIL SEAL

51153-00E20-000   5115300E20000

5115300E20000
Not available
8
O RING

51215-00E20-000   5121500E20000

5121500E20000
Not available
9
PLATE

51216-00E20-000   5121600E20000

5121600E20000
Not available
10
O RING

51217-00E20-000   5121700E20000

5121700E20000
Not available
11
BOLT, FORK

51179-00E20-000   5117900E20000

5117900E20000
Not available
12
O RING

51181-00E20-000   5118100E20000

5118100E20000
Not available
13
WASHER

51313-00E20-000   5131300E20000

5131300E20000
Not available
14
BOLT

D7100-10258-000   D710010258000

D710010258000
Not available
15
CYLINDER, RH

51110-03E00-000   5111003E00000

5111003E00000
Not available
16
SPRING

51177-00E20-000   5117700E20000

5117700E20000
Not available
17
BOLT

51178-00E20-000   5117800E20000

5117800E20000
Not available
18
RING

51179-00E20-000   5117900E20000

5117900E20000
Not available
19
BRACKET, AXLE RH

51103-00E20-000   5110300E20000

5110300E20000
Not available
20
BOLT

D7107-08255-000   D710708255000

D710708255000
Not available
21
GASKET

51105-00E20-000   5110500E20000

5110500E20000
Not available
22
CAP, FORK

51189-00E20-000   5118900E20000

5118900E20000
Not available
23
BOLT

09100-08E18-000   0910008E18000

0910008E18000
Not available
24
NUT

D8311-60088-000   D831160088000

D831160088000
Not available
25
WASHER

D8322-11088-000   D832211088000

D832211088000
Not available
26
SPRING, MAIN

51171-03E00-000   5117103E00000

5117103E00000
Not available
27
CYLINDER

51110-03E00-000   5111003E00000

5111003E00000
Not available
28
TUB, INNER LH

51310-00E20-000   5131000E20000

5131000E20000
Not available
29
GUIDE, SPRING

51312-00E20-000   5131200E20000

5131200E20000
Not available
30
CYLINDER

51116-03E00-000   5111603E00000

5111603E00000
Not available
31
SPRING, REBOUND

51177-03E00-000   5117703E00000

5117703E00000
Not available
32
PROTECTOR, RH

51201-03E00-30H   5120103E0030H

5120103E0030H
Not available
33
PROTECTOR, LH

51202-03E00-30H   5120203E0030H

5120203E0030H
Not available
34
GUIDE, HOSE

51629-03E00-000   5162903E00000

5162903E00000
Not available
35
SCREW

D3111-0E165-000   D31110E165000

D31110E165000
Not available
36
SCREW

D3111-0E195-000   D31110E195000

D31110E195000
Not available
37
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

38
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

99x
DAMPER ASSY, RH

51103-03E00-000   5110303E00000

5110303E00000
Not available
99x
DAMPER ASSY, LH

51104-03E00-000   5110403E00000

5110403E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
