Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR FOR SUZUKI RMX 50 1999

CLUTCH

Item numbers

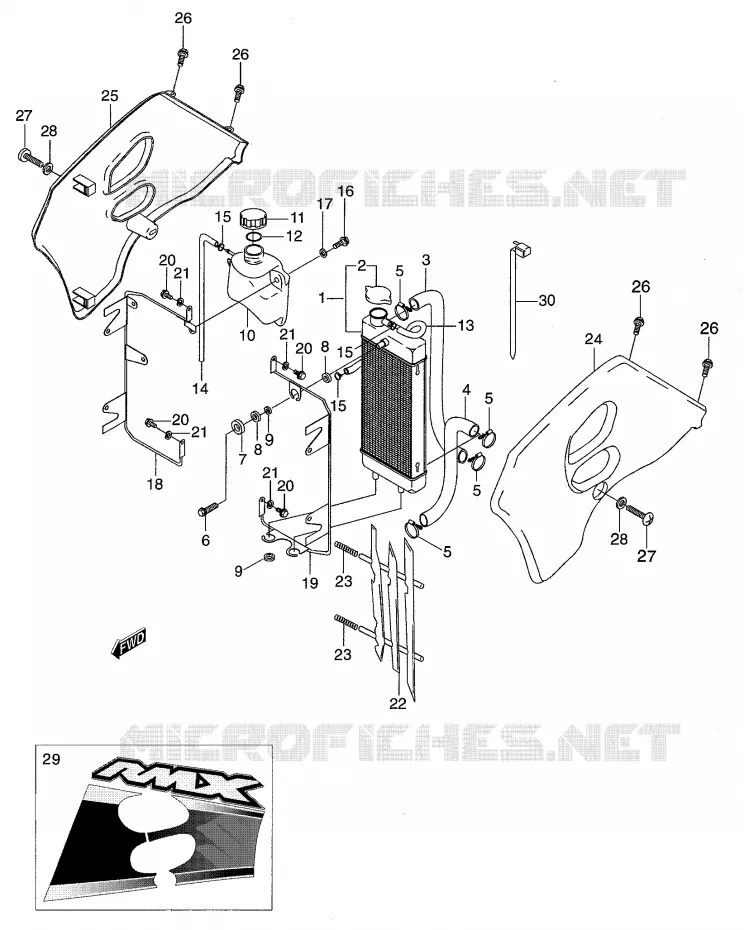

RADIATOR Suzuki MOTO 50 RMX 1999 RMX50X
1
1
2
2
3
3
4
4
5
5
5
5
5
5
5
5
6
6
7
7
8
8
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
14
15
15
15
15
15
15
16
16
17
17
18
18
19
19
20
20
20
20
20
20
20
20
21
21
21
21
21
21
21
21
22
22
23
23
23
23
24
24
24
24
24
24
24
24
24
24
24
24
25
25
25
25
25
25
25
25
25
25
25
25
26
26
26
26
27
27
28
28
29
29
29
29
29
29
29
29
30
1
RADIATOR, WATER

17710-00E00-000   1771000E00000

1771000E00000
Not available
2
CAP, RADIATOR

17730-00E00-000   1773000E00000

1773000E00000
Not available
3
HOSE, RADIATOR , INLET

17851-03E00-000   1785103E00000

1785103E00000
Not available
4
HOSE, RADIATOR, OUTLET

17852-03E00-000   1785203E00000

1785203E00000
Not available
5
CLAMP

D8391-12164-000   D839112164000

D839112164000
Not available
6
BOLT

D1507-06125-000   D150706125000

D150706125000
Not available
7
D8322-91065

D8322-91065-000  

D832291065000
Not available
8
WASHER

D8322-01105-000   D832201105000

D832201105000
Not available
9
CUSHION

09308-10E01-000   0930810E01000

0930810E01000
Not available
10
DISCONTINUE
TANK ASSY, RESERVE

17910-03D01-000   1791003D01000

1791003D01000
11
DISCONTINUE<br />CAP, TANK RESERVOIR
DISCONTINUE
CAP, TANK RESERVOIR

17845-13700-000   1784513700000

1784513700000
Not available
12
DISCONTINUE<br />GASKET, CAP TANK RESERV
DISCONTINUE
GASKET, CAP TANK RESERV

17844-13700-000   1784413700000

1784413700000
Not available
13
HOSE

09352-50823-360  

09352-50005-600
 0935250823360

Unit Price

14
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

15
CLIP

D9500-0093P-000   D95000093P000

D95000093P000
Not available
16
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

17
D8322-91065

D8322-91065-000  

D832291065000
Not available
18
HOLDER, RESERVE TANK

17920-03E00-EE3   1792003E00EE3

1792003E00EE3
Not available
19
HOLDER, RADIATOR

17930-03E00-EE3   1793003E00EE3

1793003E00EE3
Not available
20
BOLT

D1507-06125-000   D150706125000

D150706125000
Not available
21
WASHER 6
WASHER

D8321-51065-000  

D832151065000
Not available
22
DISCONTINUE
LOUVER, RADIATOR

17821-03D00-000   1782103D00000

1782103D00000
Not available
23
SPRING

09446-11002-000   0944611002000

0944611002000
Not available
24
COVER, RADIATOR, LH (BLUE)

17762-03E00-0NF   1776203E000NF

1776203E000NF
Not available
24
COVER, RADIATOR, LH (YELLOW)

17762-03E00-25Y   1776203E0025Y

1776203E0025Y
Not available
24
COVER, RADIATOR, LH (BLUE)

17762-03E00-34S   1776203E0034S

1776203E0034S
Not available
24
COVER, RADIATOR, LH (BLACK)

17762-03E00-NE2   1776203E00NE2

1776203E00NE2
Not available
24
COVER, RADIATOR, LH (VIOLET)

17762-03E00-VE1   1776203E00VE1

1776203E00VE1
Not available
24
COVER, RADIATOR, LH (YELLOW)

17762-03E00-YR1   1776203E00YR1

1776203E00YR1
Not available
25
COVER, RADIATOR, RH (BLUE)

17761-03E00-0NF   1776103E000NF

1776103E000NF
Not available
25
COVER, RADIATOR, RH (YELLOW)

17761-03E00-25Y   1776103E0025Y

1776103E0025Y
Not available
25
COVER, RADIATOR, RH (BLUE)

17761-03E00-34S   1776103E0034S

1776103E0034S
Not available
25
COVER, RADIATOR, RH (BLACK)

17761-03E00-NE2   1776103E00NE2

1776103E00NE2
Not available
25
COVER, RADIATOR, RH (VIOLET)

17761-03E00-VE1   1776103E00VE1

1776103E00VE1
Not available
25
COVER, RADIATOR, RH (YELLOW)

17761-03E00-YR1   1776103E00YR1

1776103E00YR1
Not available
26
SCREW, METER COVER

02142-05105-000   0214205105000

0214205105000
Not available
27
01550-0610B
BOLT

D2116-06105-000  

D211606105000
Not available
28
D8322-91065

D8322-91065-000  

D832291065000
Not available
29
EMBLEM SET (YELLOW)

68130-03E00-25Y   6813003E0025Y

6813003E0025Y
Not available
29
EMBLEM SET (BLUE)

68130-03E00-34S   6813003E0034S

6813003E0034S
Not available
29
EMBLEM SET (YELOW)

68130-03E10-25Y   6813003E1025Y

6813003E1025Y
Not available
29
EMBLEM SET (VIOLET)

68130-03E10-VE1   6813003E10VE1

6813003E10VE1
Not available
29
EMBLEM SET (YELLOW)

68130-03E20-25Y   6813003E2025Y

6813003E2025Y
Not available
29
EMBLEM SET (VIOLET)

68130-03E20-VE1   6813003E20VE1

6813003E20VE1
Not available
29
EMBLEM SET (BLUE)

68130-03E40-0NF   6813003E400NF

6813003E400NF
Not available
29
EMBLEM SET (YELLOW)

68130-03E40-YR1   6813003E40YR1

6813003E40YR1
Not available
30
DISCONTINUE
CLAMP

D9436-01425-000  

D943601425000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 50 RMX 1999
