SEAT (MODEL D / E) REFER TO FIG.41 (G-10) FOR MODEL F/G/P/S

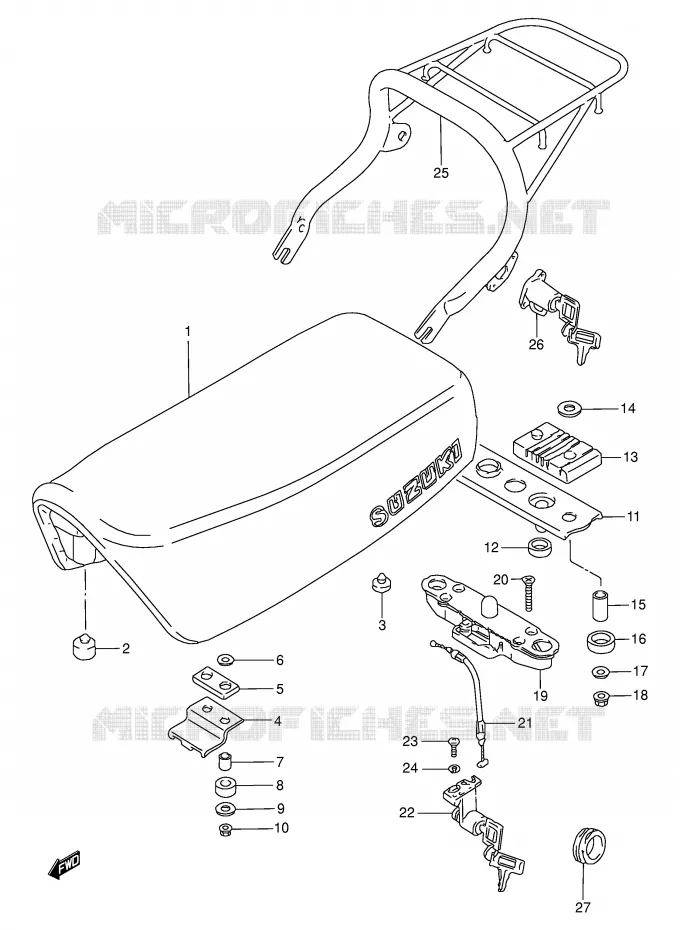

SEAT (MODEL F / G / P / S) FOR SUZUKI TS-W 50 1984

IGNITION

Item numbers

SEAT ASSY (BLUE)

45100-13651-58D 451001365158D

Not available

SEAT ASSY (YELLOW)

45100-13660-4JP 45100136604JP

Not available

SEAT ASSY

45100-13661-8PB 45100136618PB

Not available

CUSHION
CUSHION, FRONT

09321-10011-000 0932110011000

$4,97

Unit Price

CUSHION
CUSHION, REAR

09321-10012-000 0932110012000

$5,97

Unit Price

PLATE, SEAT HOOK FRONT

45119-13600-000 4511913600000

Not available

CUSHION, FRONT UPPER

45125-13600-000 4512513600000

Not available

WASHER

08322-01063-000

08322-0106A-000

$3,97

Unit Price

SPACER(6.1X8X12)

09180-06035-000

09180-06249-000

$3,97

Unit Price

CUSHION, FRONT LOWER

09324-26470-000 0932426470000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$3,97

Unit Price

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

PLATE, SEAT LOCK STRIKER

45210-13700-000 4521013700000

Not available

CUSHION, SEAT LOCK(10X22X6)

45213-13600-000

45213-13601-000

$4,97

Unit Price

CUSHION, REAR UPPER

45126-13600-000 4512613600000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$3,97

Unit Price

SPACER

45219-23450-000 4521923450000

Not available

CUSHION, SEAT FR
CUSHION, REAR LOWER

45147-23450-000 4514723450000

$2,97

Unit Price

WASHER, THRUST
WASHER

08212-06201-000 0821206201000

$2,97

Unit Price

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

LOCK ASSY, SEAT STRIKER

45220-13601-000 4522013601000

$104,97

Unit Price

SCREW

02112-06303-000

02112-0630A-000

$3,97

Unit Price

CABLE, SEAT LOCK

45280-13600-000 4528013600000

Not available

DISCONTINUE

95700-13600-KEY

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

SCREW

02112-35123-000

02112-3512A-000

$2,97

Unit Price

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

CARRIER, SPORTS

46310-13603-000 4631013603000

Not available

DISCONTINUED

95700-38303-KEY 9570038303KEY

Not available

LOCK SET, HELMET

95700-38840-000 9570038840000

Not available

DISCONTINUE
GROMMET, SEAT LOCK HOOL

45522-04700-000 4552204700000

Not available
