SEAT (MODEL D / E) REFER TO FIG.41 (G-10) FOR MODEL F/G/P/S

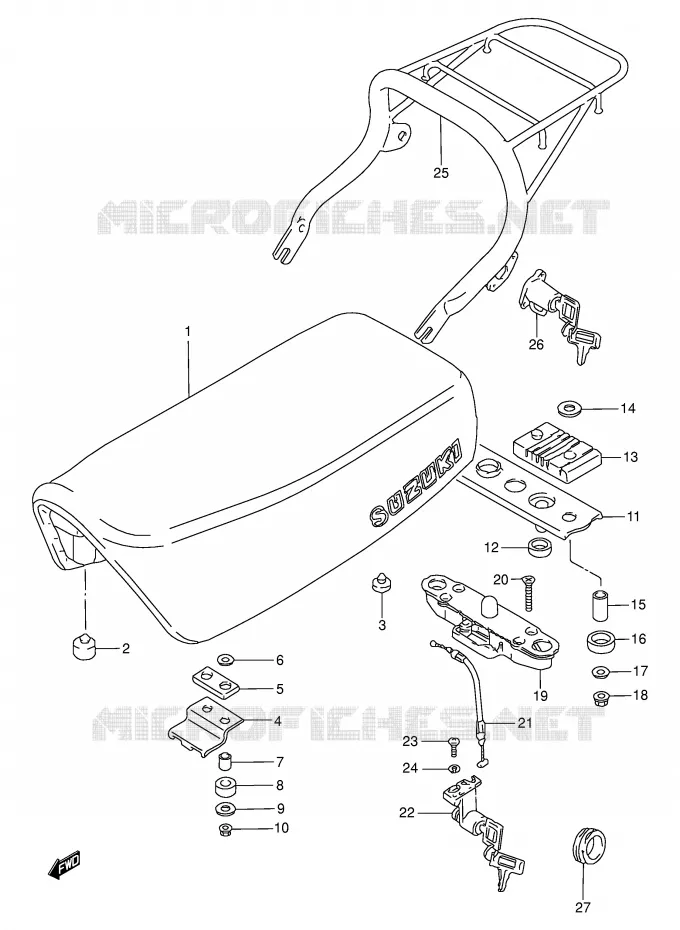

SEAT (MODEL F / G / P / S) FOR SUZUKI TS-W 50 1993

IGNITION

Item numbers

SEAT ASSY (BLUE)

45100-13651-58D 451001365158D

Not available

SEAT ASSY (YELLOW)

45100-13660-4JP 45100136604JP

Not available

SEAT ASSY

45100-13661-8PB 45100136618PB

Not available

CUSHION
CUSHION, FRONT

09321-10011-000 0932110011000

$4,97

Unit Price

CUSHION
CUSHION, REAR

09321-10012-000 0932110012000

$4,97

Unit Price

PLATE, SEAT HOOK FRONT

45119-13600-000 4511913600000

Not available

CUSHION, FRONT UPPER

45125-13600-000 4512513600000

Not available

WASHER

08322-01063-000

08322-0106A-000

$2,97

Unit Price

SPACER(6.1X8X12)

09180-06035-000

09180-06249-000

$3,97

Unit Price

CUSHION, FRONT LOWER

09324-26470-000 0932426470000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$2,97

Unit Price

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

PLATE, SEAT LOCK STRIKER

45210-13700-000 4521013700000

Not available

CUSHION, SEAT LOCK(10X22X6)

45213-13600-000

45213-13601-000

$4,97

Unit Price

CUSHION, REAR UPPER

45126-13600-000 4512613600000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$2,97

Unit Price

SPACER

45219-23450-000 4521923450000

Not available

CUSHION, SEAT FR
CUSHION, REAR LOWER

45147-23450-000 4514723450000

$2,97

Unit Price

WASHER, THRUST
WASHER

08212-06201-000 0821206201000

$2,97

Unit Price

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

LOCK ASSY, SEAT STRIKER

45220-13601-000 4522013601000

$118,97

Unit Price

SCREW

02112-06303-000

02112-0630A-000

$2,97

Unit Price

CABLE, SEAT LOCK

45280-13600-000 4528013600000

Not available

DISCONTINUE

95700-13600-KEY

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

SCREW

02112-35123-000

02112-3512A-000

$2,97

Unit Price

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

CARRIER, SPORTS

46310-13603-000 4631013603000

Not available

DISCONTINUED

95700-38303-KEY 9570038303KEY

Not available

LOCK SET, HELMET

95700-38840-000 9570038840000

Not available

DISCONTINUE
GROMMET, SEAT LOCK HOOL

45522-04700-000 4552204700000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
