HEADLAMP HOUSING (MODEL G / P / S)

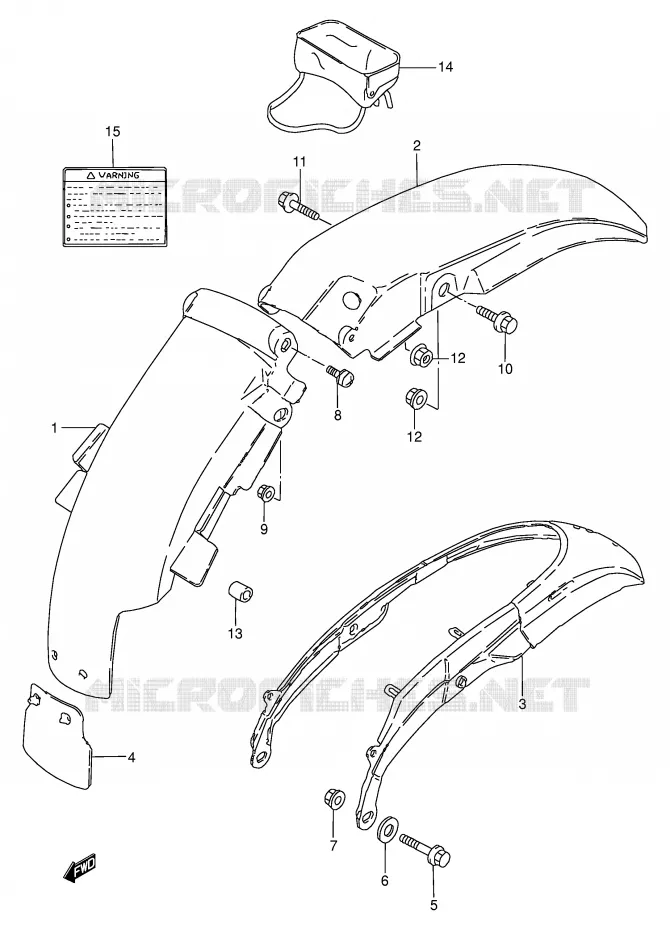

REAR FENDER FOR SUZUKI TS-W 50 1995

SEAT (MODEL D / E) REFER TO FIG.41 (G-10) FOR MODEL F/G/P/S

Item numbers

REAR FENDE, FRONT

63112-13600-000 6311213600000

Not available

FENDER, REAR (RED)

63113-13600-07P 631131360007P

Not available

FENDER, REAR (WHITE)

63113-13600-14L 631131360014L

Not available

FENDER, REAR (YELLOW)

63113-13600-163 6311313600163

Not available

FENDER, REAR (BLUE)

63113-13610-0NF 63113136100NF

Not available

FENDER, REAR (RED)

63113-13610-14C 631131361014C

Not available

FENDER, REAR (WHITE)

63113-13610-14L 631131361014L

Not available

FENDER, REAR (YELLOW)

63113-13610-163 6311313610163

Not available

FENDER, REAR (BLACK)

63113-13610-21C 631131361021C

Not available

REINFORCEMENT, REAR FENDER

63120-13600-000 6312013600000

Not available

DISCONTINUE
GUARD, REAR FENDER MAT

63411-33400-000 6341133400000

Not available

BOLT

01550-08453-000

01550-0845A-000

$5,97

Unit Price

BOLT
BOLT, FRONT

01550-08457-000 0155008457000

$5,97

Unit Price

WASHER

09169-08026-000 0916908026000

Not available

NUT

08319-31087-000 0831931087000

Not available

6X16CROSS SCREW
SCREW

02142-06167-000 0214206167000

$2,97

Unit Price

6X16CROSS SCREW

02152-06168-000

02112-16167-000

$2,97

Unit Price

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

BOLT

01517-08254-000

01550-0825A-000

$3,97

Unit Price

BOLT

01517-08405-000

01550-0840B-000

$5,97

Unit Price

BOLT

01517-08455-000

01550-08453-000

$5,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

DISCONTINUE
CUSHION

09329-05003-000

Not available

BAG ASSY, SEAT TAIL (YELLOW)

94900-13600-4JN 94900136004JN

Not available

BAG ASSY, SEAT TAIL (BLUE)

94900-13600-58D 949001360058D

Not available

LABEL, GENERAL WARNIN

68319-15D00-000

68319-33E00-000

$16,97

Unit Price

MANUAL, OWNER'S

99011-13645-01A 990111364501A

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
