Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

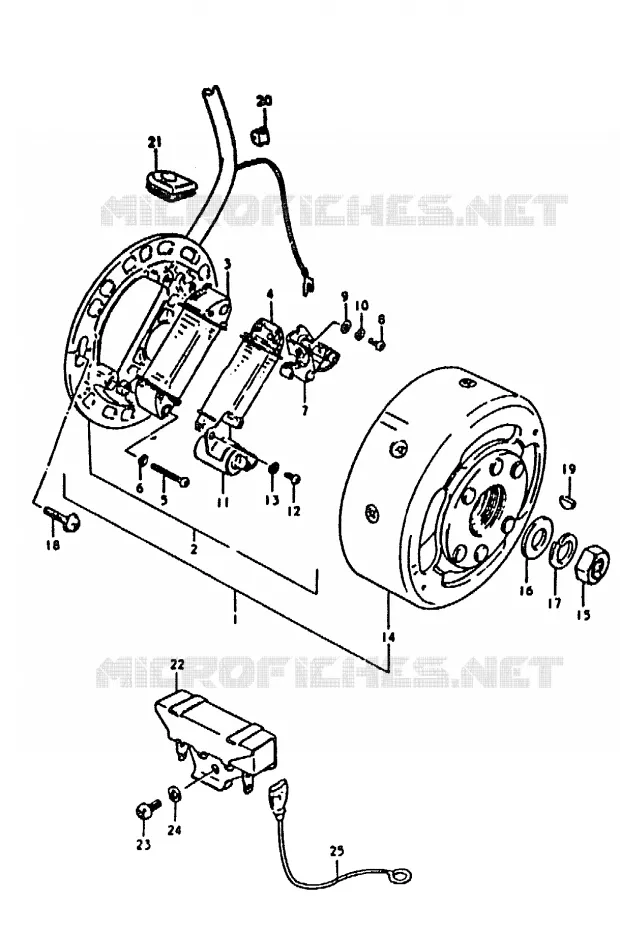

IGNITION FIG.14 (D-3) : E16

IGNITION (E16) FOR SUZUKI ZR 50 1992

BATTERY

IGNITION (E16) Suzuki MOTO 50 ZR 1992 ZR50KEN
1
MAGNETO ASSY

32100-48620-000   3210048620000

3210048620000
Not available
2
STATOR ASSY

32101-48620-000   3210148620000

3210148620000
Not available
3
COIL, LIGHTING

32120-48620-000   3212048620000

3212048620000
Not available
4
DISCONTINUE
COIL, PRIMARY

32140-48010-000   3214048010000

3214048010000
Not available
5
.SCREW

02112-04308-000   0211204308000

0211204308000
Not available
6
WASHER 4MM

08321-21048-000   0832121048000

0832121048000
Not available
7
POINT ASSY, CONTACT
POINT ASSY, CONTACT

32240-43012-000   3224043012000

3224043012000

Unit Price

8
DISCONTINUE<br />SCREW
DISCONTINUE
SCREW

09125-04001-000   0912504001000

0912504001000
Not available
9
LOCK WASHER

08322-21048-000   0832221048000

0832221048000
Not available
10
WASHER 4MM

08321-21048-000   0832121048000

0832121048000
Not available
11
DISCONTINUE
CONDENSER

32341-43012-000   3234143012000

3234143012000
Not available
12
.SCREW

02112-04088-000   0211204088000

0211204088000
Not available
13
WASHER 4MM

08321-21048-000   0832121048000

0832121048000
Not available
14
ROTOR, FLYWHEEL

32102-48620-000   3210248620000

3210248620000
Not available
15
NUT

09140-10003-000  

09140-10041-000
 0914010003000

Unit Price

16
WASHER

08322-21108-000  

08322-01107-000
 0832221108000

Unit Price

17
.LOCK WASHER

08321-21108-000   0832121108000

0832121108000
Not available
18
SCREW(5X14)
SCREW, STATOR

09139-05011-000   0913905011000

0913905011000

Unit Price

19
KEY
KEY

08341-31039-000   0834131039000

0834131039000

Unit Price

20
GROMMET, LEAD WIRE

32742-32021-000   3274232021000

3274232021000
Not available
21
DISCONTINUED

09309-09006-000   0930909006000

0930909006000
Not available
22
RESISTOR ASSY

36510-30600-000   3651030600000

3651030600000
Not available
23
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000   0211206108000

0211206108000
Not available
24
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
25
LEAD WIRE, RESISTOR

36851-43000-000   3685143000000

3685143000000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the IGNITION (E16) of your Suzuki of ZR. Let us know if you have any questions.

Genuine parts for Suzuki 50 ZR 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 ZR 1992

Select your Suzuki 1992 model

50 ZR 1992 ZR50KEN

Suzuki ZR

Displacement: 50 cc
Year: 1992
Model code ZR50KEN
