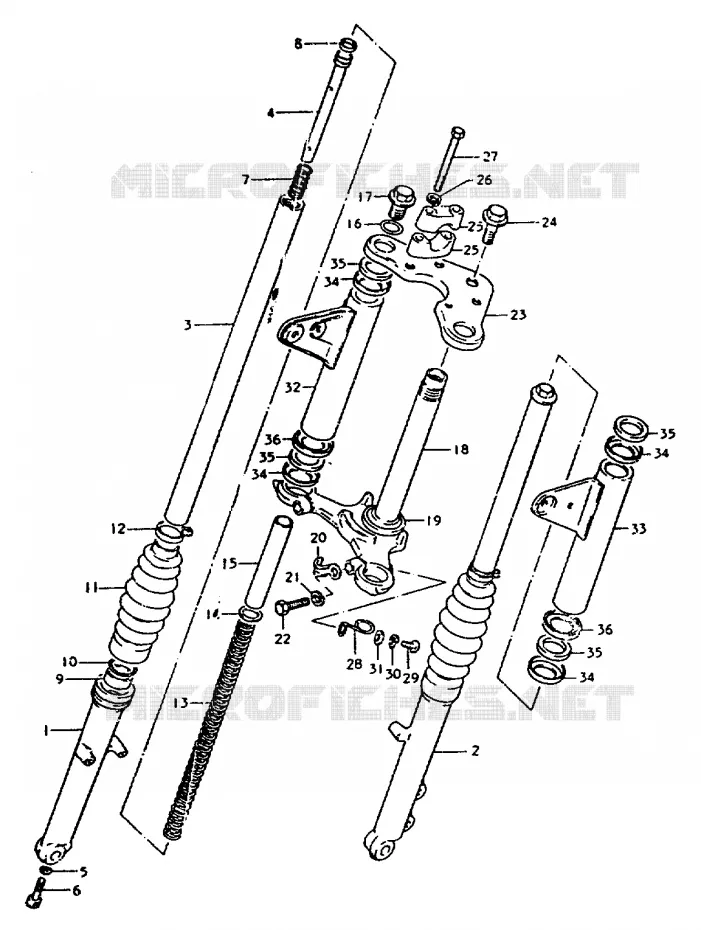

FRONT FORK FOR SUZUKI ZR 50 1999

FRONT WHEEL (ZR50KEX) FIG.39 (G-8) : ZR50KX E22

OUTER TUBE, RH

51131-46101-000 5113146101000

Not available

OUTER TUBE, LH

51141-46101-000 5114146101000

Not available

INNER TUBE

51110-46190-000 5111046190000

Not available

PIPE, SEAT

51146-46100-000 5114646100000

Not available

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

SPRING, REBOUND
SPRING

51177-46100-000 5117746100000

$8,97

Unit Price

RING, PISTON

51196-46100-000 5119646100000

$14,97

Unit Price

DISCONTINUED

51153-46101-000 5115346101000

Not available

RING, OIL SEAL STOPPER

51156-46100-000

51156-48130-000

$9,97

Unit Price

BOOT

51571-46120-000 5157146120000

Not available

BAND

09402-30306-000 0940230306000

Not available

FORK ASSY, FRONT

51106-46160-000 5110646160000

Not available

SPRING

51171-46190-000 5117146190000

Not available

JOINT, SPRING
WASHER

51192-46100-000 5119246100000

$6,97

Unit Price

DISCONTINUE
SPACER

51176-46100-000 5117646100000

Not available

SEAL NUT O RING

51181-46190-000

09280-18004-000

$8,97

Unit Price

CAP
BOLT

51351-46190-000 5135146190000

$29,97

Unit Price

STEERING STEM

51410-46160-000 5141046160000

Not available

RACE, STEERING OUTER LWR
OUTER RACE, LOWER

51621-33001-000 5162133001000

$14,97

Unit Price

DISCONTINUED

51452-08030-000 5145208030000

Not available

.LOCK WASHER

08321-21108-000 0832121108000

Not available

BOLT

01107-10308-000

01500-1030A-000

$4,97

Unit Price

STEERING STEM HEAD

51310-46400-291 5131046400291

Not available

BOLT

51352-46101-000 5135246101000

$15,97

Unit Price

HOLDER, HANDLE UPR
HOLDER, HANDLEBAR

56211-27200-291 5621127200291

$23,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

BOLT

01107-08558-000

01500-08557-000

$5,97

Unit Price

CLIP

51452-46100-000 5145246100000

Not available

SCREW

02112-06128-000

02112-06127-000

$3,97

Unit Price

LOCK WASHER

08321-21068-000 0832121068000

Not available

WASHER

08322-21068-000 0832221068000

Not available

BRACKET, HEADLAMP RH

51530-46120-05H 515304612005H

Not available

BRACKET, HEADLAMP RH

51530-46120-07P 515304612007P

Not available

BRACKET, HEADLAMP RH

51530-46120-189 5153046120189

Not available

BRACKET, HEADLAMP LH

51540-46120-05H 515404612005H

Not available

BRACKET, HEADLAMP LH

51540-46120-07P 515404612007P

Not available

BRACKET, HEADLAMP LH

51540-46120-189 5154046120189

Not available

SEAT, CUSHION

51555-46120-000 5155546120000

Not available

CUSHION

51553-27410-000 5155327410000

Not available

SEAT, HEADLAMP BRACKET

51551-46120-000 5155146120000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of ZR. Let us know if you have any questions.
