SWINGARM

REAR WHEEL FOR SUZUKI MINIQUAD-SPORT 50 2002

OPTIONS

Item numbers

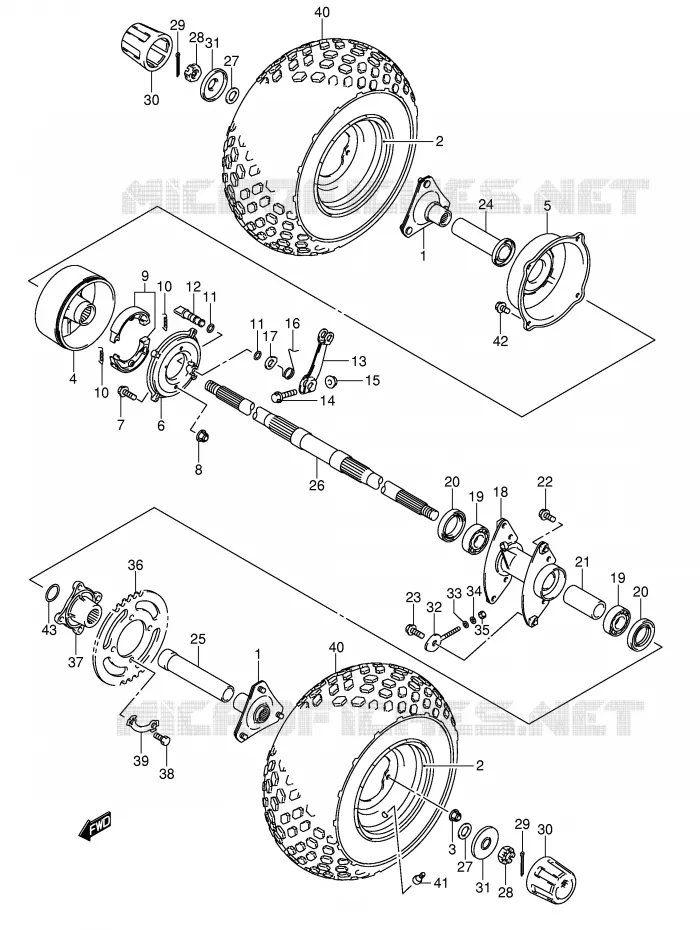

REAR WHEEL Suzuki QUAD 50 MINIQUAD-SPORT 2002 LT-A50K2(P2)
1
1
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27
28
28
29
29
30
30
31
31
32
33
34
35
36
37
38
39
40
40
41
42
43
1
HUB, RR WHEEL
HUB, REAR WHEEL

64110-43F00-000   6411043F00000

6411043F00000

Unit Price

2
RIM, RR WHEEL(7X6.0AT)(SILVER)
RIM, REAR WHEEL (7X6.0AT) (SILVER)

65310-43F00-13L   6531043F0013L

6531043F0013L

Unit Price

3
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
4
DRUM, RR BRAKE
DRUM, REAR BRAKE

64121-43F00-000   6412143F00000

6412143F00000

Unit Price

5
COVER, RR BRAKE DRUM
COVER, REAR BRAKE

64123-43F00-000   6412343F00000

6412343F00000

Unit Price

6
DISCONTINUE
PANEL, REAR BRAKE ANCHOR

64210-43F00-000   6421043F00000

6421043F00000
Not available
7
BOLT

64251-04600-000  

09119-08091-000
 6425104600000

Unit Price

8
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
9
SHOE SET, BRAKE

54401-43810-000   5440143810000

5440143810000

Unit Price

10
SPRING

09443-07044-000   0944307044000

0944307044000

Unit Price

11
O RING
O RING

09280-12012-000   0928012012000

0928012012000

Unit Price

12
DISCONTINUE
CAM, BRAKE

64441-43F00-000   6444143F00000

6444143F00000
Not available
13
DISCONTINUE
LEVER, BRAKE CAM

64451-43F00-000   6445143F00000

6445143F00000
Not available
14
BOLT(6X32)
BOLT

09103-06135-000   0910306135000

0910306135000

Unit Price

15
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

16
SPRING, RR BRAKE CAM LEVER
SPRING, BRAKE CAM LEVER

64484-43F00-000   6448443F00000

6448443F00000

Unit Price

17
PLATE, BRAKE LINING INDICATOR
PLATE

64492-43F00-000   6449243F00000

6449243F00000

Unit Price

18
DISCONTINUE
HOUSING, AXLE BEARING

64720-43F00-000   6472043F00000

6472043F00000
Not available
19
BEARING,28X52X12
BEARING, 28X52X12

09262-28043-000  

09262-28063-000
 0926228043000

Unit Price

20
SEAL, OIL(35X52X8)
OIL SEAL

09283-35005-000   0928335005000

0928335005000

Unit Price

21
DISCONTINUE
SPACER, AXLE BEARING

64731-43F00-000   6473143F00000

6473143F00000
Not available
22
BOLT

01580-08203-000  

01580-0820A-000
 0158008203000

Unit Price

23
BOLT

01580-08253-000  

01580-0825A-000
 0158008253000

Unit Price

24
DISCONTINUE
SPACER, AXLE RH

64740-43F00-000   6474043F00000

6474043F00000
Not available
25
DISCONTINUE
SPACER, AXLE LH

64751-43F00-000   6475143F00000

6475143F00000
Not available
26
DISCONTINUE
AXLE, REAR

64711-43F00-000   6471143F00000

6471143F00000
Not available
27
WASHER, RR AXLE
WASHER, REAR AXLE

64723-02410-000   6472302410000

6472302410000

Unit Price

28
NUT

08314-40163-000  

08314-4016B-000
 0831440163000

Unit Price

29
PIN

04111-40308-000  

04111-4030A-000
 0411140308000

Unit Price

30
CAP, WHEEL CTR
CAP, WHEEL CENTER

54725-18A00-000   5472518A00000

5472518A00000

Unit Price

31
HOLDER, CTR CAP
HOLDER, CAP

64726-40B00-000   6472640B00000

6472640B00000

Unit Price

32
ADJUSTER, CHAIN

61411-04600-000   6141104600000

6141104600000

Unit Price

33
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

34
08321-0106A
LOCK WASHER

08321-01063-000  

0832101063000
Not available
35
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
36
SPROCKET, RR(37T)
SPROCKET, REAR (NT:37)

64511-43F00-000   6451143F00000

6451143F00000

Unit Price

37
FLANGE, RR SPROCKET MOUNTING
FLANGE, MOUNTING

64611-43F00-000   6461143F00000

6461143F00000

Unit Price

38
BOLT

64541-04600-000  

09100-08298-000
 6454104600000

Unit Price

39
WASHER
WASHER

09169-08012-000   0916908012000

0916908012000

Unit Price

40
TIRE

55110-43F00-000  

55110-43F10-000
 5511043F00000

Unit Price

41
VALVE ASSY,WHEEL RIM(TR412)<br />VALVE ASSY, WHEEL RIM
VALVE ASSY, WHEEL RIM(TR412)
VALVE ASSY, WHEEL RIM

43130-24A00-000   4313024A00000

4313024A00000

Unit Price

42
BOLT

01547-06103-000  

01547-0610B-000
 0154706103000

Unit Price

43
RING, SNAP
RING, STOPPER

09380-23001-000   0938023001000

0938023001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 50 MINIQUAD-SPORT 2002
