CRANKCASE (MODEL L E41) REFER TO FIG.2A (B-4) FOR MODEL K E6

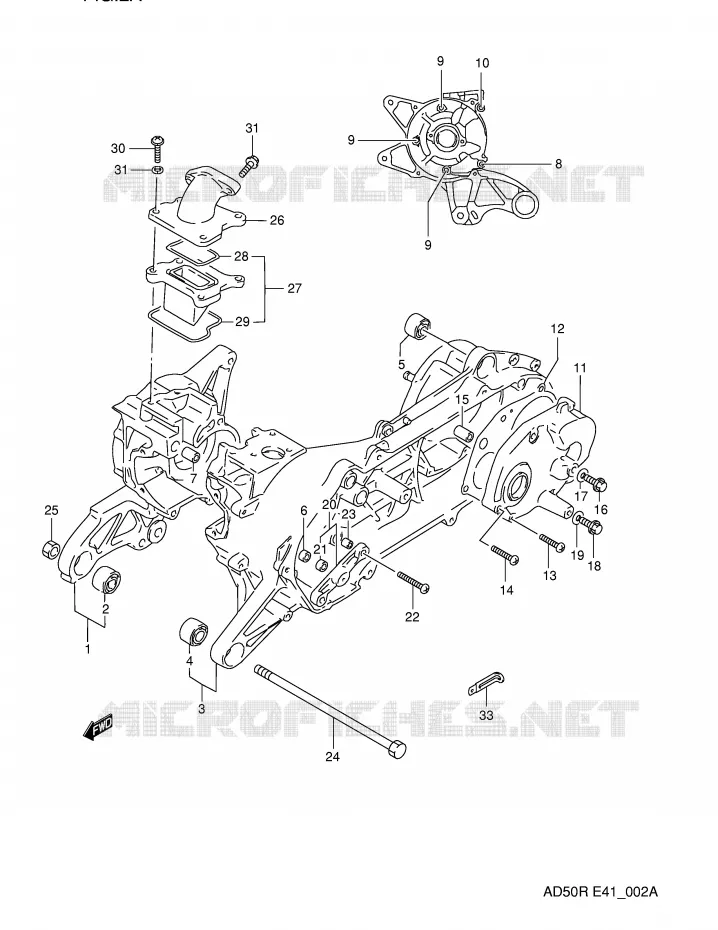

CRANKCASE (MODEL K E6) FOR SUZUKI AD 50 1990

CRANKCASE (MODEL M / R)

Item numbers

CRANKCASE SET, RH

11310-37816-000 1131037816000

Not available

BUSH

09319-10050-000 0931910050000

$34,97

Unit Price

CRANKCASE SET, LH

11320-37814-000 1132037814000

Not available

CRANKCASE SET, LH

11320-37817-000 1132037817000

Not available

BUSH

09319-10050-000 0931910050000

$34,97

Unit Price

BUSH(10.2X22.3X20)
BUSH

09319-10032-000 0931910032000

$12,97

Unit Price

BUSH

09300-08016-000 0930008016000

$5,97

Unit Price

DOWEL PIN
PIN

04211-11189-000 0421111189000

$3,97

Unit Price

SCREW 6X40
SCREW

02112-06407-000 0211206407000

$3,97

Unit Price

SCREW, 6X45
SCREW

02112-06457-000 0211206457000

$3,97

Unit Price

SCREW

02112-06858-000

02112-06857-000

$3,97

Unit Price

DISCONTINUE
COVER, GEAR BOX

11431-37B02-000 1143137B02000

Not available

GASKET, GEAR BOX COVER

11484-41D20-000

11484-41D30-000

$12,97

Unit Price

SCREW

02112-06257-000

02112-0625A-000

$2,97

Unit Price

SCREW

02112-06308-000

02112-06307-000

$3,97

Unit Price

DOWEL PIN
PIN

04211-11189-000 0421111189000

$3,97

Unit Price

BOLT

01517-08126-000

01550-0812B-000

$4,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

BOLT

01517-06126-000

01517-06123-000

$3,97

Unit Price

TACH GEAR WASHER
GASKET (6.2X11X1.2)

09168-06004-000 0916806004000

$2,97

Unit Price

DISCONTINUE
CAP SET, STARTER IDLE GEAR

11380-37811-000 1138037811000

Not available

BUSH

09300-08016-000 0930008016000

$5,97

Unit Price

SCREW

02112-06308-000

02112-06307-000

$3,97

Unit Price

PIN
PIN (H:10)

04211-09109-000 0421109109000

$2,97

Unit Price

BOLT (10X185)

09100-10267-000 0910010267000

Not available

NUT

08310-12108-000

08310-00107-000

$3,97

Unit Price

PIPE, INTAKE

13111-29C01-000 1311129C01000

Not available

DISCONTINUE
VALVE ASSY, REED

13150-37B01-000 1315037B01000

Not available

DISCONTINUE
O RING, REED VALVE

13156-37B00-000 1315637B00000

Not available

DISCONTINUE
O RING, REED VALVE

13155-37B00-000

Not available

SCREW

02112-06256-000

02112-0625A-000

$2,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

SCREW
SCREW (6X20)

09128-06071-000 0912806071000

$5,97

Unit Price

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price
