LEFT CRANKCASE COVER

CRANKSHAFT FOR SUZUKI AD 50 1991

CARBURETOR (MODEL L E41 ~E.NO.211604) REFER TO FIG.5A (B-11) FOR MODEL K %E.NO.211604

Item numbers

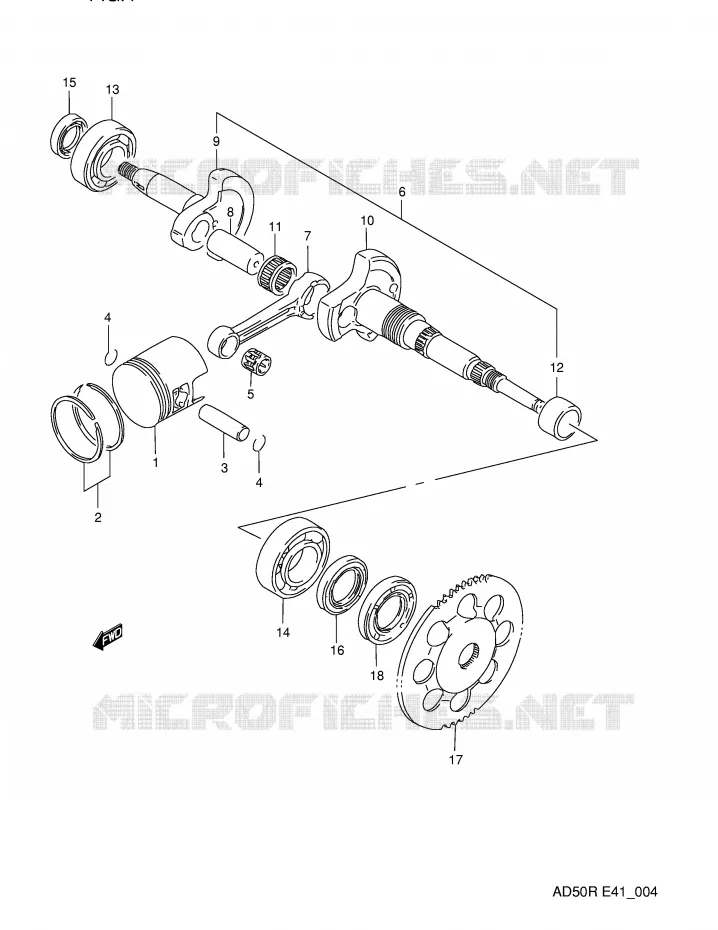

CRANKSHAFT Suzuki SCOOTER 50 AD 1991 AD50WFM(E41)
1
1
1
1
2
2
2
2
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
1
PISTON SET(OS:0.5)

12110-40D10-050  

12100-40D10-050
 1211040D10050

Unit Price

1
PISTON (41.00MM)
PISTON

12110-40D10-0F0   1211040D100F0

1211040D100F0

Unit Price

1
PISTON (OS:0.5)

12110-29C10-050   1211029C10050

1211029C10050
Not available
1
PISTON

12110-29C10-0F0   1211029C100F0

1211029C100F0
Not available
2
RING SET, PISTON

12140-29C40-000   1214029C40000

1214029C40000

Unit Price

2
RING SET, PISTON(OS:0.50)
RING SET, PISTON (OS:0.5)

12140-46110-050   1214046110050

1214046110050

Unit Price

2
RING SET, PISTON (OS:0.5)

12140-29C40-050   1214029C40050

1214029C40050
Not available
2
RING SET, PISTON

12140-29C50-000   1214029C50000

1214029C50000
Not available
3
PIN, PISTON

12151-46501-000  

12151-35E00-000
 1215146501000

Unit Price

4
CIRCLIP

09381-10006-000  

0938110006000
Not available
5
09263-10018
BEARING, PISTON PIN

09263-10017-000  

0926310017000
Not available
6
CRANKSHAFT ASSY

12200-37B02-000   1220037B02000

1220037B02000
Not available
7
CONNECTING ROD

12161-37B01-000  

12161-37B03-000
 1216137B01000

Unit Price

8
PIN, CRANK

12211-37B00-000   1221137B00000

1221137B00000

Unit Price

9
CRANKSHAFT, RH

12221-37B00-000   1222137B00000

1222137B00000
Not available
10
CRANKSHAFT, LH

12261-37B02-0A0   1226137B020A0

1226137B020A0
Not available
11
BEARING(16X22X11.8)

09263-16016-000  

09263-16034-000
 0926316016000

Unit Price

12
DISCONTINUE
SPACER

09180-18010-000   0918018010000

0918018010000
Not available
13
BEARING(20X47X14)

09262-20108-000  

09262-20140-000
 0926220108000

Unit Price

14
BEARING (25X52X13)

09262-25100-0A0   09262251000A0

09262251000A0

Unit Price

15
OIL SEAL, 17X27X6

09283-17019-000  

09283-17026-000
 0928317019000

Unit Price

16
OIL SEAL
OIL SEAL (25X37X6)

09283-25084-000   0928325084000

0928325084000

Unit Price

17
GEAR, STARTER

12622-37B01-000   1262237B01000

1262237B01000

Unit Price

18
SEAL, OIL(24X43X6)
OIL SEAL (24X43X6)

09284-24001-000   0928424001000

0928424001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
