Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MUFFLER

OIL PUMP FOR SUZUKI ADDRESS 50 1992

TRANSMISSION (1)

Item numbers

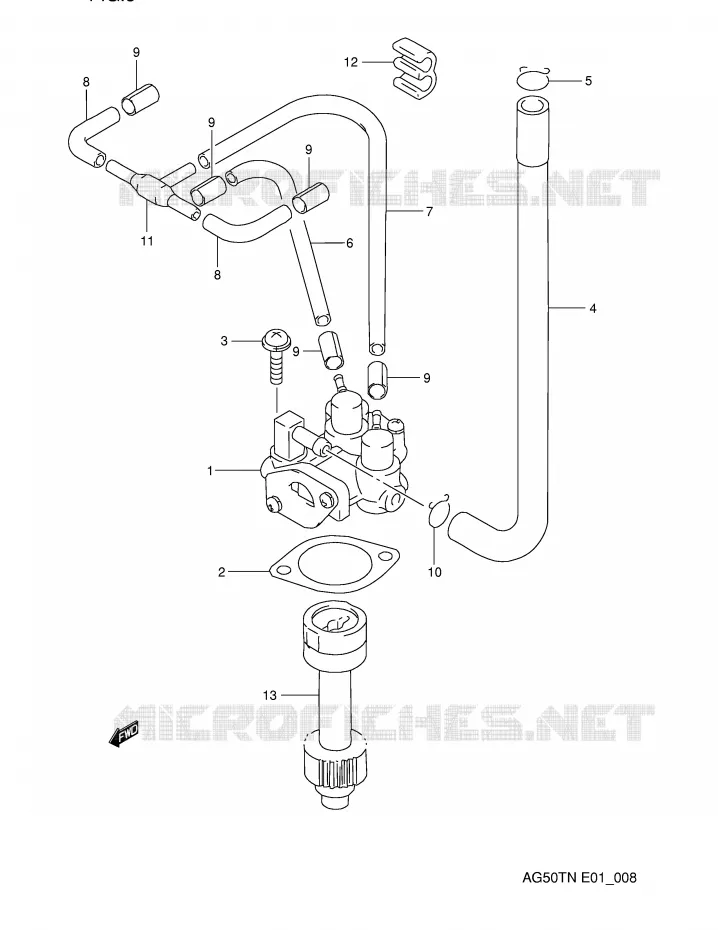

OIL PUMP Suzuki SCOOTER 50 ADDRESS 1992 AG50TN(E1)
1
2
2
3
4
5
6
7
8
8
9
9
9
9
9
10
11
12
13
1
PUMP ASSY, OIL

16100-40D00-000   1610040D00000

1610040D00000
Not available
2
GASKET, OIL PUMP

16731-02300-000   1673102300000

1673102300000

Unit Price

3
SCREW

02112-35163-000  

02112-3516A-000
 0211235163000

Unit Price

4
HOSE (4.5X8.5X600)

09359-45852-600   0935945852600

0935945852600
Not available
5
CLIP

09401-09101-000  

0940109101000
Not available
6
09352-20504-600<br />HOSE (2X5X600)
09352-20504-600
HOSE (2X5X600)

09352-20503-600  

0935220503600
Not available
7
09352-20504-600<br />HOSE (2X5X600)
09352-20504-600
HOSE (2X5X600)

09352-20503-600  

0935220503600
Not available
8
09352-20504-600<br />HOSE (2X5X600)
09352-20504-600
HOSE (2X5X600)

09352-20503-600  

0935220503600
Not available
9
OIL HOSECLAMP<br />CLIP
OIL HOSECLAMP
CLIP

09401-04401-000   0940104401000

0940104401000

Unit Price

10
OIL HOSE CLAMP<br />CLIP
OIL HOSE CLAMP
CLIP

09401-08401-000   0940108401000

0940108401000

Unit Price

11
JOINT

09367-03001-000   0936703001000

0936703001000
Not available
12
CLIP
CLIP

09408-00066-000   0940800066000

0940800066000

Unit Price

13
GEAR, OIL PUMP DRIVEN (NT:30)

16331-29C00-000   1633129C00000

1633129C00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of ADDRESS. Let us know if you have any questions.

Genuine parts for Suzuki 50 ADDRESS 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 ADDRESS 1992

Select your Suzuki 1992 model

50 ADDRESS 1992 AG50TN(E1)

Suzuki ADDRESS

Displacement: 50 cc
Year: 1992
Model code AG50TN(E1)
