UPPER COVER

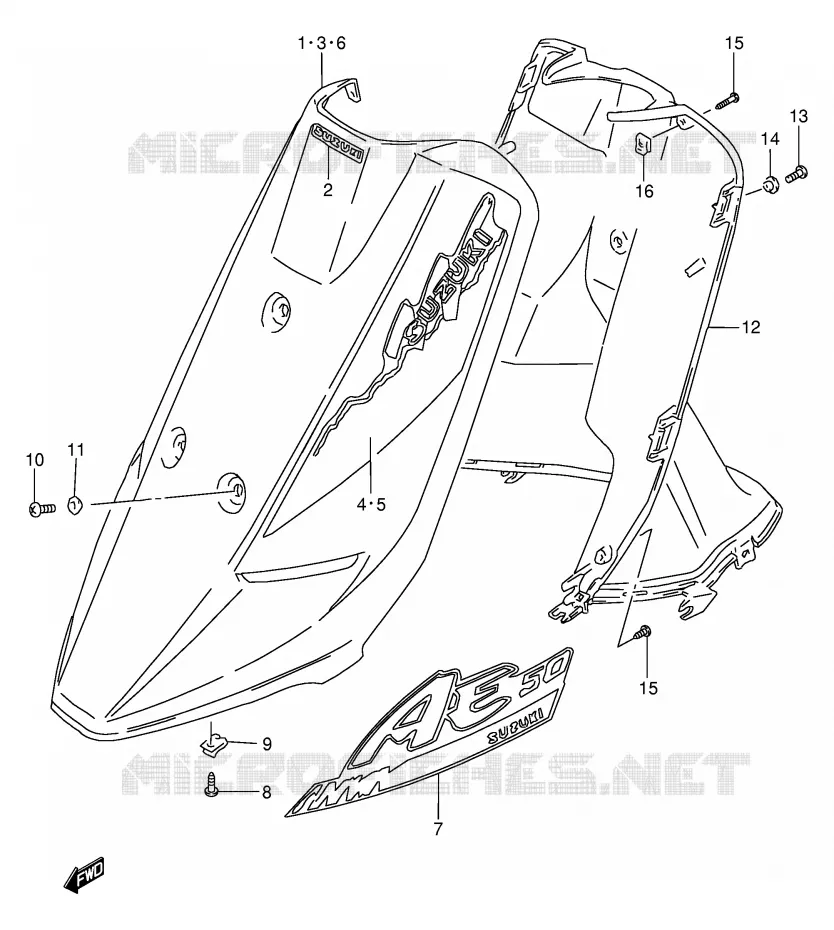

LEG SHIELD (AE50L / M / N / P) FOR SUZUKI AE 50 1990

LEG SHIELD (AE50RP / RR / RS) REFER TO FIG.28B(F-4) FOR AE50RT/RV

Item numbers

48111-36C00-019
SHIELD, LEG FRONT (BLACK)

48110-36C70-13Z 4811036C7013Z

Not available

48111-36C00-39J
SHIELD, LEG FRONT (RED)

48110-36C70-39J 4811036C7039J

Not available

68165-16B00-0JW
EMBLEM

68165-16B00-064 6816516B00064

Not available

48111-36C00-019
SHIELD, LEG FRONT (BLACK)

48110-36D00-13Z 4811036D0013Z

Not available

48111-36C00-28V
SHIELD, LEG FRONT (RED)

48110-36D00-28V 4811036D0028V

Not available

EMBLEM, RH

68645-36D00-1FU 6864536D001FU

Not available

EMBLEM, RH

68645-36D00-1FV 6864536D001FV

Not available

EMBLEM, LH

68655-36D00-1FU 6865536D001FU

Not available

EMBLEM, LH

68655-36D00-1FV 6865536D001FV

Not available

DISCONTINUE

48110-36D50-019

Not available

DISCONTINUE

48110-36D50-0MA

Not available

DISCONTINUE

48110-36D50-14C

Not available

48111-36C00-39J
SHIELD, LEG FRONT (RED)

48110-36D50-39J 4811036D5039J

Not available

DISCONTINUE
EMBLEM

68641-36D20-B0W 6864136D20B0W

Not available

EMBLEM

68641-36D20-B0Z 6864136D20B0Z

Not available

DISCONTINUE

68641-36D20-B1A

Not available

SCREW

03242-05163-000

03241-0516A-000

$2,97

Unit Price

NUT

09148-05020-000 0914805020000

$3,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

SCREW

09139-06083-000 0913906083000

$3,97

Unit Price

WASHER

09169-06034-000

09169-06071-000

$4,97

Unit Price

DISCONTINUE
COVER, LEG SHIELD (BLACK)

92111-36C00-291 9211136C00291

Not available

COVER, LEG SHIELD (WHITE)

92111-36C00-29L 9211136C0029L

Not available

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

WASHER

09169-06034-000

09169-06071-000

$4,97

Unit Price

SCREW

03541-04165-000

03541-0416A-000

$2,97

Unit Price

NUT

09148-04024-000 0914804024000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEG SHIELD (AE50L/M/N/P) of your Suzuki of AE. Let us know if you have any questions.
