Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEFT CASING

CRANKSHAFT FOR SUZUKI AE 50 1991

CARBURETOR

Item numbers

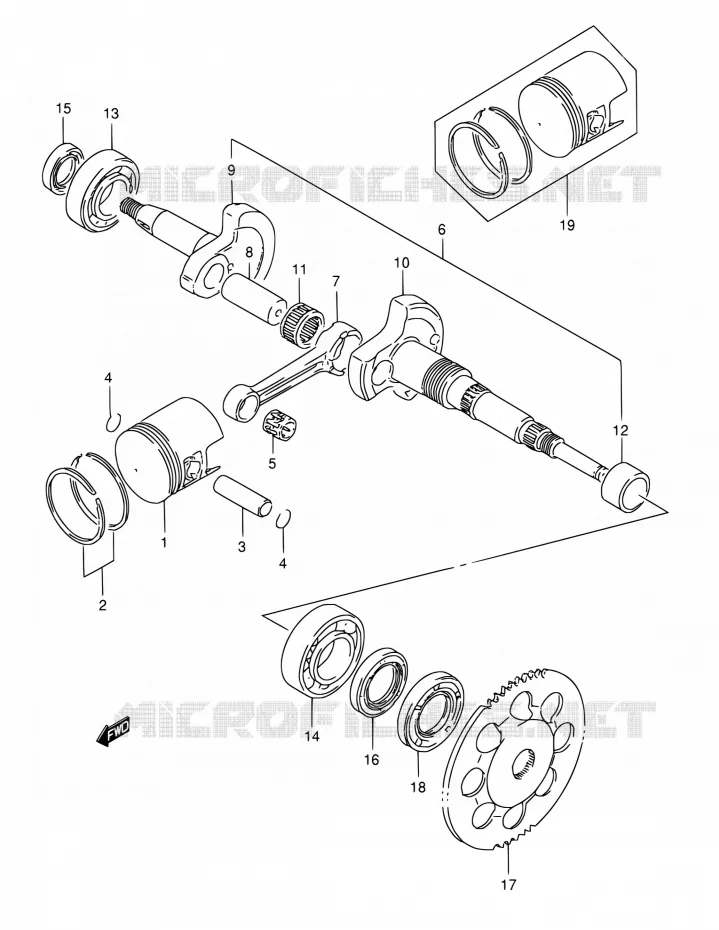

CRANKSHAFT Suzuki SCOOTER 50 AE 1991 AE50M(E24)
1
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
PISTON (41.00MM)
PISTON

12110-40D10-0F0   1211040D100F0

1211040D100F0

Unit Price

1
DISCONTINUE
PISTON

12110-40D20-0F0   1211040D200F0

1211040D200F0
Not available
2
RING SET, PISTON

12140-29C40-000   1214029C40000

1214029C40000

Unit Price

2
DISCONTINUE
RING SET, PISTON

12140-29C60-000   1214029C60000

1214029C60000
Not available
3
PIN, PISTON

12151-03A00-0A0  

12151-35E00-000
 1215103A000A0

Unit Price

4
CIRCLIP

09381-10006-000  

0938110006000
Not available
5
09263-10018
BEARING, PISTON PIN

09263-10017-000  

0926310017000
Not available
6
DISCONTINUE

12200-36C02-000  

1220036C02000
Not available
7
CONNECTING ROD

12161-37B02-000  

12161-37B03-000
 1216137B02000

Unit Price

8
.PIN, CRANK

12211-37B00-000   1221137B00000

1221137B00000

Unit Price

9
DISCONTINUE
.CRANKSHAFT, RH

12221-36C00-000   1222136C00000

1222136C00000
Not available
10
DISCONTINUE
.CRANKSHAFT, LH

12261-36C01-0A0   1226136C010A0

1226136C010A0
Not available
11
BEARING(16X22X11.8)

09263-16016-000  

09263-16034-000
 0926316016000

Unit Price

12
DISCONTINUE
.SPACER

09180-18010-000   0918018010000

0918018010000
Not available
13
BEARING(20X47X14)

09262-20108-000  

09262-20140-000
 0926220108000

Unit Price

14
BEARING(25X52X13)
BEARING, LH (25X52X13)

09262-25100-0A0   09262251000A0

09262251000A0

Unit Price

15
OIL SEAL, 17X27X6

09283-17017-000  

09283-17026-000
 0928317017000

Unit Price

16
OIL SEAL
OIL SEAL, LH (25X37X6)

09283-25084-000   0928325084000

0928325084000

Unit Price

17
GEAR, STARTER

12622-37B01-000   1262237B01000

1262237B01000

Unit Price

18
SEAL, OIL(24X43X6)
OIL SEAL (24X43X6)

09284-24001-000   0928424001000

0928424001000

Unit Price

19
PISTON SET (OS:0.5)

12100-40D10-050   1210040D10050

1210040D10050

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of AE. Let us know if you have any questions.

Genuine parts for Suzuki 50 AE 1991

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 AE 1991

Select your Suzuki 1991 model

50 AE 1991 AE50M(E24)

Suzuki AE

Displacement: 50 cc
Year: 1991
Model code AE50M(E24)
