Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION (1)

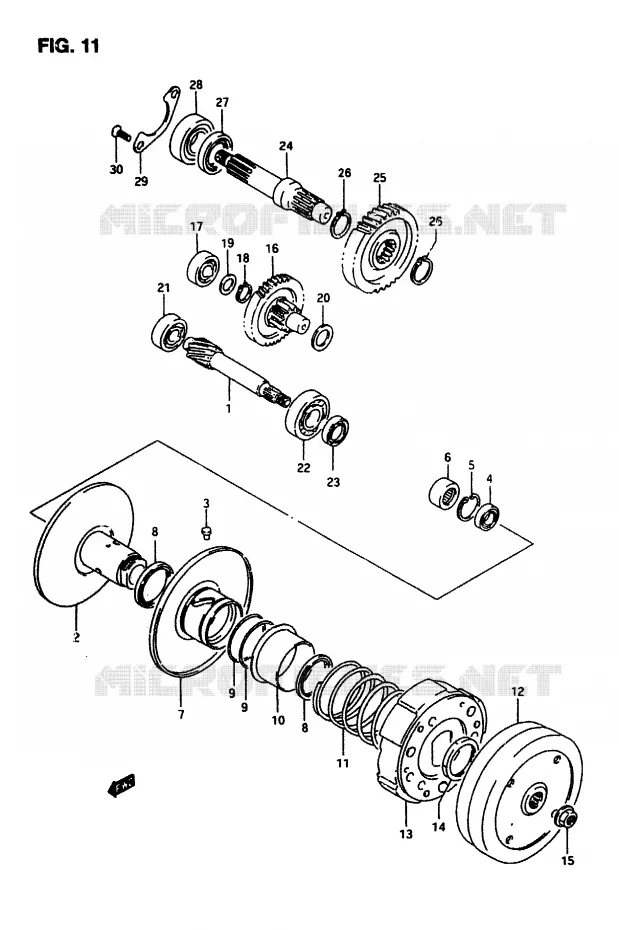

TRANSMISSION (2) FOR SUZUKI AP 50 2007

KICK STARTER

SHAFT, DRIVE (NT:11)

24131-36C10-000 2413136C10000

Not available

DISCONTINUE
FACE, FIXED DRIVEN

21210-04C00-000 2121004C00000

Not available

DISCONTINUE
PIN

09201-06005-000 0920106005000

Not available

BALL BEARING
BEARING (12X24X6)

09262-12018-000 0926212018000

$27,97

Unit Price

CIRCLIP

08331-41246-000

08331-41249-000

$3,97

Unit Price

BEARING
BEARING (17X25X16.7)

09263-17042-000 0926317042000

$45,97

Unit Price

DISCONTINUE
FACE, MOVABLE DRIVEN

21240-09E01-000 2124009E01000

Not available

SEAL, OIL
OIL SEAL (34X41X4)

09283-34007-000 0928334007000

$14,97

Unit Price

O RING
O RING (D:4.6, ID:41.9)

09280-41005-000 0928041005000

$4,97

Unit Price

SHEET, MOVABLE DRIVEN

21471-03A03-000

21471-03A11-000

$8,97

Unit Price

SPRING

09440-52007-000 0944052007000

$68,97

Unit Price

HOUSING, CLUTCH

21220-04C11-000

21220-04C21-000

$127,97

Unit Price

CLUTCH ASSY, SHOE

21501-29C01-000 2150129C01000

Not available

NUT

09140-28004-000 0914028004000

$13,97

Unit Price

NUT

08316-10103-000

08316-1010B-000

$4,97

Unit Price

SHAFT, IDLE

24150-10E00-000 2415010E00000

Not available

SHAFT, IDLE

24150-10E10-000 2415010E10000

Not available

BEARING

08113-62017-000

08113-6201B-000

$19,97

Unit Price

CIRCLIP

08331-31156-000

08331-3115A-000

$3,97

Unit Price

THRUST WASHER

08211-12201-000 0821112201000

Not available

THRUST WASHER

08211-16251-000 0821116251000

Not available

BEARING

08113-62017-000

08113-6201B-000

$19,97

Unit Price

BEARING

08113-63030-000 0811363030000

$29,97

Unit Price

SEAL, OIL(17X27X5)
OIL SEAL (17X27X5)

09283-17018-000 0928317018000

$16,97

Unit Price

SHAFT, REAR AXLE

24141-36C11-000 2414136C11000

Not available

GEAR, FINAL DRIVEN (NT:41)

24371-10E10-000 2437110E10000

Not available

CIRCLIP

08331-31226-000

08331-31229-000

$3,97

Unit Price

OIL SEAL, DR SFT
OIL SEAL (27X40X6)

09283-27010-000 0928327010000

$16,97

Unit Price

BEARING

08130-62047-000 0813062047000

$32,97

Unit Price

RETAINER, DRIVE SHAHFT BEARING
RETAINER, BEARING

24751-07900-000 2475107900000

$4,97

Unit Price

SCREW

02122-06123-000

02122-0612B-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
