Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION (1)

TRANSMISSION (2) FOR SUZUKI CS 50 1983

TRANSMISSION (3)

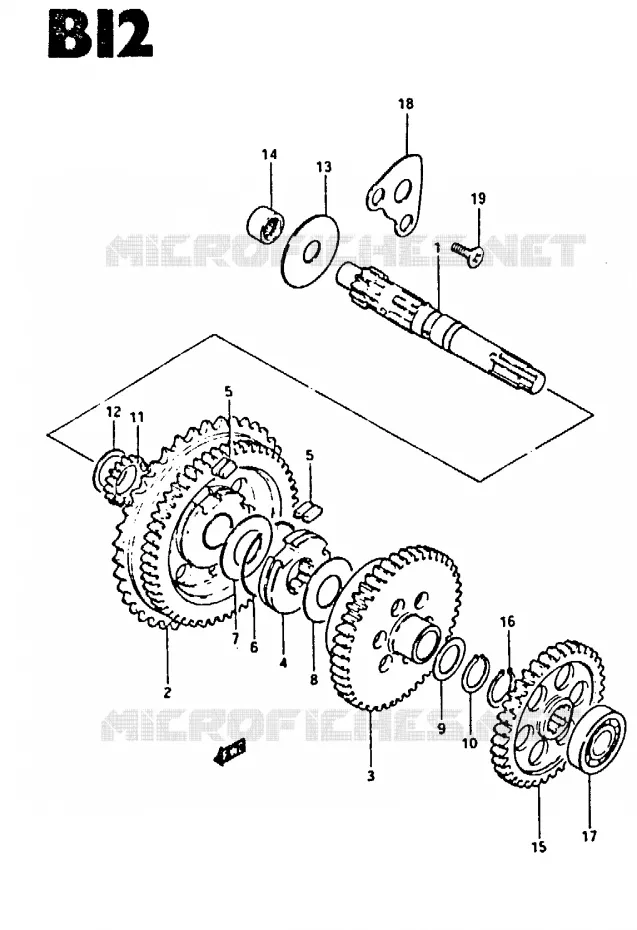

TRANSMISSION (2) Suzuki SCOOTER 50 CS 1983 CS50GD(Z/D)
1
DRIVESHAFT (NT:11)

24131-02103-000   2413102103000

2413102103000
Not available
1
DRIVESHAFT (NT:11)

24131-02104-000   2413102104000

2413102104000
Not available
2
SPROCKET ASSY, PRIMARY DRIVEN

21200-02103-000   2120002103000

2120002103000
Not available
3
GEAR, 2ND DRIVEN (NT:46)

24320-02103-000   2432002103000

2432002103000
Not available
4
INNER, OVER RUN ONE WAY

21262-02112-000   2126202112000

2126202112000
Not available
5
DISCONTINUED

21263-02401-000   2126302401000

2126302401000
Not available
6
RING

09381-35002-000   0938135002000

0938135002000
Not available
7
THRUST WASHER
THRUST WASHER, CENTER

08211-17341-000   0821117341000

0821117341000

Unit Price

8
THRUST WASHER, LH

09160-14023-000   0916014023000

0916014023000
Not available
9
WASHER

08211-14201-000  

09181-14139-000
 0821114201000

Unit Price

10
CIRCLIP

08331-11149-000   0833111149000

0833111149000
Not available
11
GEAR, OIL POUMP DRIVE (NT:16)

16321-02100-000   1632102100000

1632102100000
Not available
11
GEAR, OIL POUMP DRIVE (NT:16)

16321-02101-000   1632102101000

1632102101000
Not available
12
THRUST WASHER

08221-17225-000   0822117225000

0822117225000
Not available
13
THRUST WASHER, RH

09160-12046-000   0916012046000

0916012046000
Not available
14
DISCONTINUE
BEARING, RH

09263-12001-000   0926312001000

0926312001000
15
GEAR, 3RD DRIVEN (NT:38)

24331-02103-000   2433102103000

2433102103000
Not available
16
CIRCLIP

08331-11149-000   0833111149000

0833111149000
Not available
17
BALL BEARING

08110-60010-000  

09262-12001-000
 0811060010000

Unit Price

18
PLATE

24872-02100-000   2487202100000

2487202100000
Not available
19
SCREW

02122-05088-000   0212205088000

0212205088000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki of CS. Let us know if you have any questions.

Genuine parts for Suzuki 50 CS 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 CS 1983

Select your Suzuki 1983 model

50 CS 1983 CS50GD(Z/D)

Suzuki CS

Displacement: 50 cc
Year: 1983
Model code CS50GD(Z / D)
