Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR

SWINGARM FOR SUZUKI FB 50 1989

CHAIN GUARD

Item numbers

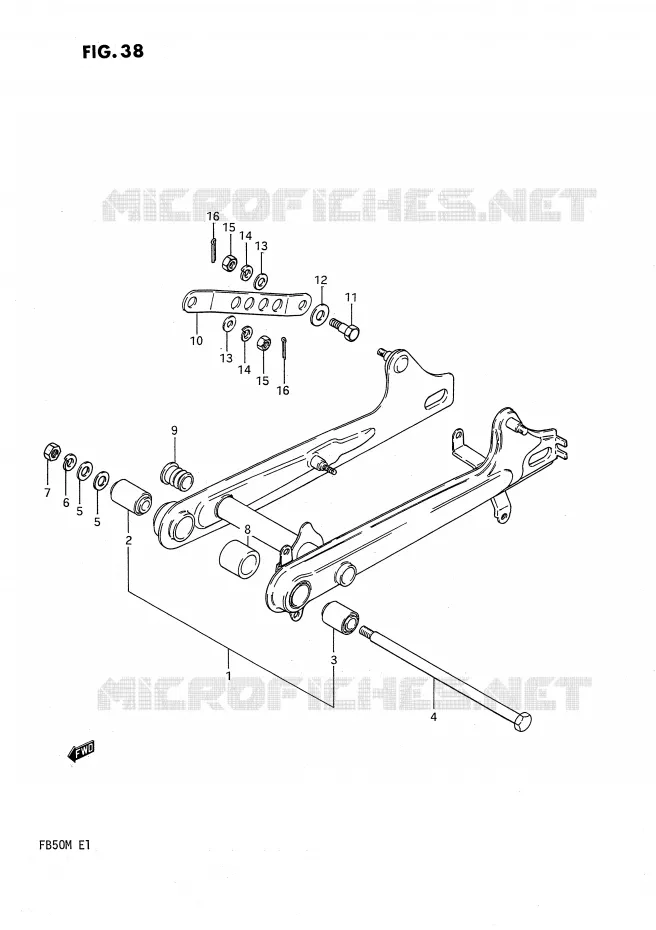

SWINGARM Suzuki SCOOTER 50 FB 1989 FB50K(E1)
2
1
SWINGING ARM ASSY, REAR (RED)

61000-09421-00J   610000942100J

610000942100J
Not available
1
SWINGING ARM ASSY, REAR (GREEN)

61000-09421-33W   610000942133W

610000942133W
Not available
1
SWINGING ARM ASSY, REAR (BROWN)

61000-09421-33Y   610000942133Y

610000942133Y
Not available
2
PIVOT BUSH<br />BUSH, RH
PIVOT BUSH
BUSH, RH

09319-10009-000   0931910009000

0931910009000

Unit Price

3
BUSHING, 10X23X30
BUSH, LH

09319-10043-000   0931910043000

0931910043000

Unit Price

4
SHAFT, PIVOT (L:235)

61211-09420-000   6121109420000

6121109420000
Not available
5
WASHER

08322-21108-000  

08322-01107-000
 0832221108000

Unit Price

6
WASHER

08321-21107-000  

08321-01107-000
 0832121107000

Unit Price

7
NUT

08310-12108-000  

08310-00107-000
 0831012108000

Unit Price

8
CUSHION
CUSHION

09320-22001-000   0932022001000

0932022001000
Not available
9
CAP
CAP

09250-22002-000   0925022002000

0925022002000

Unit Price

10
LINK, REAR TORQUE

64311-09401-000   6431109401000

6431109401000
Not available
11
BOLT

09111-08016-000   0911108016000

0911108016000
Not available
12
CUSHION

64322-09401-000   6432209401000

6432209401000
Not available
13
WASHER

08322-21088-000  

08322-01087-000
 0832221088000

Unit Price

14
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

15
NUT 8MM<br />NUT
NUT 8MM
NUT

09140-08008-000   0914008008000

0914008008000

Unit Price

16
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 50 FB 1989

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 FB 1989

Select your Suzuki 1989 model

50 FB 1989 FB50K(E1)

Suzuki FB

Displacement: 50 cc
Year: 1989
Model code FB50K(E1)
