SWINGARM

CHAIN GUARD FOR SUZUKI FB 50 1991

REAR WHEEL

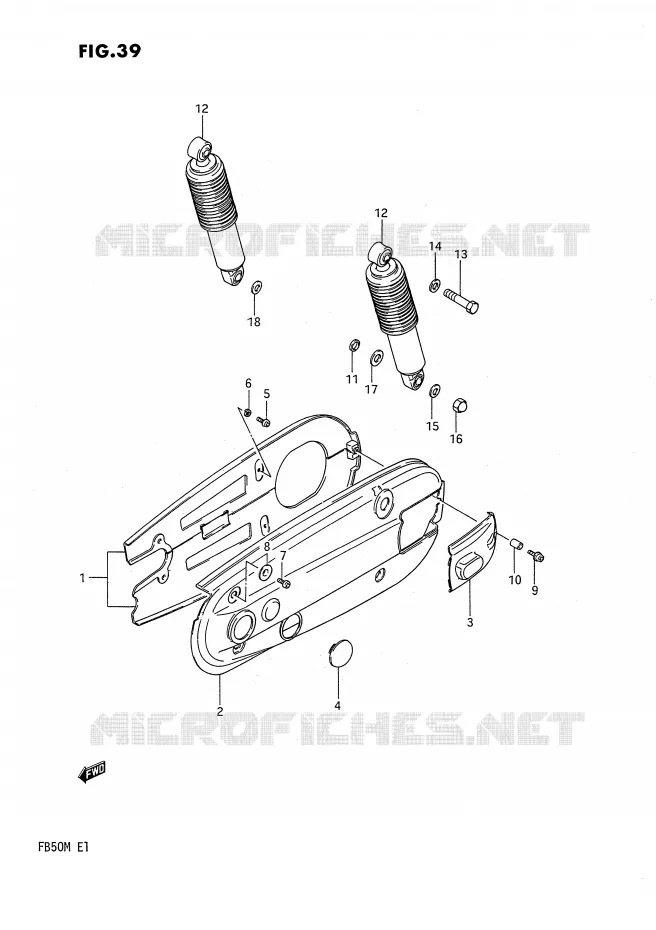

CHAIN GUARD Suzuki SCOOTER 50 FB 1991 FB50M(E1)
1
CASE SET, CHAIN (BLACK)

61301-35811-019   6130135811019

6130135811019
Not available
2
CASE, CHAIN LH (GRAY)

61331-09420-19U   613310942019U

613310942019U
Not available
3
COVER, CHAIN CASE (GRAY)

61332-09400-19U   613320940019U

613320940019U
Not available
4
CAP, LH

61222-09401-000   6122209401000

6122209401000
Not available
5
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000   0211206108000

0211206108000
Not available
5
SCREW

02112-36108-000   0211236108000

0211236108000
Not available
6
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

7
SCREW

02112-06104-000  

02112-0610B-000
 0211206104000

Unit Price

8
WASHER
WASHER

09169-06041-000   0916906041000

0916906041000

Unit Price

9
SCREW

02152-06205-000  

02112-0620A-000
 0215206205000

Unit Price

10
SPACER, FR (6.4X9X10.5)

09180-06090-000   0918006090000

0918006090000
Not available
11
WASHER

09160-12057-000   0916012057000

0916012057000
Not available
12
ABSORBER ASSY, REAR SHOCK

62100-09402-000   6210009402000

6210009402000
Not available
13
BOLT, UPPER

62311-09400-000   6231109400000

6231109400000
Not available
14
WASHER

08322-21108-000  

08322-01107-000
 0832221108000

Unit Price

15
WASHER

08322-21108-000  

08322-01107-000
 0832221108000

Unit Price

16
NUT

08313-11107-000  

08313-10107-000
 0831311107000

Unit Price

17
WASHER(12.5X24X1.6)

09160-12004-000  

09160-12088-000
 0916012004000

Unit Price

18
WASHER, 12.5X24X3.2

09160-12012-000  

09160-12082-000
 0916012012000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CHAIN GUARD of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 50 FB 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 FB 1991

Select your Suzuki 1991 model

50 FB 1991 FB50M(E1)

Suzuki FB

Displacement: 50 cc
Year: 1991
Model code FB50M(E1)
