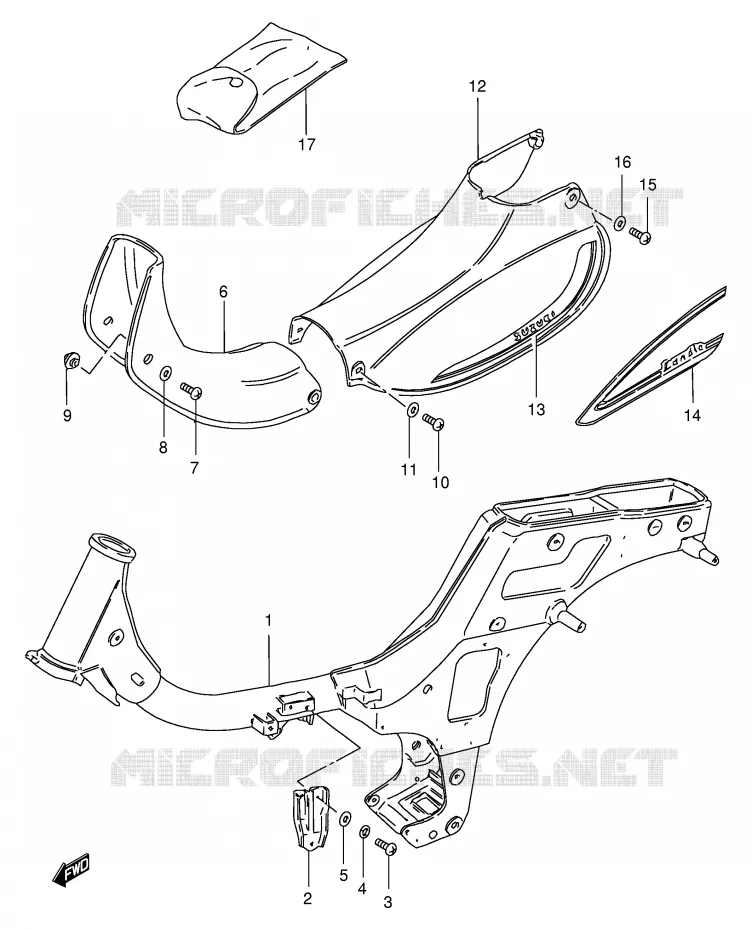

FRAME - FRAME COVER FOR SUZUKI FM 50 1987

CENTER STAND - FOOTREST

Item numbers

FRAME (BRACK)

41100-43210-019 4110043210019

Not available

BRACKET, CRANKCASE

41291-43200-000 4129143200000

Not available

BOLT

01107-06166-000

01107-06163-000

$3,97

Unit Price

WASHER, LOCK

08321-21067-000

08321-01067-000

$2,97

Unit Price

WASHER

08322-21067-000

08322-0106A-000

$3,97

Unit Price

COVER, FRONT (GREEN)

47111-43000-07L 471114300007L

Not available

COVER, FRONT (RED)

47111-43000-07P 471114300007P

Not available

COVER, FRONT (WHITE)

47111-43000-0MA 47111430000MA

Not available

COVER, FRONT (YELLOW)

47111-43000-10K 471114300010K

Not available

COVER, FRONT (PURPLE)

47111-43000-10Y 471114300010Y

Not available

COVER, FRONT (RED)

47111-43000-14C 471114300014C

Not available

COVER, FRONT (WHITE)

47111-43000-189 4711143000189

Not available

SCREW

02142-06307-000 0214206307000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$3,97

Unit Price

SPACER

48198-43000-000 4819843000000

Not available

6 X 20 CROSS SCREW
SCREW

02142-06207-000 0214206207000

$2,97

Unit Price

SCREW

09136-06022-000 0913606022000

$5,97

Unit Price

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$3,97

Unit Price

COVER, REAR (GREEN)

47211-43001-07L 472114300107L

Not available

COVER, REAR (RED)

47211-43001-07P 472114300107P

Not available

COVER, REAR (WHITE)

47211-43001-0MA 47211430010MA

Not available

COVER, REAR (YELLOW)

47211-43001-10K 472114300110K

Not available

COVER, REAR (PURPLE)

47211-43001-10Y 472114300110Y

Not available

COVER, REAR (RED)

47211-43001-14C 472114300114C

Not available

COVER, REAR (WHITE)

47211-43001-189 4721143001189

Not available

TAPE SET, REAR COVER (ORANGE)

68140-43030-05F 681404303005F

Not available

TAPE SET, REAR COVER (WHITE)

68140-43030-064 6814043030064

Not available

TAPE SET, REAR COVER (ORANGE)

68140-43030-719 6814043030719

Not available

TAPE SET, FRAME COVER

68140-43060-1FW 68140430601FW

Not available

TAPE SET, FRAM COVER

68140-43060-1FY 68140430601FY

Not available

SCREW

02142-06307-000 0214206307000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$3,97

Unit Price

TOOL ASSY

09800-03800-000

09800-03801-000

$43,97

Unit Price

TOOL ASSY

09800-21026-000

09800-21080-000

$43,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
