Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FENDER

REAR FENDER FOR SUZUKI FM 50 1991

IGNITION

Item numbers

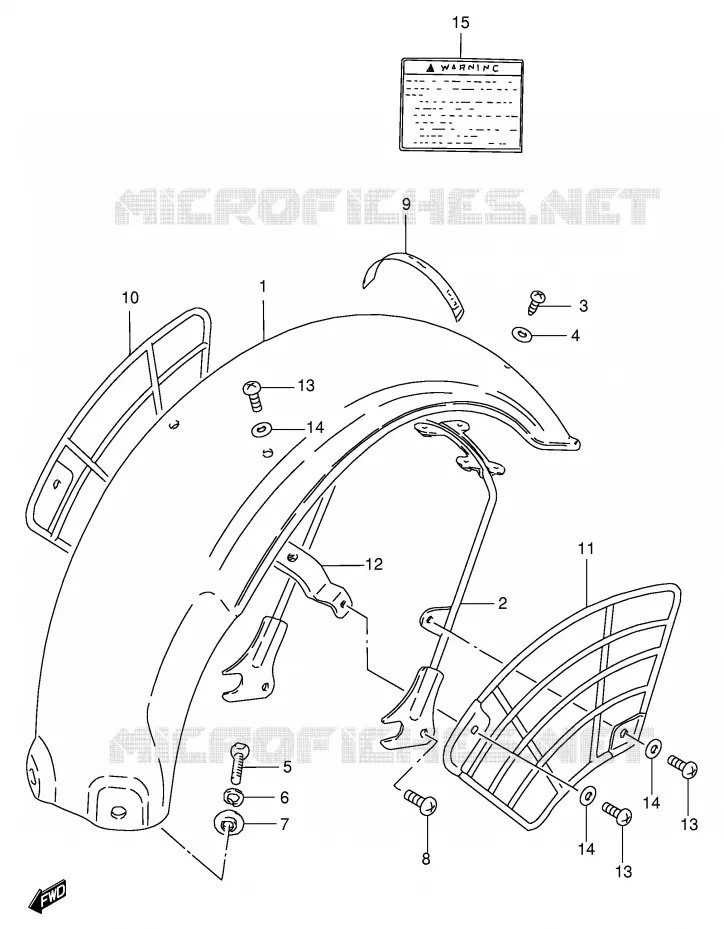

REAR FENDER Suzuki SCOOTER 50 FM 1991 FM50AM(E20)
1
1
2
3
3
3
4
5
5
5
6
7
7
8
9
10
11
12
13
13
13
13
13
13
14
14
14
15
1
FENDER, REAR (WHITE)

63111-43020-189   6311143020189

6311143020189
Not available
1
FENDER, REAR (WHITE)

63111-43030-189   6311143030189

6311143030189
Not available
2
BRACE

63210-43600-000   6321043600000

6321043600000
Not available
3
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

3
SCREW

02112-15128-000  

02142-05127-000
 0211215128000

Unit Price

4
WASHER

08322-21057-000  

08322-01057-000
 0832221057000

Unit Price

5
BOLT

01137-06128-000  

01570-06127-000
 0113706128000

Unit Price

5
BOLT

01570-06123-000  

01570-0612A-000
 0157006123000

Unit Price

5
BOLT, FRONT

01107-06128-000   0110706128000

0110706128000
Not available
6
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

7
F FORK COVER WASHER<br />WASHER
F FORK COVER WASHER
WASHER

09169-06016-000   0916906016000

0916906016000

Unit Price

7
LOCK WASHER<br />WASHER
LOCK WASHER
WASHER

09169-06026-000   0916906026000

0916906026000

Unit Price

8
SCREW
SCREW

02112-06087-000   0211206087000

0211206087000

Unit Price

9
LABEL, COMPANY NAME

68363-26300-000   6836326300000

6836326300000
Not available
10
GUARD, DRESS RH

63510-43600-000   6351043600000

6351043600000
Not available
11
GUARD, DRESS LH

63530-43600-000   6353043600000

6353043600000
Not available
12
BRACE, GUARD UPPER

63520-43600-000   6352043600000

6352043600000
Not available
13
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

13
SCREW

02112-15127-000   0211215127000

0211215127000
Not available
14
WASHER, LOCK

08321-21057-000  

08321-0105A-000
 0832121057000

Unit Price

15
LABEL, GENERAL WARNIN

68319-40C00-000  

68319-33E02-000
 6831940C00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 50 FM 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 FM 1991

Choose your Suzuki 50 1991 FM model

50 FM 1991 FM50AM(E20)

Suzuki FM

Displacement: 50 cc
Year: 1991
Model code FM50AM(E20)
