HANDLEBAR

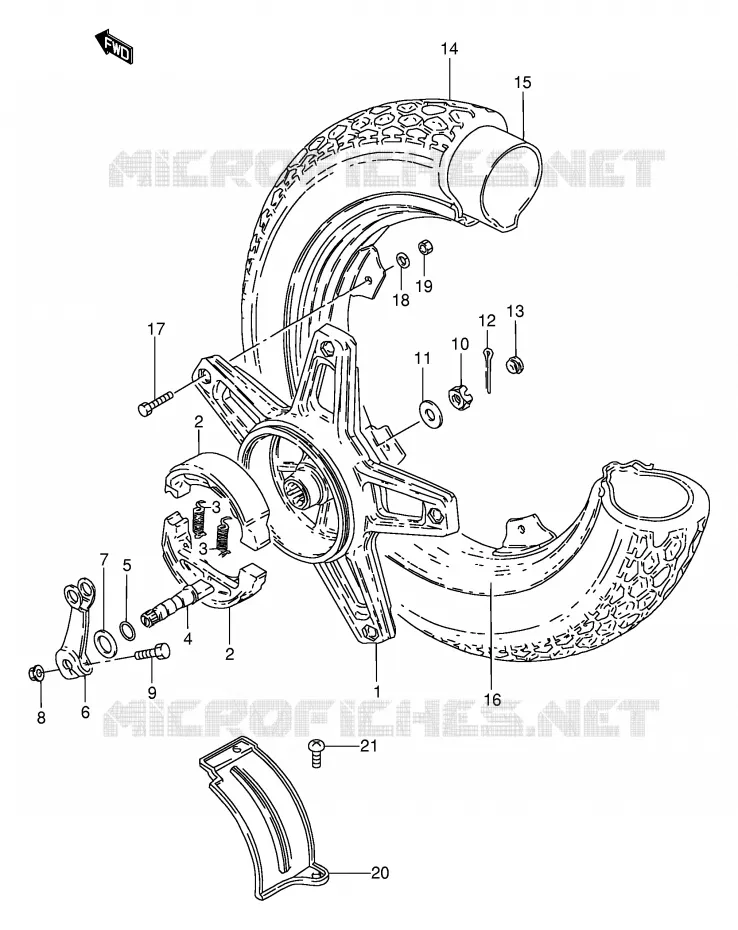

REAR WHEEL FOR SUZUKI FZ 50 1999

OPTIONS

Item numbers

HUB, WHEEL (PEARL)

64110-02400-126 6411002400126

Not available

HUB, WHEEL (PEARL)

64110-02410-126 6411002410126

Not available

HUB, WHEEL (PEARL)

64110-02420-126 6411002420126

Not available

HUB, WHEEL (SILVER)

64110-02421-000 6411002421000

Not available

DISCONTINUED

64110-02430-126 6411002430126

Not available

SHOE, BRAKE

54410-02401-000 5441002401000

Not available

DISCONTINUED

54410-02410-000 5441002410000

Not available

DISCONTINUE

54410-02411-000

Not available

SPRING

09443-07001-000 0944307001000

$3,97

Unit Price

SPRING
SPRING (L:33)

09443-07025-000 0944307025000

$3,97

Unit Price

CAM, BRAKE

54441-02400-000 5444102400000

Not available

CAMSHAFT O RING
O RING

09280-12001-000 0928012001000

$6,97

Unit Price

LEVER, CAM

64451-02400-000 6445102400000

Not available

SEAL WASHER
WASHER

09160-12011-000

Not available

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

BOLT

01107-06307-000

01500-06307-000

$4,97

Unit Price

BOLT

01550-06303-000

01550-0630A-000

$3,97

Unit Price

NUT

08314-41128-000

08314-4012A-000

$4,97

Unit Price

R SW ARM PIVOT NUT
NUT

09141-14004-000 0914114004000

$9,97

Unit Price

WASHER

08322-11128-000

08322-01127-000

$2,97

Unit Price

WASHER, REAR HUB
WASHER

09160-14027-000 0916014027000

$3,97

Unit Price

04111-30308-000

04111-3030A-000

$2,97

Unit Price

CAP(OD:17)
PLUG

09250-12004-000 0925012004000

$3,97

Unit Price

DISCONTINUED

55100-02410-000 5510002410000

Not available

TUBE, INNER

65200-46410-000

65200-46411-000

$44,97

Unit Price

DISCONTINUED

55310-02410-126 5531002410126

Not available

RIM, WHEEL (SILVER)

55310-02410-13L 553100241013L

Not available

BOLT(8X21.5)
BOLT

09100-08091-000 0910008091000

$4,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

WASHER, CHAIN ADJUSTE
LOCK WASHER

09162-08008-000 0916208008000

$3,97

Unit Price

NUT

08310-00083-000

08310-0008B-000

$3,97

Unit Price

NUT

08310-12088-000

08310-00087-000

$2,97

Unit Price

NUT

08310-11088-000 0831011088000

Not available

PROTECTOR, CAM LEVER

64491-02400-000 6449102400000

Not available

SCREW

02112-06103-000

02112-0610B-000

$2,97

Unit Price

SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000 0211206108000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of FZ. Let us know if you have any questions.
