Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TURNSIGNAL

TAIL LIGHT FOR SUZUKI KATANA 50 1998

WIRING HARNESS (model V / W / X / Y) -->36610-02E11

Item numbers

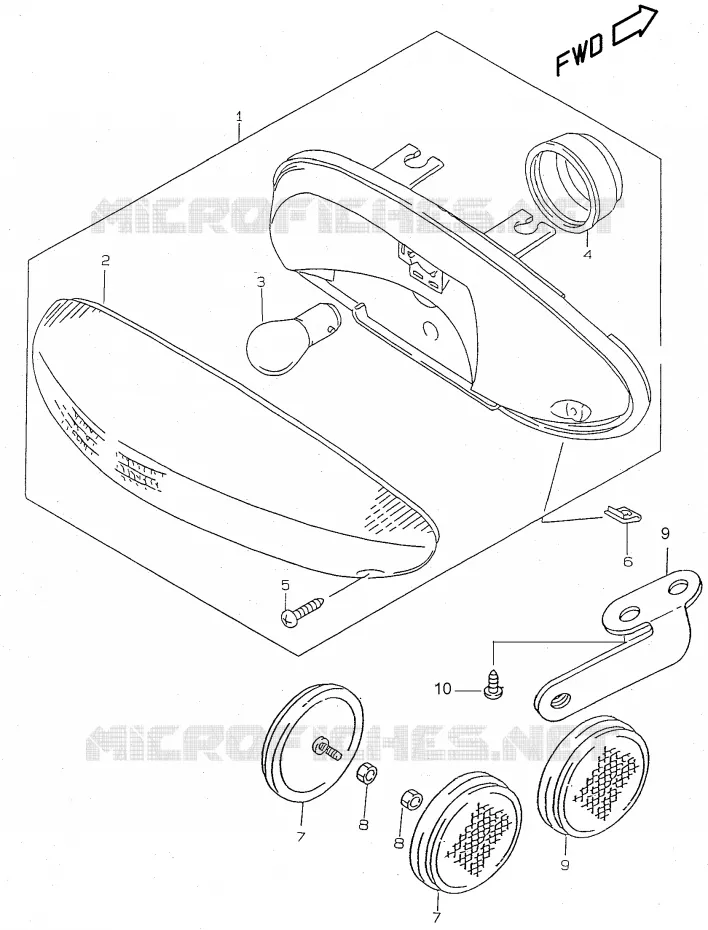

TAIL LIGHT Suzuki SCOOTER 50 KATANA 1998 AY50WRW(V/W/X/Y)
1
1
1
1
1
1
2
2
2
2
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
8
8
9
9
9
9
9
9
9
9
10
10
1
LAMP ASSY, REAR COMB.

35710-02E00-000   3571002E00000

3571002E00000
Not available
1
LAMP ASSY, REAR COMB.

35710-02E10-000   3571002E10000

3571002E10000
Not available
2
LENS, TAIL LAMP

35712-02E00-000   3571202E00000

3571202E00000
Not available
2
LENS, TAIL LAMP

35712-02E10-000   3571202E10000

3571202E10000
Not available
3
BULB(12V1.4W G30)<br />BULB (12V, 5/21W)
BULB(12V1.4W G30)
BULB (12V, 5/21W)

09471-12083-000   0947112083000

0947112083000

Unit Price

4
BOOT, TAIL LAMP

35737-09E00-000   3573709E00000

3573709E00000
Not available
5
SCREW

D3111-04163-000   D311104163000

D311104163000
Not available
6
NUT

D91EE-04166-000   D91EE04166000

D91EE04166000
Not available
7
35950-14A11
REFLEX REFLECTOR ASSY, RR

35950-09EF0-000   3595009EF0000

3595009EF0000
Not available
8
DISCONTINUE
NUT

D8310-00045-000  

D831000045000
Not available
9
BRACKET, R. REFLECTOR RH

35975-09EG0-EE3   3597509EG0EE3

3597509EG0EE3
Not available
9
BRACKET, R. REFLECTOR LH

35976-09EG0-EE3   3597609EG0EE3

3597609EG0EE3
Not available
10
SCREW

D3111-05125-000   D311105125000

D311105125000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki KATANA 50 of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 1998
