FAIRING (model V)

FAIRING (MODEL W) FOR SUZUKI KATANA 50 2001

FAIRING (model X)

Item numbers

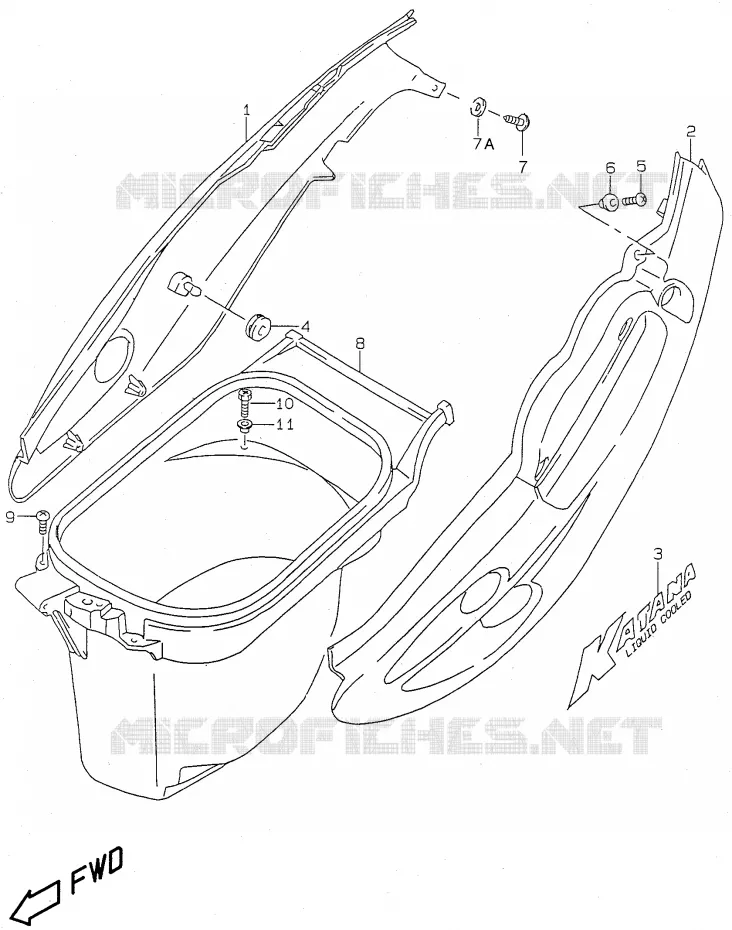

FAIRING (model W) Suzuki SCOOTER 50 KATANA 2001 AY50K1(V/W/X/Y)
4
4
7
7
1
COVER, FRAME RH (WHITE)

47111-35E00-0JW   4711135E000JW

4711135E000JW
Not available
1
COVER, FRAME RH (RED)

47111-35E00-28V   4711135E0028V

4711135E0028V
Not available
1
COVER, FRAME RH (BLACK)

47111-35E00-33J   4711135E0033J

4711135E0033J
Not available
1
COVER, FRAME RH (SILVER)

47111-35E00-Y2D   4711135E00Y2D

4711135E00Y2D
Not available
1
COVER, FRAME RH (YELLOW)

47111-35E00-Y3G   4711135E00Y3G

4711135E00Y3G
Not available
2
COVER, FRAME LH (WHITE)

47211-35E00-0JW   4721135E000JW

4721135E000JW
Not available
2
COVER, FRAME LH (RED)

47211-35E00-28V   4721135E0028V

4721135E0028V
Not available
2
COVER, FRAME LH (BLACK)

47211-35E00-33J   4721135E0033J

4721135E0033J
Not available
2
COVER, FRAME LH (SILVER)

47211-35E00-Y2D   4721135E00Y2D

4721135E00Y2D
Not available
2
COVER, FRAME LH (YELLOW)

47211-35E00-Y3G   4721135E00Y3G

4721135E00Y3G
Not available
3
EMBLEM SET (RED)

68130-35E20-28V   6813035E2028V

6813035E2028V
Not available
3
EMBLEM SET (BLACK)

68130-35E20-33J   6813035E2033J

6813035E2033J
Not available
3
EMBLEM SET (SILVER)

68130-35E20-Y2D   6813035E20Y2D

6813035E20Y2D
Not available
3
EMBLEM SET (YELLOW)

68130-35E20-Y3G   6813035E20Y3G

6813035E20Y3G
Not available
3
EMBLEM SET (RED)

68130-35E30-28V   6813035E3028V

6813035E3028V
Not available
3
EMBLEM SET (BLACK)

68130-35E30-33J   6813035E3033J

6813035E3033J
Not available
3
EMBLEM SET (SILVER)

68130-35E30-Y2D   6813035E30Y2D

6813035E30Y2D
Not available
3
EMBLEM SET (YELLOW)

68130-35E30-Y3G   6813035E30Y3G

6813035E30Y3G
Not available
3
EMBLEM SET

68130-35E40-000   6813035E40000

6813035E40000
Not available
4
CUSHION

09320-08029-X00   0932008029X00

0932008029X00
Not available
5
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

6
WASHER

09169-06034-E0N   0916906034E0N

0916906034E0N
Not available
7A
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

7
SCREW, REAR
SCREW, REAR

D3111-05165-000   D311105165000

D311105165000
Not available
8
BOX, HELMET

92210-02E00-NE2   9221002E00NE2

9221002E00NE2
Not available
8
BOX, HELMET

92211-02E00-NE2   9221102E00NE2

9221102E00NE2
Not available
9
SCREW, FRONT
SCREW, FRONT

D3111-05165-000   D311105165000

D311105165000
Not available
10
BOLT(6X16)
BOLT, INNER

09128-06049-000   0912806049000

0912806049000

Unit Price

11
WASHER
WASHER

09169-06055-000   0916906055000

0916906055000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (model W) of your Suzuki of KATANA. Let us know if you have any questions.
