FAIRING (MODEL K1) FOR SUZUKI KATANA 50 2003

FAIRING (MODEL K2)

Item numbers

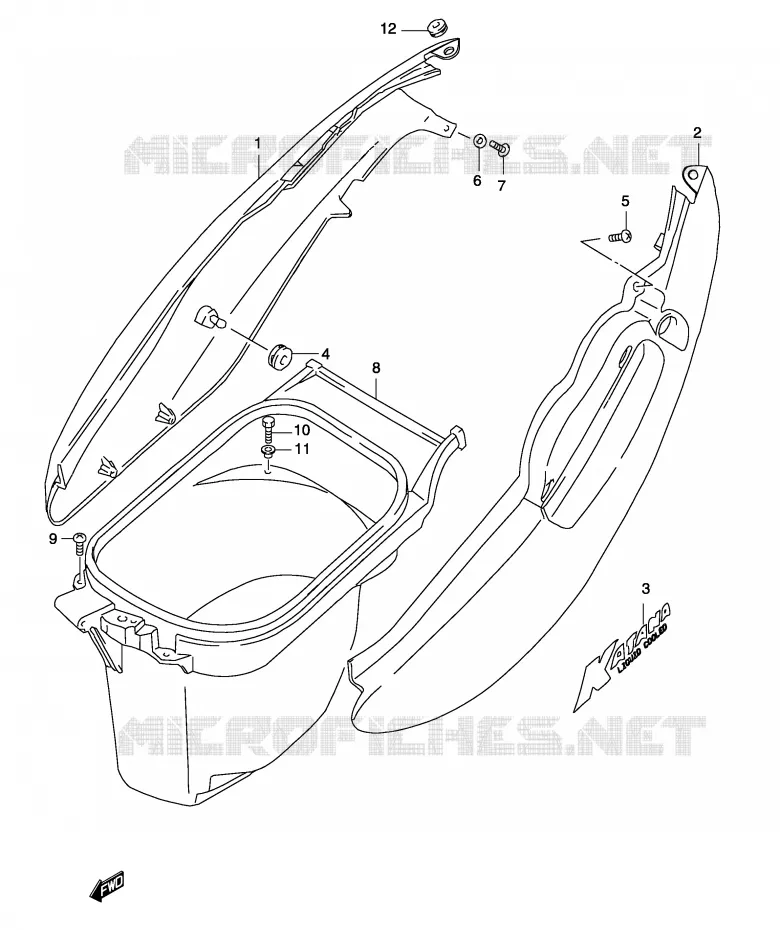

FAIRING (MODEL K1) Suzuki SCOOTER 50 KATANA 2003 AY50K3(P19)
1
1
1
2
2
2
3
3
3
3
4
5
6
7
8
8
9
10
11
12
1
COVER, FRAME RH (WHITE)

47111-35E50-0JW   4711135E500JW

4711135E500JW
Not available
1
COVER, FRAME RH (BLUE)

47111-35E50-YC2   4711135E50YC2

4711135E50YC2
Not available
1
COVER, FRAME RH (SILVER)

47111-35E50-YD8   4711135E50YD8

4711135E50YD8
Not available
2
COVER, FRAME LH (WHITE)

47211-35E50-0JW   4721135E500JW

4721135E500JW
Not available
2
COVER, FRAME LH (BLUE)

47211-35E50-YC2   4721135E50YC2

4721135E50YC2
Not available
2
COVER, FRAME LH (SILVER)

47211-35E50-YD8   4721135E50YD8

4721135E50YD8
Not available
3
EMBLEM SET

68130-02EK0-KR1   6813002EK0KR1

6813002EK0KR1
Not available
3
EMBLEM SET

68130-02EK0-S15   6813002EK0S15

6813002EK0S15
Not available
3
EMBLEM SET

68130-02EL0-000   6813002EL0000

6813002EL0000
Not available
3
EMBLEM SET

68130-02EN0-000   6813002EN0000

6813002EN0000
Not available
4
CUSHION

09320-08029-X00   0932008029X00

0932008029X00
Not available
5
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

6
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

7
SCREW, REAR
SCREW, REAR

D3111-05165-000   D311105165000

D311105165000
Not available
8
BOX, HELMET

92210-02E10-NE2   9221002E10NE2

9221002E10NE2
Not available
8
BOX, HELMET

92211-02E10-NE2   9221102E10NE2

9221102E10NE2
Not available
9
SCREW, FRONT
SCREW, FRONT

D3111-05165-000   D311105165000

D311105165000
Not available
10
BOLT(6X16)
BOLT, INNER

09128-06049-000   0912806049000

0912806049000

Unit Price

11
WASHER
WASHER

09169-06055-000   0916906055000

0916906055000

Unit Price

12
CUSHION, MUF COV

09320-08051-000  

09320-08066-000
 0932008051000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL K1) of your Suzuki of KATANA. Let us know if you have any questions.
