HANDLE GRIP (MODEL AY50W)

HANDLE GRIP (MODEL AY50) FOR SUZUKI KATANA 50 2004

FRONT FORK

Item numbers

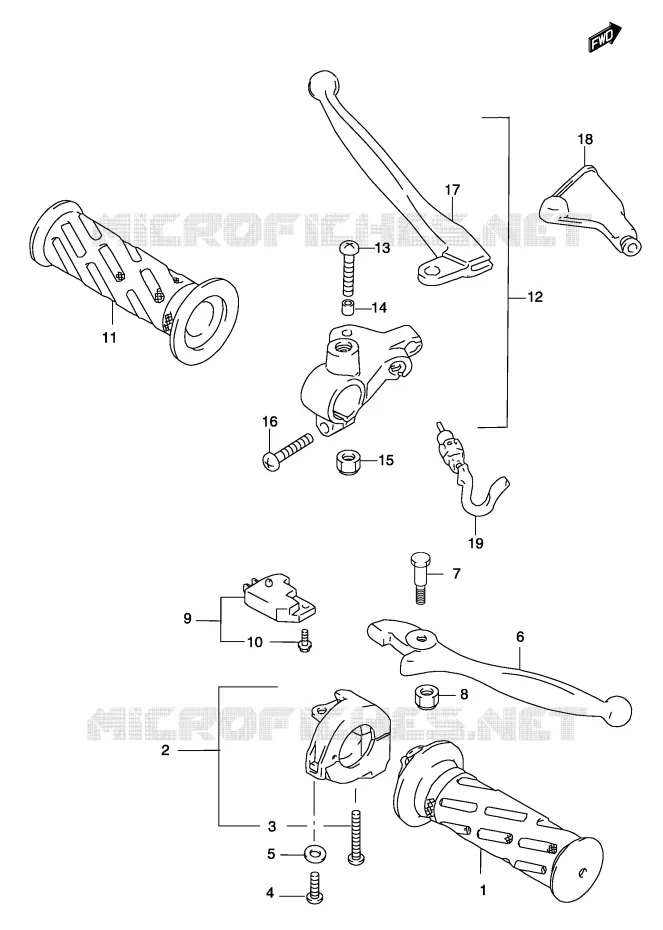

HANDLE GRIP (MODEL AY50) Suzuki SCOOTER 50 KATANA 2004 AY50SK4(P19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
GRIP, THROTTLE

57110-02E00-000   5711002E00000

5711002E00000
Not available
2
CASE ASSY, THROTTLE

57100-09E00-000   5710009E00000

5710009E00000
Not available
3
SCREW

D2116-05205-000   D211605205000

D211605205000
Not available
4
SCREW

D2116-05165-000   D211605165000

D211605165000
Not available
5
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

6
LEVER, FRONT BRAKE

57421-02E10-000   5742102E10000

5742102E10000
Not available
7
BOLT

57431-02E10-000   5743102E10000

5743102E10000
Not available
8
NUT

D8319-60048-000   D831960048000

D831960048000
Not available
9
SWITCH ASSY, STOP

57460-17C00-000  

57460-14J02-000
 5746017C00000

Unit Price

10
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

11
GRIP, LH

57211-09E00-000   5721109E00000

5721109E00000
Not available
12
LEVER ASSY, REAR BRAKE

57510-09E00-000   5751009E00000

5751009E00000
Not available
13
SCREW

D2116-05255-000  

09125-05066-000
 D211605255000

Unit Price

14
SPACER

57435-02E00-000   5743502E00000

5743502E00000
Not available
15
NUT

D8310-10055-000   D831010055000

D831010055000
Not available
16
SCREW

D2116-06205-000  

02112-0620A-000
 D211606205000

Unit Price

17
LEVER

57621-09E00-000   5762109E00000

5762109E00000
Not available
18
COVER, LH

57514-10E00-000   5751410E00000

5751410E00000
Not available
19
SWITCH ASSY

57470-02E00-000   5747002E00000

5747002E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLE GRIP (MODEL AY50) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2004
