Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE (MODEL AY50 K1 ) P22, P39

CRANKCASE (MODEL AY50 K2, SEE NOTE ) FOR SUZUKI KATANA 50 2004

CRANKCASE (MODEL AY50 K3 / K4)

Item numbers

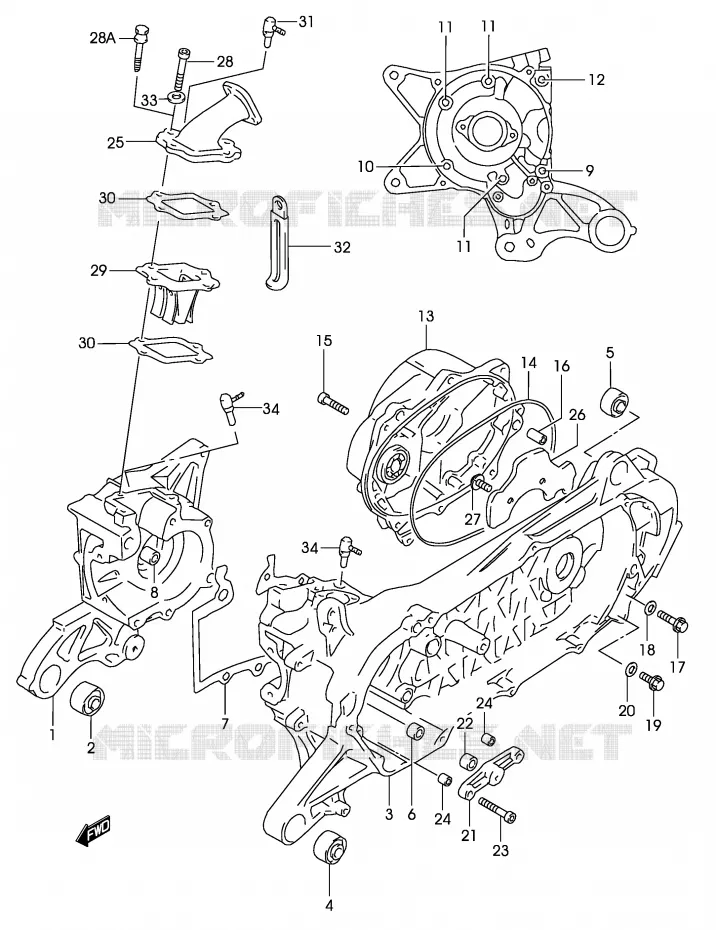

CRANKCASE (MODEL AY50 K2, SEE NOTE ) Suzuki SCOOTER 50 KATANA 2004 AY50WK4(P19)
1
2
3
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28A
28
28
29
29
30
30
31
32
33
34
34
1
CRANKCASE, RH

11311-10E21-000   1131110E21000

1131110E21000
Not available
2
BUSH

09319-10050-000   0931910050000

0931910050000

Unit Price

3
CRANKCASE, LH

11321-10E25-000   1132110E25000

1132110E25000
Not available
3
CRANKCASE, LH

11321-10E31-000   1132110E31000

1132110E31000
Not available
4
BUSH

09319-10050-000   0931910050000

0931910050000

Unit Price

5
BUSH(10.2X22.3X20)
BUSH

09319-10032-000   0931910032000

0931910032000

Unit Price

6
BUSH

09300-08016-R00   0930008016R00

0930008016R00
Not available
7
GASKET, CRANKCASE

11481-35E00-000   1148135E00000

1148135E00000
Not available
8
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

9
BOLT (6X80)

D7107-06805-000   D710706805000

D710706805000
Not available
10
BOLT (6X55)

D7107-06555-000   D710706555000

D710706555000
Not available
11
BOLT (6X45)

D7107-06455-000   D710706455000

D710706455000
Not available
12
BOLT (6X85)

D7107-06855-000   D710706855000

D710706855000
Not available
13
COVER, GEAR BOX

11431-10E10-000   1143110E10000

1143110E10000
Not available
14
O RING (D:2.4, ID:161)

09280-00029-C00   0928000029C00

0928000029C00
Not available
15
SCREW

D7107-06255-000   D710706255000

D710706255000
Not available
16
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

17
BOLT

D1557-08125-000  

01550-0812B-000
 D155708125000

Unit Price

18
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

19
BOLT

D1557-06125-000  

01517-06123-000
 D155706125000

Unit Price

20
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

21
CAP, STARTER IDLE GEAR

11382-37B01-000   1138237B01000

1138237B01000
Not available
22
BUSH

09300-08016-R00   0930008016R00

0930008016R00
Not available
23
SCREW

D7107-06305-000   D710706305000

D710706305000
Not available
24
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

25
PIPE, INTAKE

13110-35E60-000   1311035E60000

1311035E60000
Not available
25
PIPE, INTAKE

13111-35E40-000   1311135E40000

1311135E40000
Not available
26
PLATE, GEAR BOX

11323-06F00-000   1132306F00000

1132306F00000
Not available
27
SCREW

D2116-06125-000   D211606125000

D211606125000
Not available
28
BOLT

D7107-06255-000   D710706255000

D710706255000
Not available
28A
BOLT

13141-09E21-000   1314109E21000

1314109E21000
Not available
29
VALVE ASSY, REED

13150-10E00-000   1315010E00000

1315010E00000
Not available
29
VALVE ASSY, REED

13150-10E10-000   1315010E10000

1315010E10000
Not available
30
GASKET

13156-10E00-000   1315610E00000

1315610E00000
Not available
31
VALVE, OIL HOSE CHECK
CHECK VALVE, OIL HOSE

16910-09C00-000   1691009C00000

1691009C00000

Unit Price

32
CLAMP

09404-06429-EE3   0940406429EE3

0940406429EE3
Not available
33
WASHER

D8321-71065-000   D832171065000

D832171065000
Not available
34
NIPPLE COMP, OIL HOSE NO. 2

16910-21D00-000   1691021D00000

1691021D00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE (MODEL AY50 K2, SEE NOTE ) of your Suzuki of KATANA. Let us know if you have any questions.
