CAM SHAFT - VALVE

TIMING FOR SUZUKI GS-E 500 1983

CARBURETOR

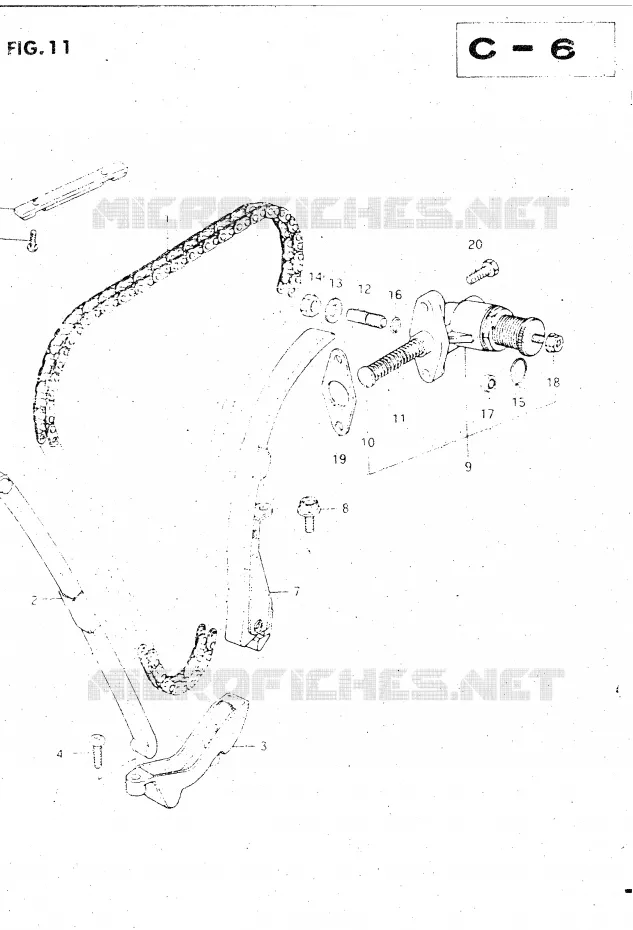

TIMING Suzuki MOTO 500 GS-E 1983 GS500ED(Z/D)
1
DISCONTINUE

12760-47040-000  

1276047040000
Not available
2
DISCONTINUE
GUIDE

12771-47041-000   1277147041000

1277147041000
Not available
3
HOLDER, GUIDE

12776-47000-000   1277647000000

1277647000000
Not available
4
SCREW

02112-06208-000  

02112-06207-000
 0211206208000

Unit Price

5
DISCONTINUE
GUIDE, CHAIN

12782-47040-000   1278247040000

1278247040000
Not available
6
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

7
DISCONTINUE
TENSIONER, CHAIN

12810-47040-000   1281047040000

1281047040000
Not available
8
BOLT

01517-08168-000   0151708168000

0151708168000
Not available
9
DISCONTINUE

12830-09300-000  

1283009300000
Not available
10
DISCONTINUE
PUSH ROD

12833-47001-000   1283347001000

1283347001000
Not available
11
SPRING

09440-12017-000   0944012017000

0944012017000

Unit Price

12
SCREW

12838-45001-000   1283845001000

1283845001000

Unit Price

13
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

14
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

15
O RING(D:2.4,ID:20.8)<br />O RING
O RING(D:2.4, ID:20.8)
O RING

09280-21013-000   0928021013000

0928021013000

Unit Price

16
O RING

09280-06005-000   0928006005000

0928006005000

Unit Price

17
OIL SEAL 10X16X4<br />OIL SEAL
OIL SEAL 10X16X4
OIL SEAL

09284-10006-000   0928410006000

0928410006000

Unit Price

18
NUT

08316-16065-000   0831616065000

0831616065000
Not available
19
GASKET, TENSIONER

12837-47000-000   1283747000000

1283747000000
Not available
20
BOLT, ST CL COV/ST ID

09128-06024-000  

09103-06212-000
 0912806024000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 1983
