MUFFLER

OIL PUMP FOR SUZUKI GS-E 500 1990

RADIATOR

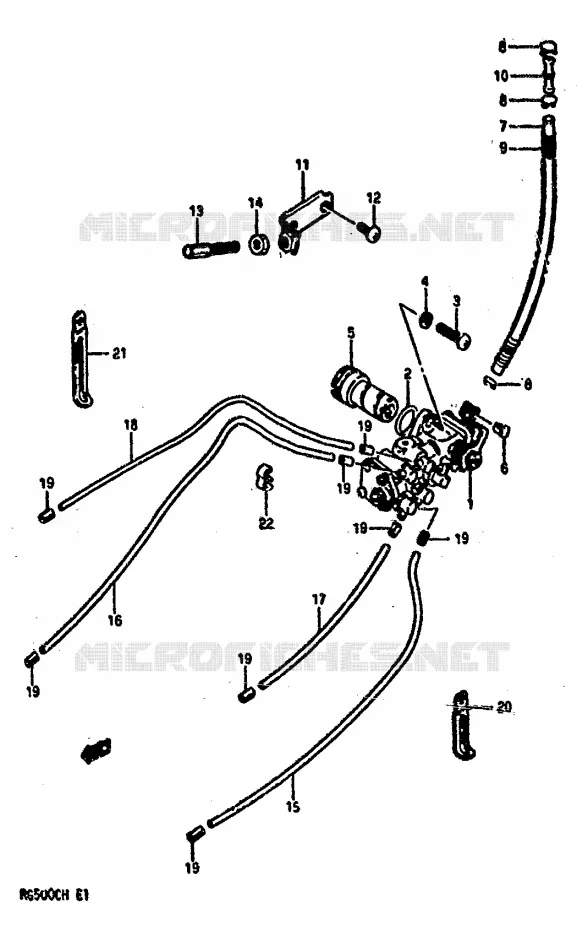

OIL PUMP Suzuki MOTO 500 GS-E 1990 GS500EL(E1)
1
DISCONTINUE<br />PUMP ASSY,OIL
DISCONTINUE
PUMP ASSY, OIL

16100-21A00-000   1610021A00000

1610021A00000
Not available
2
O RING(D:1.5,ID:19.5)<br />O RING
O RING(D:1.5, ID:19.5)
O RING

09280-20003-000   0928020003000

0928020003000

Unit Price

3
SCREW

02112-06208-000  

02112-06207-000
 0211206208000

Unit Price

4
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

5
PIECE, OIL PUMP DRIVE

16391-20A00-000   1639120A00000

1639120A00000
Not available
6
TERMINAL,CABLE<br />TERMINAL,CABELS
TERMINAL, CABLE
TERMINAL, CABELS

16292-03112-000   1629203112000

1629203112000

Unit Price

7
HOSE, 4.5X8.5X600

09343-04060-000  

09355-45001-600
 0934304060000

Unit Price

8
OIL HOSE CLAMP<br />CLIP
OIL HOSE CLAMP
CLIP

09401-08401-000   0940108401000

0940108401000

Unit Price

9
SPRING

09440-10029-000  

09440-10029-XC0
 0944010029000

Unit Price

10
UNION
UNION

09364-06005-000   0936406005000

0936406005000

Unit Price

11
BRACKET, OIL PUMP CABLE

16291-20A00-000   1629120A00000

1629120A00000
Not available
12
SCREW

02112-06125-000  

02112-0612B-000
 0211206125000

Unit Price

13
BOLT
BOLT

09119-08014-000   0911908014000

0911908014000

Unit Price

14
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

15
09352-20504-600
S.R.I.S. HOSE NO 2 (L:600-450)

09343-02009-000  

0934302009000
Not available
16
09352-20504-600
S.R.I.S. HOSE NO 2 (L:600-450)

09343-02009-000  

0934302009000
Not available
17
09352-20504-600
S.R.I.S. HOSE NO 2 (L:600-450)

09343-02009-000  

0934302009000
Not available
18
09352-20504-600
S.R.I.S. HOSE NO 2 (L:600-450)

09343-02009-000  

0934302009000
Not available
19
OIL HOSECLAMP<br />CLIP
OIL HOSECLAMP
CLIP

09401-04401-000   0940104401000

0940104401000

Unit Price

20
CLAMP(L:65)

09404-06403-000  

09404-06039-000
 0940406403000

Unit Price

21
CLAMP (L:97)

09404-06405-000   0940406405000

0940406405000
Not available
22
CLIP
CLIP

09408-00066-000   0940800066000

0940800066000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
