CYLINDER

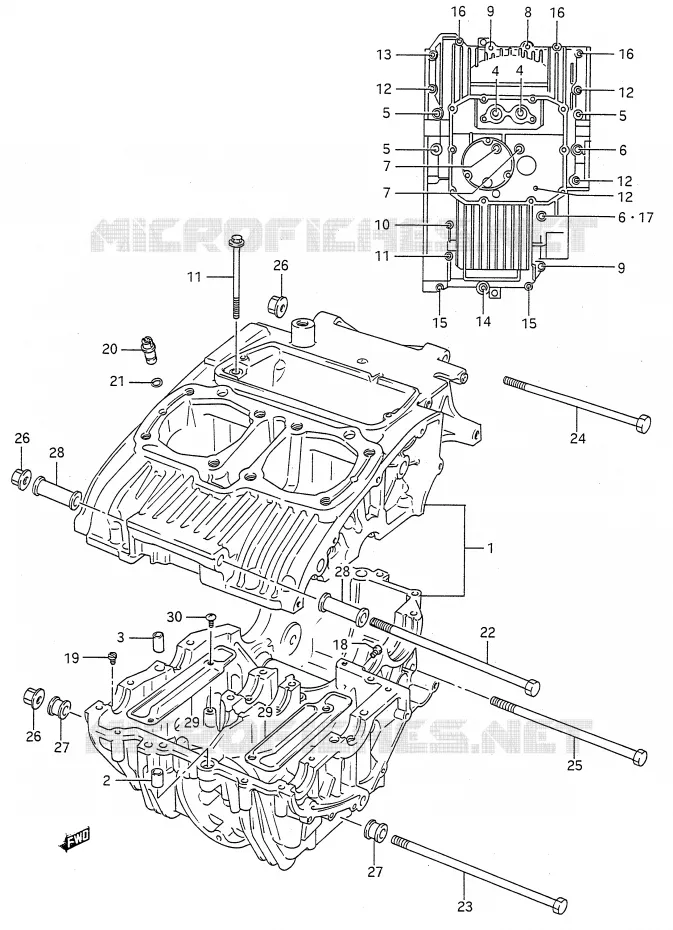

CRANKCASE FOR SUZUKI GS-E 500 1990

CRANKCASE COVER

Item numbers

DISCONTINUE
CRANKCASE SET

11300-44881-000 1130044881000

Not available

CLUTCH COVER PI **S1
PIN

09206-13004-000 0920613004000

$3,97

Unit Price

PIN, 11 X20

09206-11005-000

09206-11017-000

$12,97

Unit Price

DISCONTINUE
BOLT (8X70)

07130-08703-000

Not available

BOLT (8X125)

09103-08182-000 0910308182000

$7,97

Unit Price

BOLT
BOLT (8X110)

09103-08134-000 0910308134000

$3,97

Unit Price

BOLT
BOLT (8X100)

09103-08070-000 0910308070000

$9,97

Unit Price

BOLT (8X100)

09103-08230-000 0910308230000

$5,97

Unit Price

BOLT

01550-08653-000

01550-0865B-000

$6,97

Unit Price

BOLT

01517-08655-000 0151708655000

Not available

BOLT

01517-08455-000

01550-08453-000

$5,97

Unit Price

BOLT CYL HEAD COVER
BOLT (6X125)

09103-06033-000 0910306033000

$6,97

Unit Price

BOLT, ENGINE MOUNT
BOLT (6X105)

09103-06067-000 0910306067000

$5,97

Unit Price

.BOLT (6X90)

01517-06905-000 0151706905000

Not available

DISCONTINUE
BOLT (6X90)

01550-06903-000

Not available

01550-06703
.BOLT (6X70)

01517-06705-000

Not available

DISCONTINUE
BOLT

01550-06703-000

Not available

BOLT

01517-06655-000

01550-06653-000

$4,97

Unit Price

BOLT
BOLT (6X50)

01550-06507-000 0155006507000

$4,97

Unit Price

BOLT

01517-06455-000

01550-06453-000

$3,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

JET, AIR
JET, OIL GALLERY MISSION

09493-22010-000 0949322010000

$18,97

Unit Price

JET, GALLERY BAL****
JET, OIL GALY. BAL. SHAFT

09493-32002-000 0949332002000

$26,97

Unit Price

JET
JET, OIL GALLERY CYLINDER

09493-24008-000

Not available

RING
O RING

09280-03003-000 0928003003000

$3,97

Unit Price

BOLT, L:255
BOLT (10X255)

09103-10137-000 0910310137000

$17,97

Unit Price

09103-10154
BOLT (10X240)

09103-10212-000 0910310212000

Not available

BOLT (10X170)

09103-10127-000 0910310127000

$29,97

Unit Price

BOLT

09103-10150-000

09103-10278-000

$27,97

Unit Price

NUT

08319-31107-000 0831931107000

$3,97

Unit Price

NUT

09159-10078-000 0915910078000

$6,97

Unit Price

SPACER, ENG MTG(L:16.8)
SPACER (L:16.8)

11611-01D10-000 1161101D10000

$15,97

Unit Price

SPACER (L:16.8)

11610-01D00-000 1161001D00000

Not available

SPACER, ENGINE MOUNT(L:65)
SPACER (L:65)

11610-45410-000 1161045410000

$18,97

Unit Price

PLATE, OIL SEPARATOR

11521-44100-000 1152144100000

$4,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
