Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT

WIRING HARNESS FOR SUZUKI GS-E 500 1991

SWITCHES

Item numbers

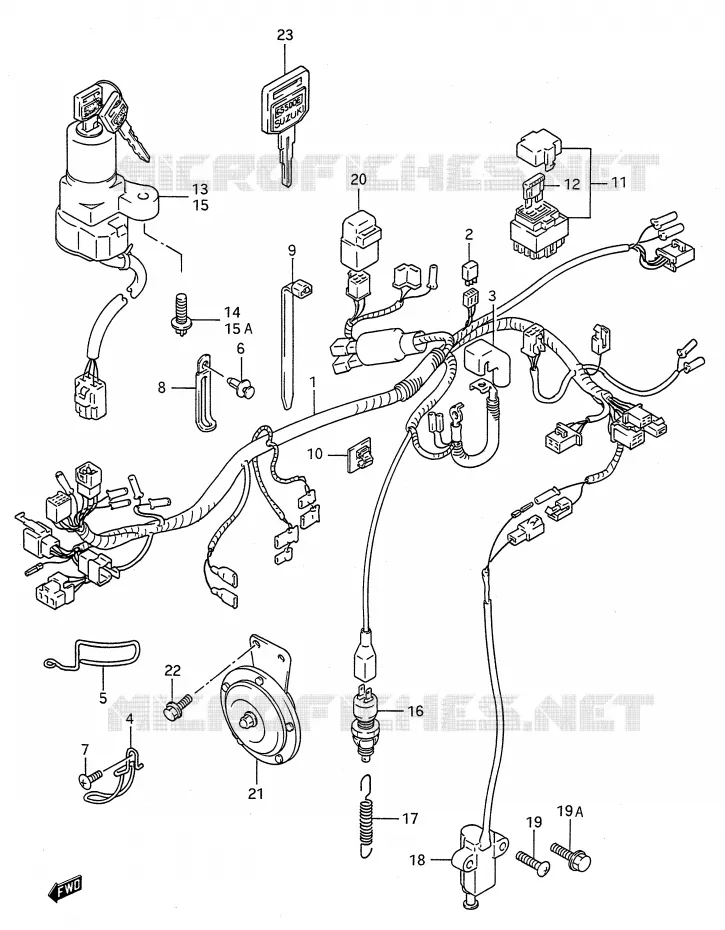

WIRING HARNESS Suzuki MOTO 500 GS-E 1991 GS500EUM(E28)
1
1
1
2
3
4
5
6
7
8
8
8
8
8
8
8
8
9
9
9
10
11
12
13
14
15A
15
15
15
16
17
18
19A
19
20
21
22
22
23
23
23
1
HARNESS, WIRING

36610-01D00-000   3661001D00000

3661001D00000
Not available
1
HARNESS, WIRING

36610-01D10-000   3661001D10000

3661001D10000
Not available
1
DISCONTINUE

36610-01D30-000  

3661001D30000
Not available
2
DIODE
DIODE

36611-38A00-000  

36611-38A10-000
 3661138A00000

Unit Price

3
CAP, BATTERY PLUS TERMINAL

33624-27A00-000  

33624-43500-000
 3362427A00000

Unit Price

4
PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D00-000   3661101D00000

3661101D00000

Unit Price

5
PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D10-000   3661101D10000

3661101D10000

Unit Price

6
CLIP (BLACK)
CLIP (BLACK)

09409-07305-5PK   09409073055PK

09409073055PK

Unit Price

7
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

8
CLAMP(L:65)

09404-06403-000  

09404-06039-000
 0940406403000

Unit Price

8
CLAMP(L:80)

09404-06415-000  

09404-06426-000
 0940406415000

Unit Price

8
CLAMP(L:65)

09404-06431-000  

09404-06207-000
 0940406431000

Unit Price

8
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

8
CLAMP(L:80)
CLAMP(L:80)

09404-06434-000  

09404-06036-000
 0940406434000

Unit Price

8
CLAMP, L:120 T:1.0

09404-08413-000  

09404-08420-000
 0940408413000

Unit Price

8
CLAMP, L:82

09404-08418-000  

09404-08206-000
 0940408418000

Unit Price

9
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

9
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

10
CLAMP

09403-06310-000   0940306310000

0940306310000

Unit Price

11
BOX ASSY, FUSE

36740-09301-000  

36740-24B01-000
 3674009301000

Unit Price

12
FUSE (20A)
FUSE (20A)

09481-20101-000   0948120101000

0948120101000

Unit Price

13
37100-26D04

37100-01D00-000  

3710001D00000
Not available
14
SCREW(6X18)<br />BOLT
SCREW(6X18)
BOLT

09139-06026-000   0913906026000

0913906026000

Unit Price

15A
SCREW(6X18)<br />BOLT
SCREW(6X18)
BOLT

09139-06026-000   0913906026000

0913906026000

Unit Price

15
37100-26D04

37100-01D02-000  

3710001D02000
Not available
16
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-24A00-000   3774024A00000

3774024A00000

Unit Price

17
SPRING
SPRING

09443-06042-000   0944306042000

0944306042000

Unit Price

18
37840-01D01

37840-01D01-000  

3784001D01000
Not available
19A
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

19
SCREW

02112-36305-000   0211236305000

0211236305000
Not available
20
RELAY ASSY<br />RELAY ASSY, SIDE STAND
RELAY ASSY
RELAY ASSY, SIDE STAND

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

21
DISCONTINUE
HORN ASSY

38500-01D10-000  

3850001D10000
Not available
22
BOLT

01517-06128-000  

01550-06207-000
 0151706128000

Unit Price

22
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

23
KEY, BLANK

37146-01D00-000  

37146-26D10-000
 3714601D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 1991
