REAR WHEEL

REAR CALIPER (MODEL K / L / M / N) FOR SUZUKI GS-E 500 1992

REAR CALIPER (MODEL P / R / S / T)

Item numbers

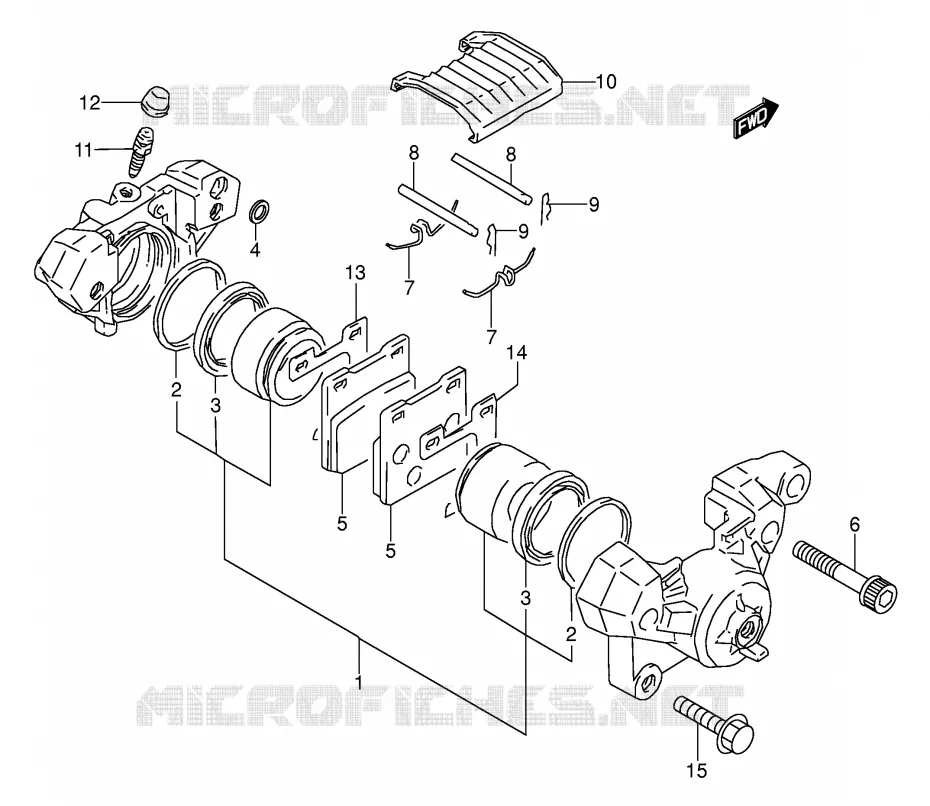

REAR CALIPER (MODEL K/L/M/N) Suzuki MOTO 500 GS-E 1992 GS500EN(E2)

1

PISTON SET

69100-27820-000

69100-27821-000

$191,97

Unit Price

1

DISCONTINUE
PISTON SET

69100-17830-000 6910017830000

Not available

2

SEAL, PISTON

59107-18410-000

69107-05CF0-000

$38,97

Unit Price

3

BOOT

59108-16700-000 5910816700000

$26,97

Unit Price

4

SEAL, PISTON
SEAL

69107-34200-000 6910734200000

$34,97

Unit Price

5

PAD SET

69130-20A10-000

69100-20810-000

$79,45

Unit Price

6

BOLT, HOUSING

69145-16700-000

59145-05C50-000

$17,97

Unit Price

6

DISCONTINUE
BOLT (HEXAGON FLANGE)

59145-17C00-000 5914517C00000

Not available

7

SPRING

59143-16700-000 5914316700000

$11,97

Unit Price

8

BRAKE PAD PIN
PIN

69141-45000-000 6914145000000

$10,97

Unit Price

9

BRAKE PAD PIN CLIP
CLIP

69142-45000-000 6914245000000

$7,97

Unit Price

10

COVER

59151-16701-000 5915116701000

$19,97

Unit Price

11

BLEEDER

59121-18410-000 5912118410000

$11,97

Unit Price

12

CAP, BLEEDER PLUG

59122-18410-000

55156-66310-000

$7,97

Unit Price

13

SHIM, INNER

59371-20C00-000 5937120C00000

$19,97

Unit Price

14

SHIM, OUTER

59381-20C00-000 5938120C00000

$19,97

Unit Price

15

BOLT

01517-08304-000

01550-0830B-000

$4,97

Unit Price

99x

CALIPER ASSY, REAR

69100-01D00-000 6910001D00000

Not available

99x

69100-01D04
CALIPER ASSY, REAR

69100-01D01-000

Not available

99x

69100-01D04
CALIPER ASSY, REAR

69100-01D02-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER (MODEL K/L/M/N) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
