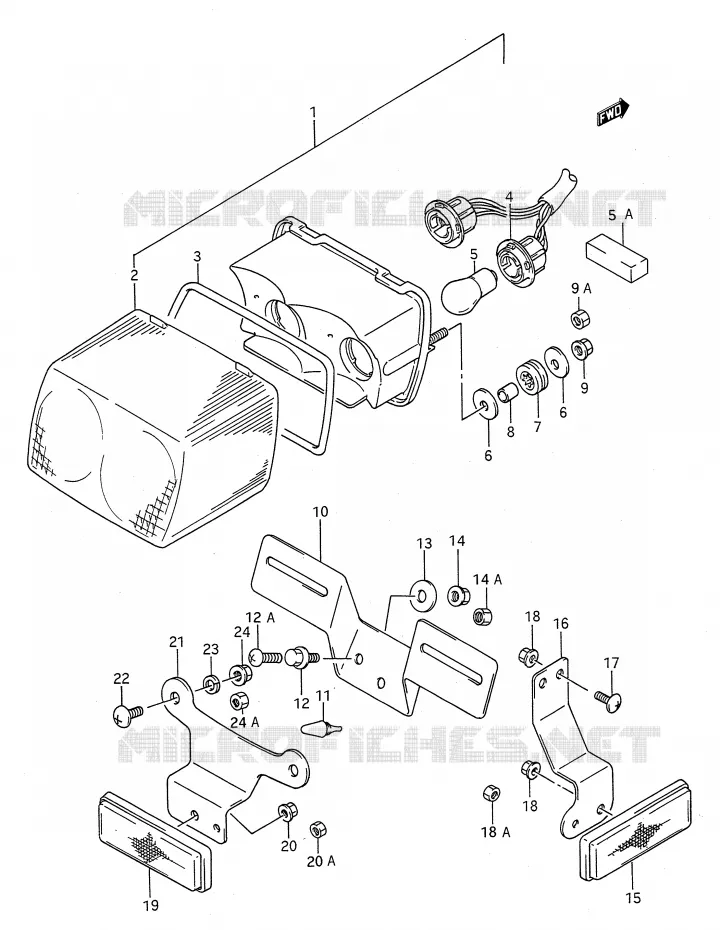

TAIL LIGHT FOR SUZUKI GS-E 500 1992

WIRING HARNESS

Item numbers

DISCONTINUE

35710-01D10-000

Not available

DISCONTINUE
LENS

35712-01D10-000 3571201D10000

Not available

GASKET
GASKET, LENS

35713-01D00-000 3571301D00000

$11,97

Unit Price

SOCKET

35718-12D00-000 3571812D00000

$44,97

Unit Price

SOCKET

35718-01D00-000 3571801D00000

Not available

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

DISCONTINUE
CUSHION

35733-10D00-000 3573310D00000

Not available

WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000 0916006077000

$3,97

Unit Price

RR COMB LAMP CUSHION
CUSHION

09320-09009-000 0932009009000

$7,97

Unit Price

SPACER 6.5 X 9 X 8.5

09180-06152-000

09180-06262-000

$4,97

Unit Price

NUT 6MM

08316-16066-000

08319-31067-000

$3,97

Unit Price

08310-0006A
NUT

08310-00063-000

Not available

BRACKET, LICENSE PLATE

35927-01D10-000 3592701D10000

Not available

CUSHION

09321-06028-000 0932106028000

Not available

12A

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

WASHER(6.5X20X1.6)

09160-06020-000

09160-06066-000

$3,97

Unit Price

WASHER 6.5X20X1.6

09160-06059-000

09160-06088-000

$2,97

Unit Price

WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000 0916006077000

$3,97

Unit Price

NUT

08316-26066-000

08316-10067-000

$3,97

Unit Price

14A

08310-0006A
NUT

08310-00063-000

Not available

REFLECTOR ASSY, RR
REFLEX REFLECTOR, REAR SIDE

35970-24D60-000 3597024D60000

$31,97

Unit Price

DISCONTINUE
REFLEX REFLECTOR, REAR SIDE

35970-00A10-000 3597000A10000

Not available

35977-01D11
BRACKET, REAR SIDE RR, RH

35977-01D10-000 3597701D10000

Not available

DISCONTINUE
BRACKET REAR SIDE RR

35977-01D11-000 3597701D11000

Not available

35977-01D11
BRACKET, REAR SIDE RR, LH

35978-01D10-000 3597801D10000

Not available

SCREW

02142-05123-000

02142-0512A-000

$2,97

Unit Price

NUT

08316-26055-000

08316-2005A-000

$3,97

Unit Price

18A

08310-0005A

08310-00053-000

Not available

REFLECTOR ASSY, RR
REFLEX REFLECTOR ASSY, REAR

35970-24D60-000 3597024D60000

$31,97

Unit Price

DISCONTINUE

35970-00A21-000

Not available

NUT

08316-26055-000

08316-2005A-000

$3,97

Unit Price

20A

08310-0005A

08310-00053-000

Not available

BRACKET, RR RR
BRACKET, REAR REFLEX REFLECTOR

35974-01D00-000 3597401D00000

$10,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

08321-0106A
LOCK WASHER

08321-31064-000

Not available

NUT

08316-26065-000

08316-10067-000

$3,97

Unit Price

24A

08310-0006A
NUT

08310-00063-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
