CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI GS-E 500 1994

CYLINDER

Item numbers

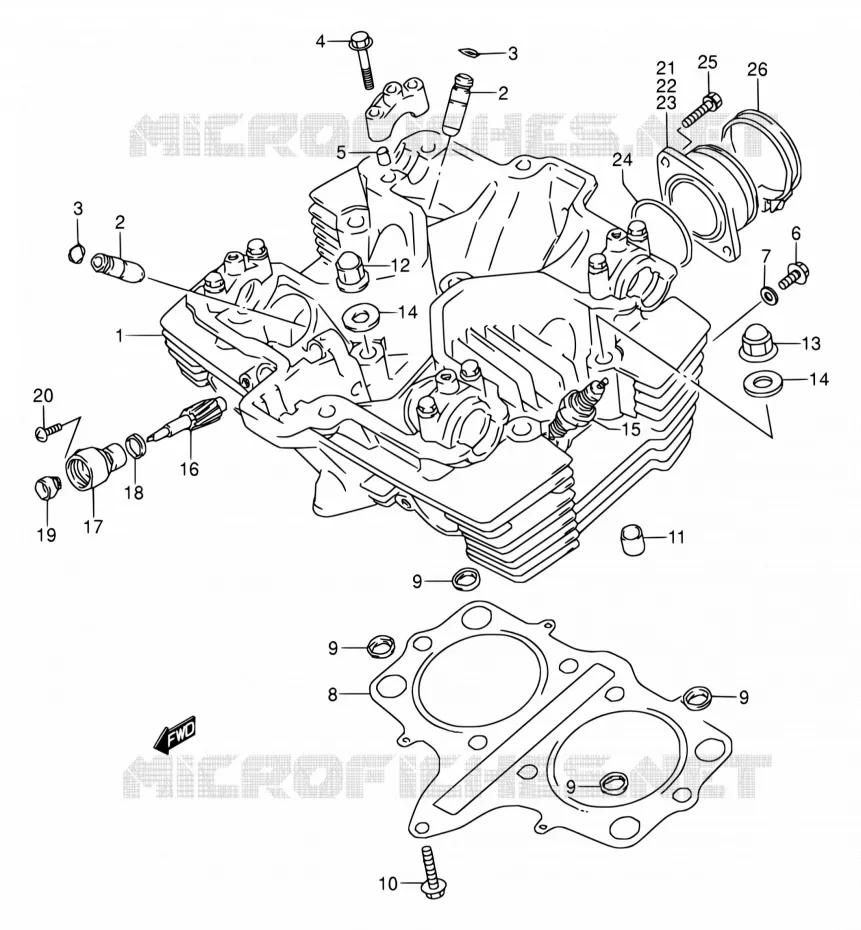

CYLINDER HEAD Suzuki MOTO 500 GS-E 1994 GS500E R/GS500EU R (E02,E04,P09,E18,E21,E22,E24,E25,E34,E37,E39,E53)
1
1
2
2
3
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
1
HEAD ASSY, CYLINDER

11100-01D01-000   1110001D01000

1110001D01000
Not available
1
HEAD ASSY, CYLINDER

11100-01D10-000   1110001D10000

1110001D10000
Not available
2
GUIDE,INTAKE VALVE<br />.GUIDE, VALVE
GUIDE, INTAKE VALVE
.GUIDE, VALVE

11115-45740-000   1111545740000

1111545740000

Unit Price

3
RING,SNAP<br />.RING, VALVE GUIDE
RING, SNAP
.RING, VALVE GUIDE

09381-10003-000   0938110003000

0938110003000

Unit Price

4
BOLT, CAM SHAFT HSG
.BOLT (6X39)

09103-06071-000   0910306071000

0910306071000

Unit Price

5
PIN(8X11)<br />.PIN
PIN(8X11)
.PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

6
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

7
.GASKET
.GASKET

09168-06023-000   0916806023000

0916806023000
Not available
8
GASKET, CYLINDER HEAD

11141-01D10-000  

11141-01D11-000
 1114101D10000

Unit Price

9
O RING, HEAD GASKET
O RING, CYLINDER HEAD

11143-06B00-000   1114306B00000

1114306B00000

Unit Price

10
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

11
DOWEL PIN<br />PIN
DOWEL PIN
PIN

04211-11189-000   0421111189000

0421111189000

Unit Price

12
NUT
NUT

09159-10069-000   0915910069000

0915910069000

Unit Price

13
CYLINDER HEAD NUT

09159-10033-000  

09159-10026-000
 0915910033000

Unit Price

14
GASKET 10.2X20X2.3<br />GASKET
GASKET 10.2X20X2.3
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price

15
DPR8EA-9, NGK
SPARK PLUG (NGK, DPR8EA-9)

09482-00334-000   0948200334000

0948200334000

Unit Price

15
SPARK PLUG (ND, X24EPR-U9)

09482-00335-111   0948200335111

0948200335111
Not available
16
GEAR,TACHOMETER DRIVEN<br />GEAR, TACHO. DRIVEN (NT:10)
GEAR, TACHOMETER DRIVEN
GEAR, TACHO. DRIVEN (NT:10)

26431-45002-000   2643145002000

2643145002000

Unit Price

17
SLEEVE,TACHOMETER DRIVE GEAR<br />SLEEVE
SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000   2644149000000

2644149000000

Unit Price

18
BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000   2645145000000

2645145000000

Unit Price

19
TACHO DRVN OIL SEAL<br />OIL SEAL
TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000   0928905002000

0928905002000

Unit Price

20
LOCK PLATE SCREW<br />SCREW
LOCK PLATE SCREW
SCREW

09128-05101-000   0912805101000

0912805101000

Unit Price

21
PIPE ASSY, INTAKE

13110-01D00-000  

13101-01D00-000
 1311001D00000

Unit Price

22
PIPE, INTAKE NO.1

13110-01D10-000   1311001D10000

1311001D10000
23
PIPE, INTAKE NO.2

13120-01D10-000   1312001D10000

1312001D10000
Not available
24
O RING

09280-40003-000  

09280-40020-000
 0928040003000

Unit Price

25
SCREW

02112-36203-000  

02112-3620A-000
 0211236203000

Unit Price

26
CLAMP

09402-54207-000   0940254207000

0940254207000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
