REAR CALIPER (MODELE P / R / S / T)

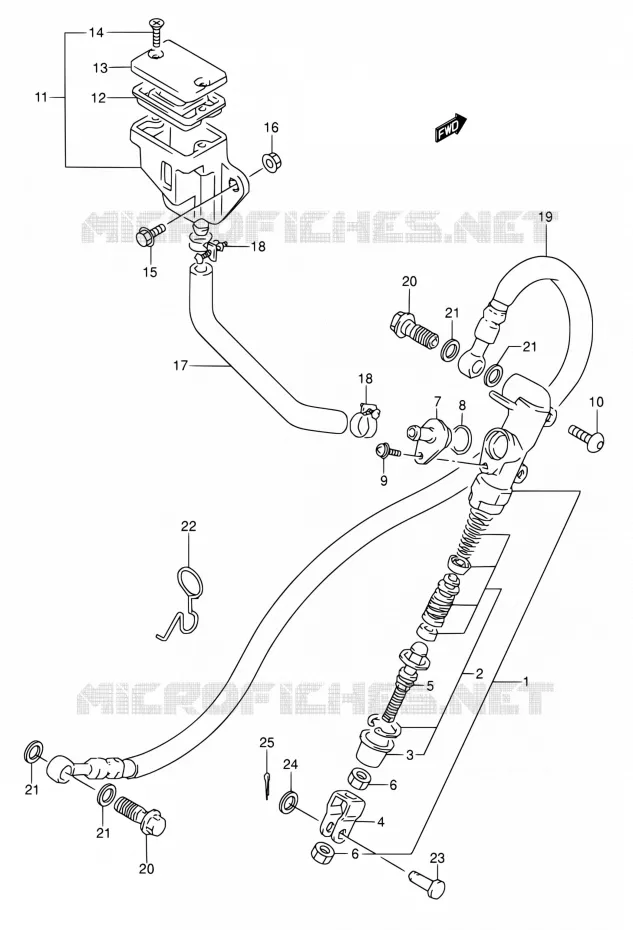

REAR BRAKE MASTER CYLINDER FOR SUZUKI GS-E 500 1994

OPTIONS

Item numbers

CYLINDER ASSY, RR MASTER
CYLINDER ASSY, REAR MASTER

69600-01D00-000 6960001D00000

$301,97

Unit Price

PISTON/CUP SET

69600-04820-000

69600-04821-000

$87,97

Unit Price

..BOOT

69691-00A00-000 6969100A00000

$8,97

Unit Price

.YOKE

69692-19A00-000 6969219A00000

$21,97

Unit Price

.ROD, PUSH

69670-01D00-000 6967001D00000

$28,97

Unit Price

.NUT

69693-05A00-000 6969305A00000

$3,97

Unit Price

.CONNECTOR

69672-00A00-000 6967200A00000

$8,97

Unit Price

O RING CONECTOR
.O RING

69686-34200-000 6968634200000

$6,97

Unit Price

SCREW

02112-74123-000

02112-0412A-000

$2,97

Unit Price

SCREW(6X25)
SCREW

09139-06057-000 0913906057000

$3,97

Unit Price

TANK ASSY, RR RESERVOIR
TANK ASSY, REAR RESERVOIR

69740-01D02-000 6974001D02000

$102,97

Unit Price

.DIAPHRAGM

59667-04700-000 5966704700000

$11,97

Unit Price

.CAP

59669-05D00-000 5966905D00000

$19,97

Unit Price

.SCREW

69689-04A00-000 6968904A00000

$2,97

Unit Price

01550-0616A
BOLT

01550-06163-000

Not available

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

HOSE, RESERVOIR TANK

69731-01D01-000

69731-01D02-000

$24,97

Unit Price

CLAMP

09400-16302-000

09400-16304-000

$7,97

Unit Price

DISCONTINUE
HOSE, REAR BRAKE

69480-01D10-000 6948001D10000

Not available

UNION

09360-10039-000

09360-10061-000

$10,97

Unit Price

WASHER
WASHER (10X15X1.5)

09161-10009-000 0916110009000

$3,97

Unit Price

GUIDE, BRAKE HOSE

69243-01D00-000 6924301D00000

Not available

09200-06037-000

09200-06068-000

$7,97

Unit Price

WASHER

08322-01063-000

08322-0106A-000

$3,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
